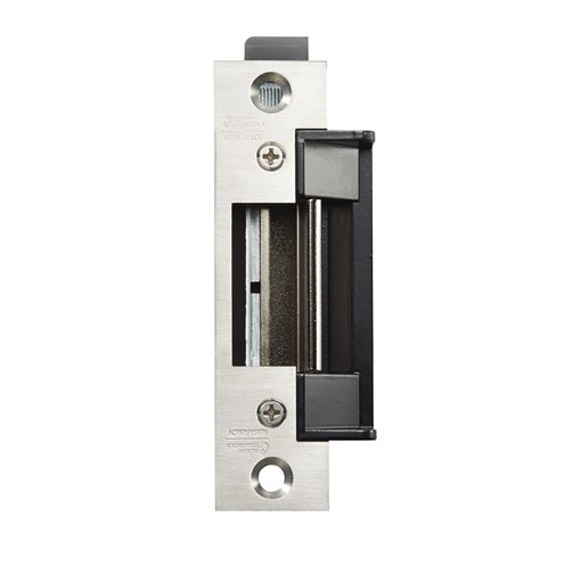

Alarm Controls AES-100 Grade 1 Dual-Voltage Electric Strike

SKU # AL/AES100

Read Review(s) | Log in to Review

Product Features:

  • For use with 5/8" and 3/4" throw cylindrical locksets
  • Strike depth: 1-1/2"
  • Field selectable, FailSecure/Fail Safe
  • Non-handed for easy installation
  • Mounting kit includes two 4-7/8" stainless steel faceplates (one round corner and one square corner)

Options

  • STR00004 7-15/16" round corner faceplate, available separately
US$123.60

Description:

Description:

The Alarm Controls AES-100 is a Grade 1 dual-voltage electric strike for heavy-duty applications. For use with cylindrical locksets, mortise latch or mortise exit devices.

Specifications:

Specifications:

Certifications & Listings:

  • BHMA Grade 1
  • UL 1034 burglary resistant listed

Holding Force:

  • Static Strength: 1500 lbs
  • Dynamic Strength: 70 ft lbs

Endurance: UL tested to 250,000 cycles

Electrical:

  • Current draw: 130mA at 12 VAC, 70mA at 24VAC; 210mA at 24 VDC
  • Dual-voltage 12/24 VAC/VDC; continous duty operation on DC
