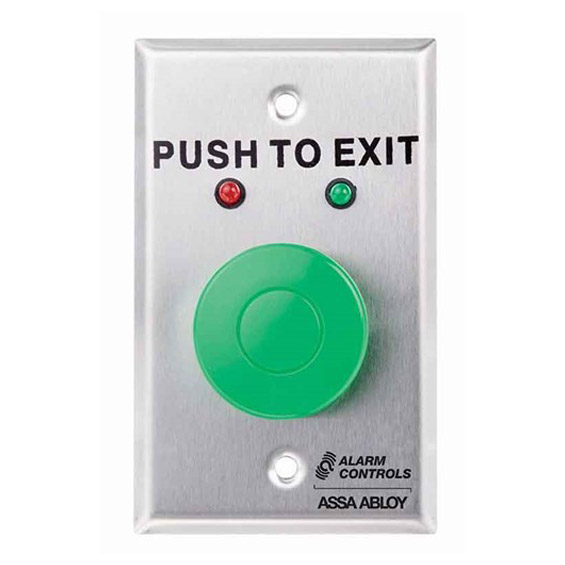

Alarm Controls TS1 1-1/2 GreenPush to Exit Button

SKU # AL/TS1

Product Features:

  • Switch mounted on single gang wall plate with 430 stainless steel finish
  • Large 1-1/2" green mushroom button
  • Plate labeled “PUSH TO EXIT” for easy to follow egress instructions
  • 1/4" red and green LED status indicators; illuminated with hi-brightness LED
  • Momentary action switch

Options

  • TS-1L with alternate action switch
  • TS-1R with red mushroom push button
  • Finishes: multiple plate finishes available
  • Other contact combinations available as custom part
US$88.80

Description:

Description:

The Alarm Controls TS1 is a single gang request to exit station with push button and LEDs provides a convenient way to monitor the lock station. LED status indicators provide an at-a-glance visual of system status.

Specifications:

Specifications:

Certifications & Listings:

  • UL 294 listed
  • CSA Certified components

Electrical:

  • One N/O and N/C contact
  • Contacts rated 10A at 35 VDC or 120 VAC
  • Switch connection via screw terminals
  • Switch depth behind plate: 2"
  • LEDs operates on 12 or 24 VAC/VDC, independently wired

Operating Temperature: -13F to +158 F (-25 to 70 C)
