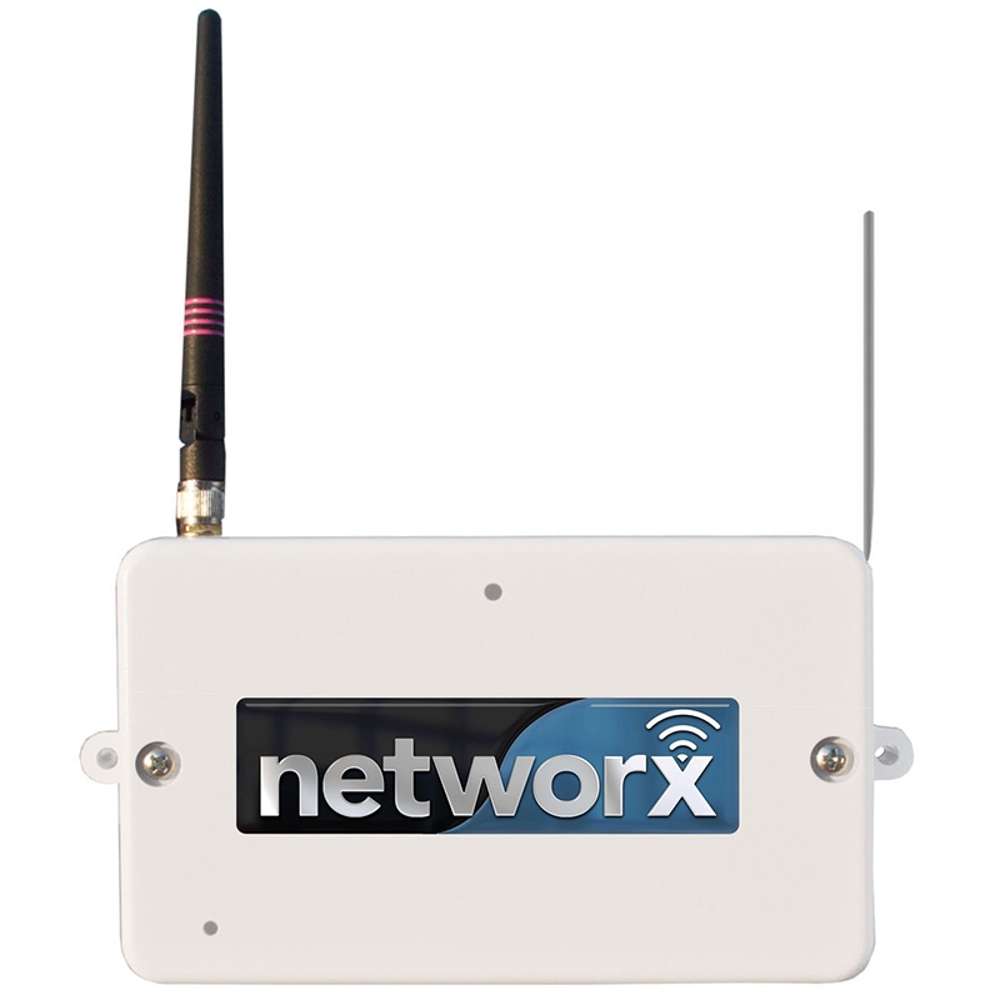

Alarm Lock AL-IME Networx Ethernet Gateway

SKU # AA/AL-IME

Alarm Lock AL-IME Networx Ethernet Gateway

AL-IME Hardwire Gateway Interface Module, supports up to 63 Networx Locks using hardwired connection to the network via RJ45 Ethernet cable. One antenna. Powered with Class 2, 6VAC transformer (supplied). Ceiling or wall mountable.

Features:

  • Installable in minutes
  • Installable in minutes
  • Come in styles to fit any door or exit trim
  • Grade 1 durable, vandal-resistant, indoor/outdoor models
  • Trusted by more leading retailers, firms, hospitals, schools & airports
US$331.74

Description:

Description:

Alarm Lock AL-IME Networx Ethernet Gateway

Trilogy Networx Locks eliminate door-to-door programming and audit trail retrieval by communicating wirelessly via Ethernet or 802.11B/G, while providing all original Trilogy standalone lock’s functionality. They provide a quick, easy, economical access system with advanced features & functions, like automatic schedules, event logs and support for 2000 doors and 5000 existing Prox. ID Cards/Badges, but with no wires to run, and no access panels or power supplies to buy or install. At its simplest, it's one Grade 1 durable wireless lock per door, installed in about an hour, all communicating to a single Gateway (each gateway controls up to 63 locks), networked to any non-dedicated Windows-based PC. In addition to Wireless Trilogy Networx’ unsurpassed battery-life, exceeding 5 years, they feature new network-wide capabilities, executed from any lock or the network's PC, including emergency priority global lockdown or unlock deployed in seconds, and you can activate (non-priority) system-wide free-passage or locking modes from the PC. For existing Trilogy installations, original standalone and new Trilogy Networx locks can seamlessly share one common database hosted on free Alarm Lock DL-WINDOWS software.

Trilogy Networx Locks communicate wirelessly via Ethernet or 802.11B/G for a comprehensive wireless networked door access control system, eliminating door-to-door programming and audit trail retrieval and providing all standalone Trilogy lock functionality plus new network-wide global emergency lockdown/unlock commands

Unsurpassed 5-year+ battery life,using 4 C-cell batteries (supplied)**. (Automatic battery status reports at the PC; visual and audible low-battery status indicators at lock(s).

Trilogy Networx and gateway modules have an integral transceiver for highly-efficient 900MHz bidirectional communications, for longer range and less interference than with more common 2.4GHz spread spectrum devices. Alarm Lock devices require NO wiring; NO splitters or repeaters; NO hardwiring to the host/server; NO extra power supplies; and NO access controller/panels.

In 10 seconds, activate emergency global lockdown/unlock from the Networx PC or any Networx lock activated from any lock, with or without the PC online by any authorized user with global permissions (If desired, locks may be selectively programmed to be excluded from emergency global functions, i.e., they will ignore the lock/unlock command.)

System-wide free-passage enable or disable, can likewise be activated from the Networx PC

Locks support up to 5000 users with 3-6 digit numeric PIN codes and PDL-Series also support prox ID card users (virtually all HID™ format proximity technology ID cards, fobs, credentials.)

On demand, in seconds, wirelessly change users, schedules, lock features or retrieve 35,000 events/lock from any networked PC. (Note: Transaction processing time is dependent upon system capacity, the more locks/gateways and the more data to be up/downloaded, the longer the time.)

Unattended programming updates or event log retrievals can be scheduled to run automatically, saving manpower and productive time.

Seamless upgrade path for original Trilogy users: Intermix with existing Trilogy standalone lock installations and share one database and familiar Trilogy lock and software functions: Trilogy Wireless Networx Locks seamlessly integrate in an existing Alarm Lock Trilogy standalone door access system and share the same single DL-WINDOWS database (requires v4.0.1 or higher). Existing Trilogy users can easily add one wireless Networx Lock, or as many as two thousand, to an existing system seamlessly with no downtime.

Gateway Supports up to 63 Networx Lock, 7 AL-IME2-EXP Expanders and is Addressable up to 99 Groups
Each Group Consists of One Version 2 Gateway and up to 7, AL-IME2-EXP Expanders
The AL-IME2-POE Gateway is Powered by 1 Power Over Ethernet Cable
Networ Range Gateway/Expander to Locks Clear Field Range 500 Foot
Typical Indoor Range, Networx 75 to 175 Foot
ArchiTech Networx 50 to 125 Foot
