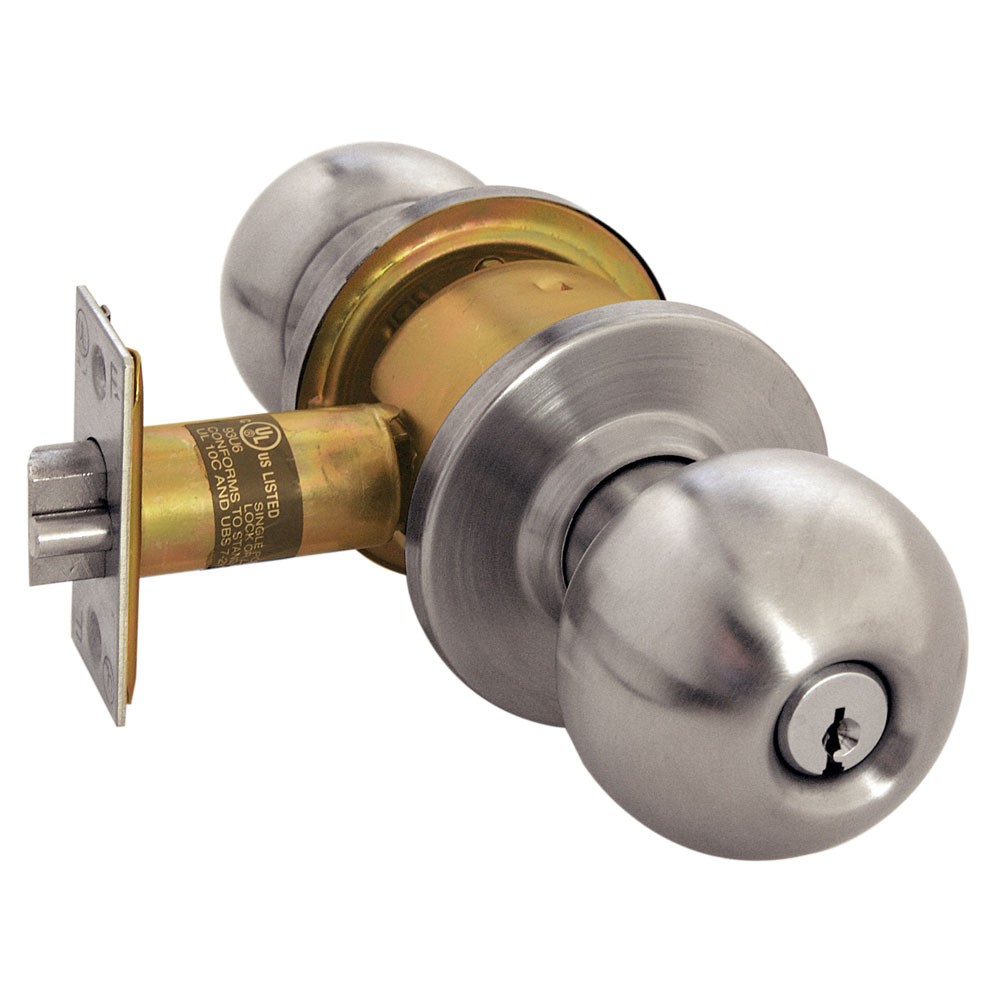

Arrow RK Series Grade 2 Locksets

SKU # ARRK

The RK Series cylindrical locksets are an economical value for a variety of application. Perfect for multi-family housing markets, as well as light commercial applications.

Pricing varies based on options selected below.
US$26.13

Specifications:

Specifications:

  • Construction: Cold rolled steel with zinc dichromate finish for corrosion resistance. Requires standard 1-1/8" (53.97mm) bore through door.
  • Backset: 2-3/8" (60.31mm) or 2-3/4" (69.85mm)
  • Door Thickness: Fits 1-3/8" (34.93mm) to 1-3/4" (44.45mm) doors standard.

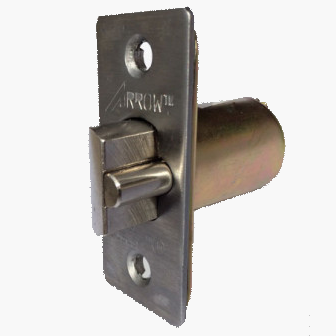

  • Latch: Brass 1/2" (12.7mm) throw, UL Listed, guarded latchbolt on all locking functions
  • Latch Front:  1" x 2-1/4" (25.40mm x 57.15mm) for 2-3/8" backset (60.32.mm) or 1-1/8" x 2-1/4" for 2-3/4" (69.85mm) backset.
  • Exposed Trim: RK Roses are wrought brass 2-1/2" (63.5mm) diameter. Total projection from face of door is 2-3/4" (69.85mm).
  • Strike: 4-7/8" ANSI (123.83mm), 2-3/4" (69.85mm) T strike, or 2-1/4" (57.15mm) full lip strike.

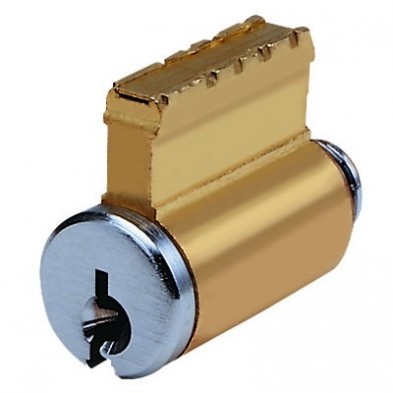

  • Cylinder: Conventional - Solid brass 6 pin. Arrow "A" keyway standard. C keyway optional. Interchangeable Core – Lockset prepared to use with 6 or 7 pin interchangeable core. Will accept cores manufactured by Arrow, Best, Falcon, Medeco Keymark, ASSA, and others.*

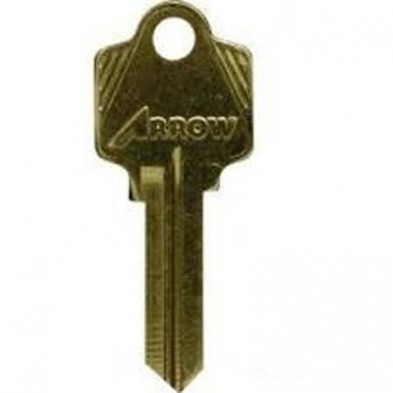

  • Keys: 2 brass keys
  • Handing: Non-handed
  • Finishes: US3, US32D
  • Warranty: Five Year Mechanical Warranty
