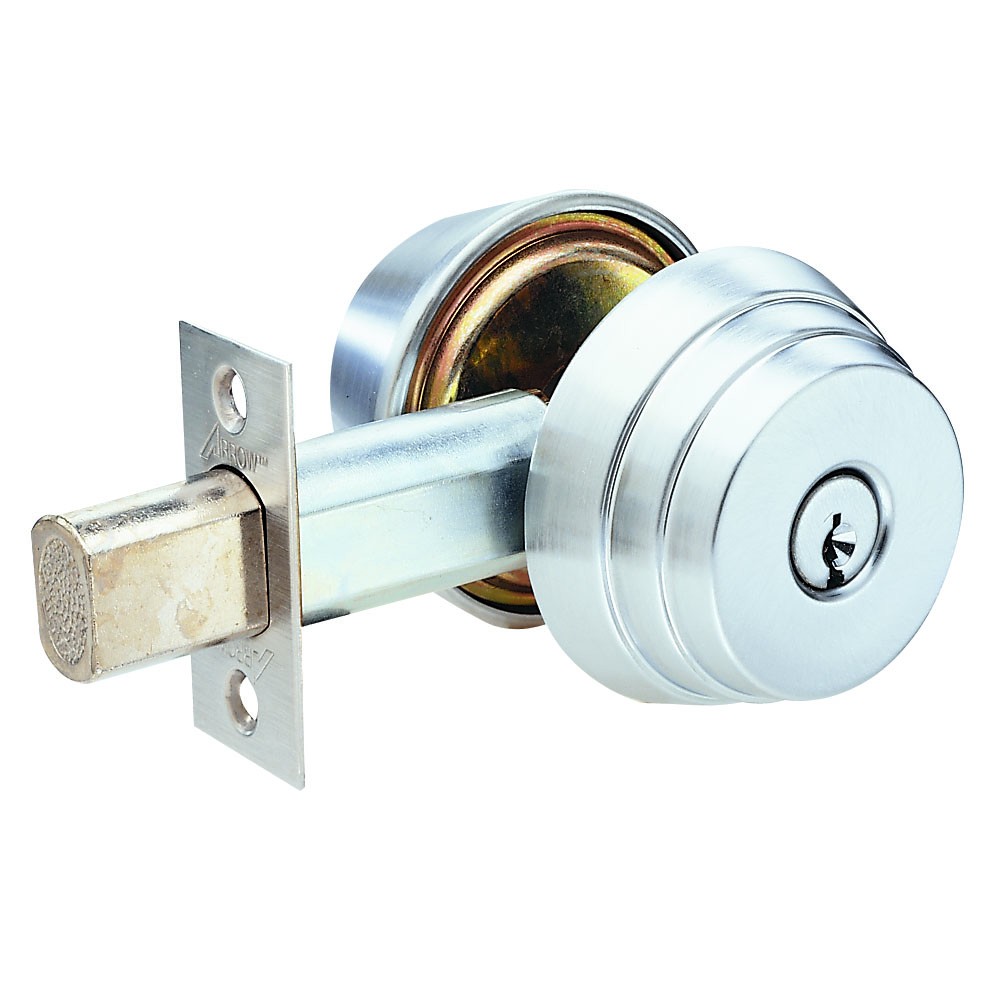

Arrow Standard Duty Deadbolt Locks

SKU # E60

Arrow E Series deadlocks are unsurpassed for value, quality and durability. Our tamper resistant rotating wrench-proof collar, steel deadbolt with hardened steel pin insert and concealed screws are security features that have made the E Series the most specified deadlock in its class.

Pricing varies based on options selected below.
US$37.80

Specifications:

Specifications:

  • Housing: Two-piece housing, with free spinning outer ring to prevent wrenching. Concealed mounting screws standard on double cylinder functions.
  • Thru-bolting: supplied with two 1/4" (6.35 mm) steel thru-bolts.
  • Deadbolt: 1" (25.40 mm), solid steel deadbolt throw with hardened steel pin insert.
  • Backset: 2-3/8" (60.32 mm), 2-3/4" (69.85 mm).
  • Deadbolt fronts:
  • 2-1/4" (57.15 mm) x 1" (25.40 mm) standard for 2-3/8" (60.32 mm) backset,
  • 2-1/4" (57.15 mm) x 1-1/8" (28.57 mm) standard for 2-3/4" (69.85 mm) backset. Drive-in deadbolts are available.
  • Doors: 1-3/8" (34.925 mm) to 1-3/4" (44.45 mm) thick standard.
  • Strikes: Supplied standard with #346 security strike for metal frame.
  • Handing: All functions are reversible.
  • Cylinder, Standard: Solid brass, Arrow “A” deyway, drilled for 6 pins, pinned to 5 for stock. E41 is available 5 pin. Supplied with two keys.  Available in Schlage CS keyway and other competitive keyways.
  • Cylinder Options: Accepts 6 or 7 pin interchangeable cores. Supplied less cores. Will accept Best™ or Falcon™ type cores.
  • Finish: US3, US5A, US26D.
  • E41 is available in US3 and US26D.
