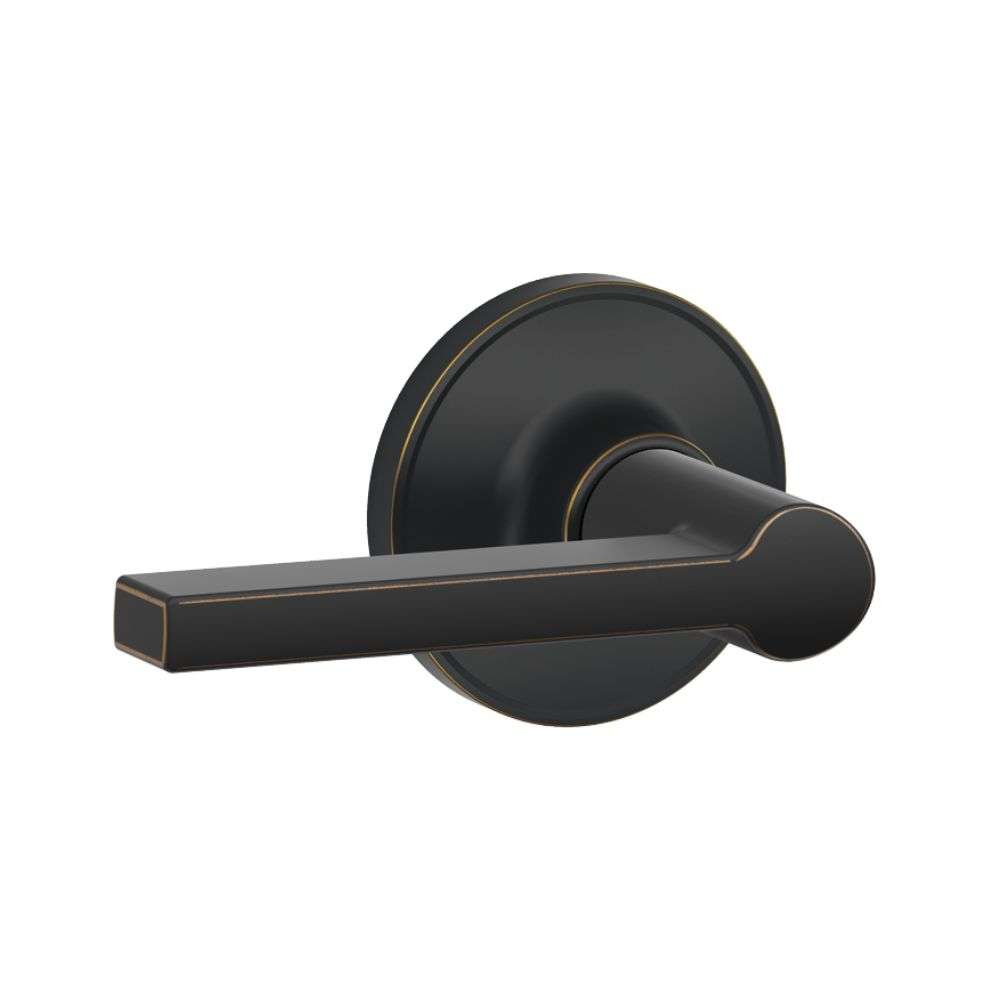

Dexter By Schlage J10-SOL Solstice Passage Lever from the J-Series

SKU # SC/J10-SOL-622

Dexter By Schlage J10-SOL Solstice Passage Lever from the J-Series

The Solstice Lever is part of the Schlage J-Series (Formerly Dexter)

Please See Part Number to Confirm Correct Choice


- Function: Passage (J10).

Various Finishes Available

US$29.63
Comments or instructions

Description:

Description:

Dexter By Schlage J10-SOL Solstice Passage Lever from the J-Series

Solstice Lever by Schlage J-Series (Formerly Dexter)

The Schlage Solstice is a Grade 3 lever that is part of the Schlage J-Series Collection.

Function: The Schlage Solstice Lever is available in Passage (J10 SOL) function.
Finish: The Schlage Solstice Lever comes in Satin Nickel (619), Polished Chrome (625), Satin Chrome (626), and Aged Bronze (716) finish.
Handing: The Schlage Solstice Lever is a non-handed (reversible) lever.

Door Range: 1-3/8" - 1-3/4" (35mm - 44mm).
Backset: Dual Backset Latch; adjustable for 2-3/8" or 2-3/4" backset.
Strike: 1-5/8" x 2-1/4" Radius Corner Faceplate, Full Lip, No Box.
Latch: 1" x 2-1/4", 1/2" (13mm) throw standard.
Dual Option Latch: 1" x 2-1/4", 1/4" round faceplate and drive-in latch (J10 and J40).
Triple Option Latch: 1" x 2-1/4" Square Corner, 1/4" round faceplate and drive-in latch (J54).

Specifications:

Specifications:

Click here for Schlage Residential Catalog

Specification Data:

  • Low noise design with ripple as low as 240mV p-p.
  • 115 or 230 VAC input.
  • Power supply outputs are Class 2 power limited when used with PTC polyswitch distribution boards.
  • Expandable up to 16 independently controlled power limited outputs.
  • Available with configurable access control input/outputs with fire trigger in either PTC or with fuse/dry contact option, fire relay only, or configurable outputs with fire relay input.
  • LED indicators and form "C" contacts for supervision.
  • Supports up to two (2) sealed gel, AGM or wet lead acid batteries.

Operating Temperature: -4 to +122F [-20 to +50C].

Dimensions: 14" x 14" x 4-3/4" enclosure.

Shipping Weight: 12.7 lbs [5.76kg].

Literature:

Product Videos:

Product Videos:

Reviews

Reviews

There is no review yet for this item.
