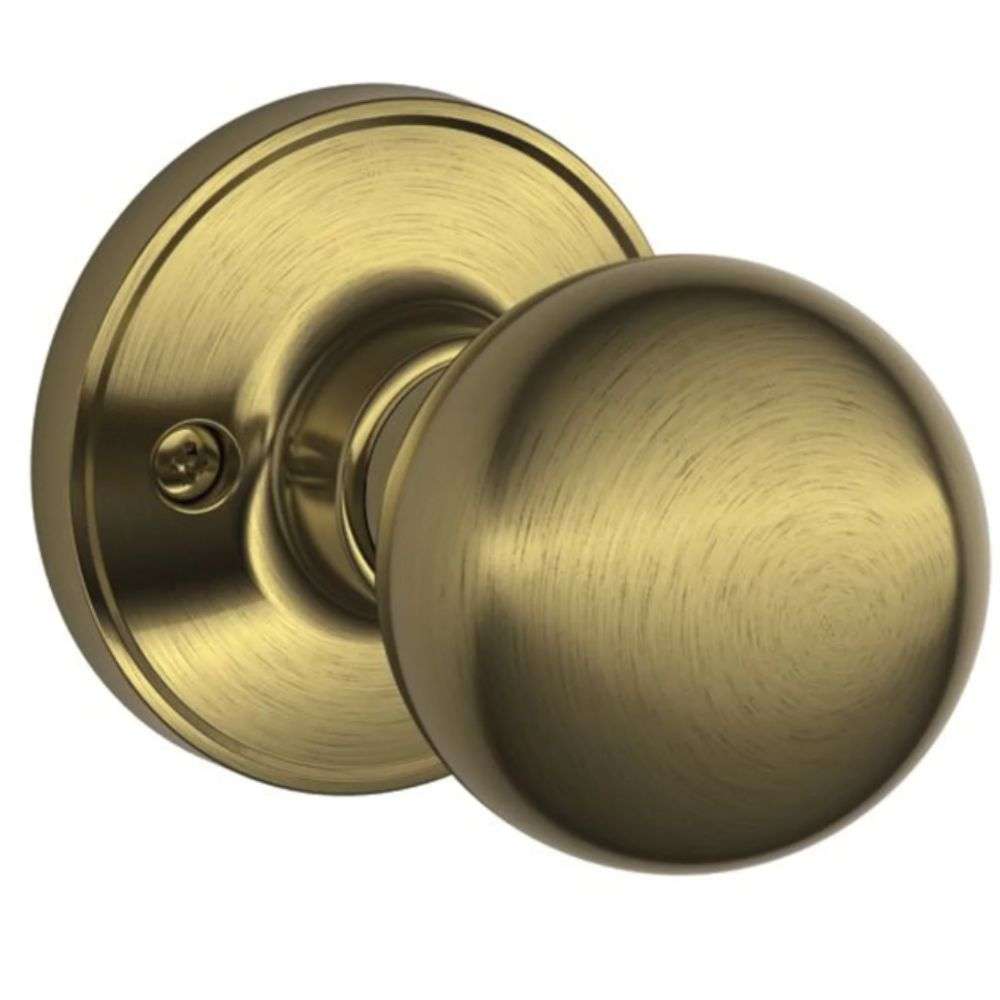

Dexter By Schlage J-Series Corona Grade 3 Knobset

SKU # SC/J170-CNA-609

Dexter By Schlage J-Series Corona Grade 3 Knobset

The Corona Knob is part of the Schlage J-Series (Formerly Dexter)

Please see Part Number for Correct Product Choice


Function: Single Dummy.
Various Finishes Available

US$9.70
Comments or instructions

Description:

Description:

Dexter By Schlage J-Series Corona Grade 3 Knobset

Corona Knob by Schlage J-Series (Formerly Dexter)

The Schlage Corona is a Grade 3 knob that is part of the Schlage J-Series Collection.

Function: The Schlage Corona Knob is available in Passage (J10 CNA), Privacy (J40 CNA), Keyed Entry (J54 CNA), and Single Dummy (J170 CNA) function.
Finish: The Schlage Corona Knob comes in Brass (605), Antique Brass (609), Satin Nickel (619), Antique Nickel (620), Polished Chrome (625), Satin Stainless Steel (630), and Aged Bronze (716) finish.

Door Range: 1-3/8" - 1-3/4" (35mm - 44mm).
Backset: Dual Backset Latch; adjustable for 2-3/8" or 2-3/4" backset.
Strike: 1-5/8" x 2-1/4" Radius Corner Faceplate, Full Lip, No Box.
Latch: 1" x 2-1/4", 1/2" (13mm) throw standard.
Dual Option Latch: 1" x 2-1/4", 1/4" round faceplate and drive-in latch (J10 and J40).
Triple Option Latch: 1" x 2-1/4" Square Corner, 1/4" round faceplate and drive-in latch (J54).

Specifications:

Specifications:

Click here for Schlage Residential Catalog

Specification Data:

  • Low noise design with ripple as low as 240mV p-p.
  • 115 or 230 VAC input.
  • Power supply outputs are Class 2 power limited when used with PTC polyswitch distribution boards.
  • Expandable up to 16 independently controlled power limited outputs.
  • Available with configurable access control input/outputs with fire trigger in either PTC or with fuse/dry contact option, fire relay only, or configurable outputs with fire relay input.
  • LED indicators and form "C" contacts for supervision.
  • Supports up to two (2) sealed gel, AGM or wet lead acid batteries.

Operating Temperature: -4 to +122F [-20 to +50C].

Dimensions: 14" x 14" x 4-3/4" enclosure.

Shipping Weight: 12.7 lbs [5.76kg].

Literature:

Product Videos:

Product Videos:

Reviews

Reviews

There is no review yet for this item.
