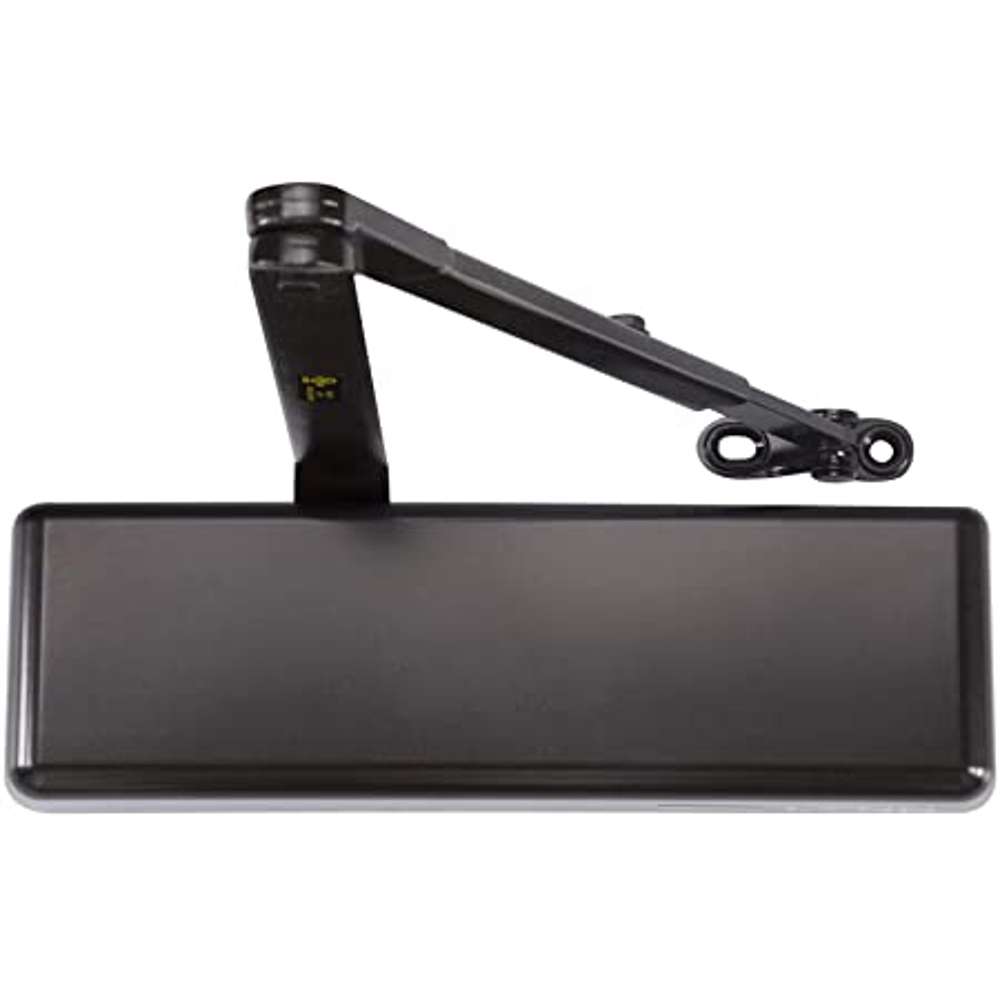

Dorma 8916-DS-FC-SN1-695 Heavy Duty Door Closer
Versatile, durable, and reliable, featuring modern styling for institutional or high-traffic commercial applications.
The Dorma 8916 is designed to meet the demanding requirements in institutional or high traffic applications. Can be used on doors that weigh up to 180 pounds, measure up to 96 in height and up to 48 in width on interior doors and 42 in width on exterior doors.
The 8900 door closer series designed to provide a highly flexible door control system suitable for institutional or high-traffic commercial applications. Its hydraulic control system features a full range spring power adjustment and backcheck, along with a narrow projection full cover and flatform style arm.
Controlled Opening with Backcheck Feature
The 8900 Series hydraulic backcheck feature protects doors and their adjacent structures. It's valve adjustment regulates backcheck intensity. In addition, a backcheck positioning adjustment for parallel arm applications provides a consistent range similar to regular and top jamb applications.
Long Term Performance
The 8900 Series heavy-duty, 10 million cycle closers represent the latest in door control technology, combining over a quarter century of proven performance with its hydraulic control sytem and modern architecturally styled aesthetics. It results in the perfect combination of durability, reliability, and appearance.
Barrier-Free
The 8900 Series, with the fully adjustable spring, also meets barrier-free accessibility requirements.
Features and Benefits:
- Door Saver Cushion Parallel Arm.
- Long term performance.
- Adjustable Spring Size 1-6.
- Meets barrier-free requirements.
- Adjustable backcheck.
- Corrosion-resistant aluminum body.
- ANSI/BHMA A156.4 Grade 1 Certified.
- Available in Dark Bronze Painted (695) finish.
Parallel Arm (Push Side)
Heavy-duty parallel arm with spring-assisted dead stop function hold open. Units can be installed to achieve either stop or stop and hold open at 85°, 90°, 100°, and 110°. Maximum opening is 110° (conditions permitting). Arm is non-handed.
Sex Nuts
SN1 sex nuts and machine screws supplied standard for 1-3/4 thick door.
Special Orders: For pricing on any Dorma Door Closers not on this page please contact Taylor via e-mail (sales@taylorsecurity.com) or call +1 (800) 676-7670.
