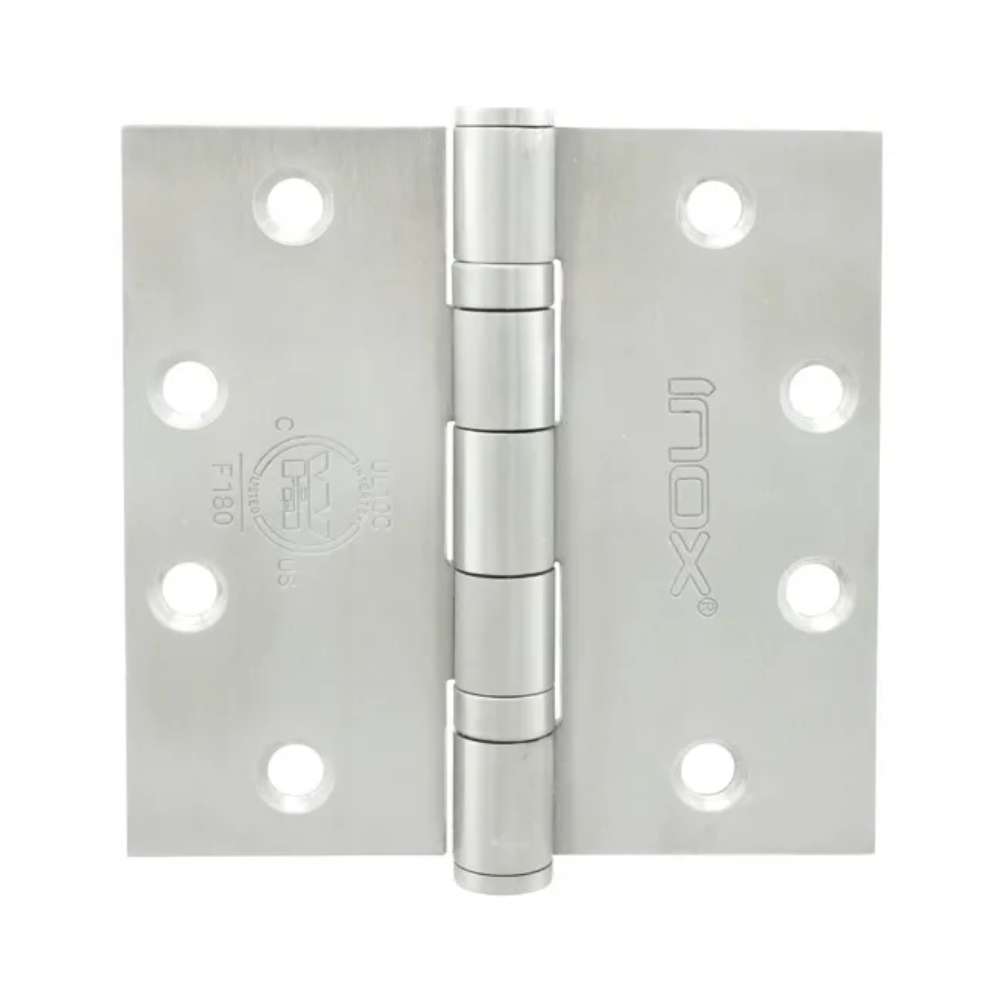

Inox HG5-107SP4532D Stl Standard Sprng Hinge 4-1/2x4-1/2
INOX HG5107 and HG8107 hinges with adjustable spring tension are provided in either ANSI A81071F steel-based or ANSI K51071F stainless-steel based material and are 3
hour fire rated, full mortise, single acting spring hinges with square corners. They will allow maximum degree of swing. For Doors under 70 Ibs. and not exceeding 3' x 7' x 1-3/4' use 1 each HG8107SP (or HG5107SP) and 2 each HG8112 (or HG5112). For Doors up to 160 Ibs. use 3 each HG8107SP (or HS5107SP).
- ANSI Type A8107-1F, K81071F, K51071F
- ANSI/UL10B and UL10C Fire Rated up to 3 Hours
- Meets USA Federal Spec. #FF-H-116C
- C-UBC California Uniform Builders Code-2001
- NFPA80 - National Fire Protection Association - 1999
- NFPA101 - National Fire Protection-Life Safety - 2000
