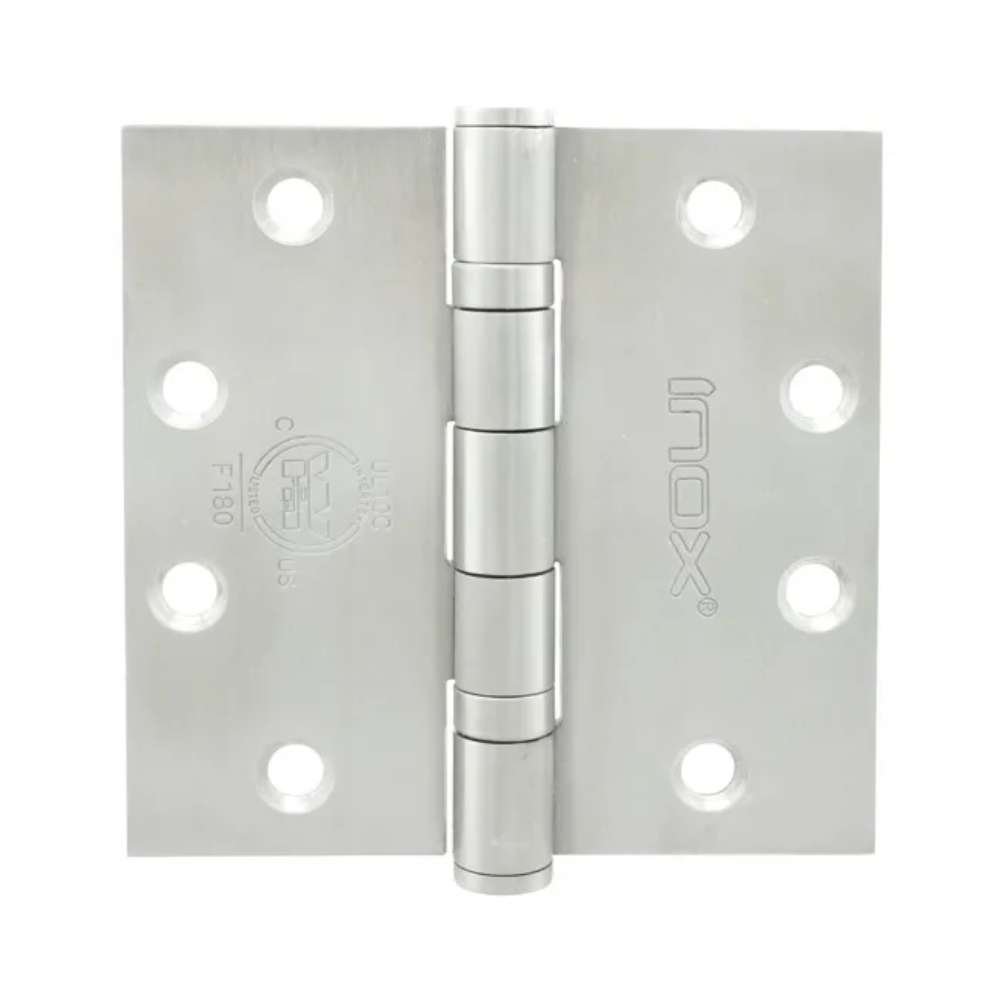

Inox HG5-1124332D Stl Hinge Full Mort Standard 2 Bll 4x4
- INOX offers a variety of Plain Bearing, Full Mortise, Spring, and Concealed hinges to meet your home or project requirements
- Non-removable pin options on many hinges
- Code compliance to ensure safety and security
- INOX hinges include a 10 year warranty
Full Mortise Hinges
Two Anti-friction Ball Bearing
Material: Steel
Series: HG8112
Sizes:
- 4" (102mm) x 4" (102mm) (0.13" Ga.)
- 4-1/2" (114mm) x 4" (102mm) (0.134" Ga.)
- 4-1/2" (114mm) x 4-1/2" (114mm) (0.134" Ga.)
- 5" (127mm) x 4-1/2" (114mm) (0.134" Ga.)
NRP: All HG8112 sizes except 4" x 4" available with non-removable pins
Radius Corner: 4" x 4" available with 1/4" radius corner
Material: Stainless Steel
Series: HG5112
Sizes:
- 4" (102mm) x 4" (102mm) (0.13" Ga.)
- 4-1/2" (114mm) x 4" (102mm) (0.134" Ga.)
- 4-1/2" (114mm) x 4-1/2" (114mm) (0.134" Ga.)
NRP: All HG5112 sizes except 4-1/2" x 4" available with non-removable pins
