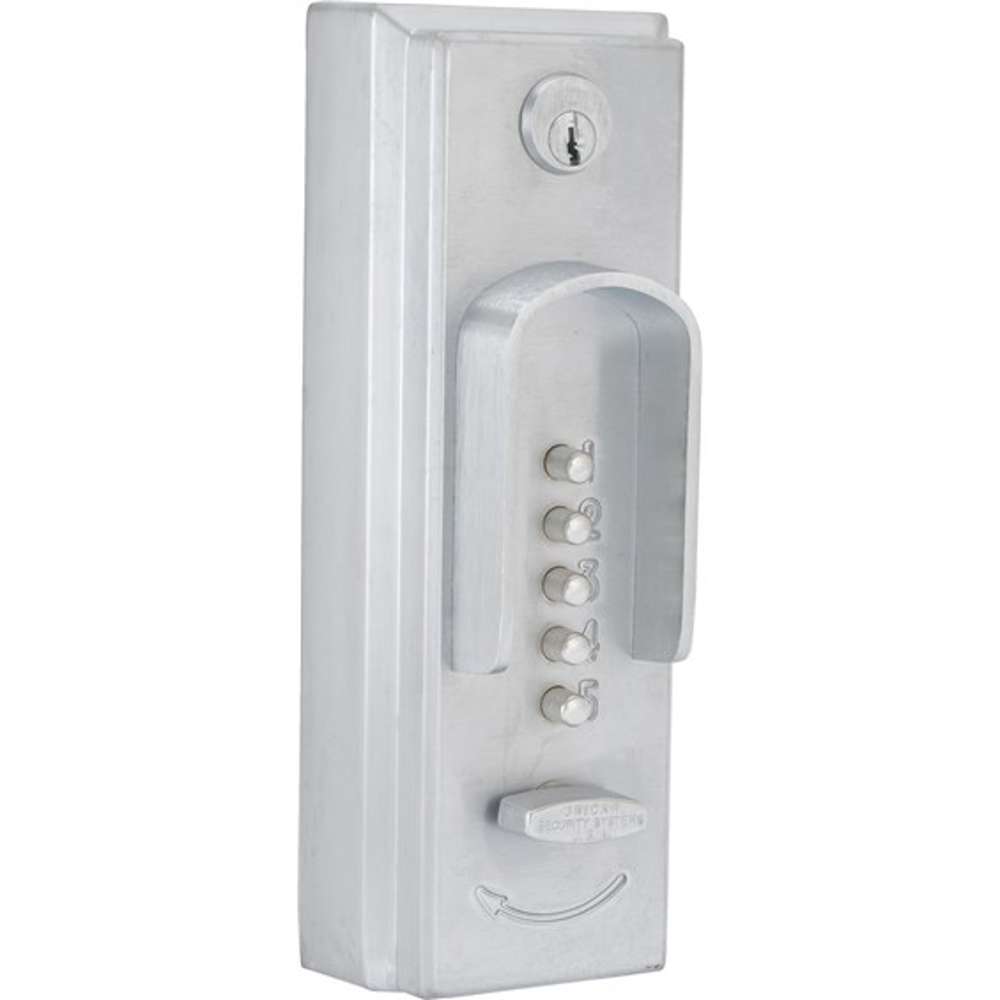

Kaba Simplex Exit Device Trim
Simplex Mechanical Pushbutton Locks eliminate problems and costs associated with issuing, controlling, and collecting keys and cards.
The Simplex 2015 Mechanical pushbutton lock provides exterior access by combination, while allowing free egress at all times by interior Exit Device (not supplied). This fully mechanical lock eliminates the material and labor expense of battery replacements, has a single access-code and is programmed via the keypad without removing the lock from the door.
Product Details
No Battery:
Fully mechanical lock eliminates the material and labor expense of battery replacements
Number of Codes:
Single access code—one easy-to-manage code for all users
Locking Device Options:
Rim Exit Device: Compatible with most leading brands of Exit Devices (Exit Device and mounting hardware not included)
Programming:
Lock is easily programmed via keypad without removing lock from the door
Handing:
For non-handed or clockwise-rotating (adjustable up to 90°) Exit Device hubs only
Operation Modes:
Pushbutton Access
Exit Device may be "dogged" without affecting the 2015
Economical:
A cost effective access control solution
Technical Details
Construction: Heavy-duty, cast front housing
Numeric Keypad: Vandal resistant, solid metal pushbuttons
Handing: For non-handed or clockwise-rotating (adjustable up to 90°) Exit Device hubs only
Finish: Satin Chrome 26D (626)
Tailpiece:
2¾" (70 mm) adjustable tailpiece for Exit Device operation from outside;
Optional 5" (127 mm) tailpiece available (sold separately; part # 74773-000-001)
Exit Device Hub Rotation: Adjustable up to 90° clockwise for right hand (adjustable cam)
Strike: Not supplied (supplied with Exit Device)
Minimum Stile Recommended: 3⅛" (79 mm)
Door Preparation: Exit Device preparation may require recessed through bolting; 2015 installation is based on centerline of mating Exit Device hub
Door Thickness: 1⅜" (35 mm) to 2½" (64 mm); optional 5" (127 mm) tailpiece (purchased separately)
Items Supplied Include: Installation manual, full-scale template, combination change keys, and required lock installation hardware only
Durability: Weather resistant
Control: 6-pin tumbler cylinder keys for combination change access; keyed differently; optional keyed alike or master keyed
Latch: Not supplied
Exit Device Compatibility:
American Device 6300 Series, 6303 Series, Detex Advantex Series 10, 20, 21, 40, 50, 51
Dorex 8500R/8500F, Dorex 9500R/9500FR
Corbin 21, 22, 25, 26NT, 27K, 29, 29-1/4, 29M2, 29-1/2M2, 29NTM2, 29D20, LA29, 39, 39EL, 39LLD, 390, LA39
Magno Krom LHR only: 500-4, 550-4, 650-4, 1500-4, 1550-4, 1650-4; RHR only: 600-3
Monarch 18RBA, 18RP, 18VP, F18RBA, F18RP, F18VP, FXXRBA, FXXRP, FXXVP, XXRBA, XXRP, XXVP
Precision Hardware FL-D103; RHRB only 810-H; RH or LH: 103, R103, D203, H-203, 1103, D1203, H1203
Russwin 365, 3651/4, LT365, 370, 372, LA372, 375, LT375, 377, 382, 384, 385, 388, 572, 572EL, 572ELD, U572, LA572
Sargent 2813, 2804, 6804, 12-6804, 9804RHRB, 12-9804LHRB, 9898E, 9898K
Von Duprin 22 Rim, 22 Rim-F, 88, Rim, 88 Rim-F, 98 Rim, 98 Rim-F, 99 Rim, 99 Rim-F; 2227, 2227-F, 9827, 9827-F, 9847, 9847-F, 9927-F, 9947-F
Yale 1500 Series, 7000 Series
Cannot be used with surface-mounted Exit Devices with counterclockwise rotating hubs, thumb-operated Mortise design Exit Devices, or vertical rod Exit Devices
ATTENTION: Compatibility is subject to change if modifications are made by Exit Device manufacturers without Kaba’s knowledge
