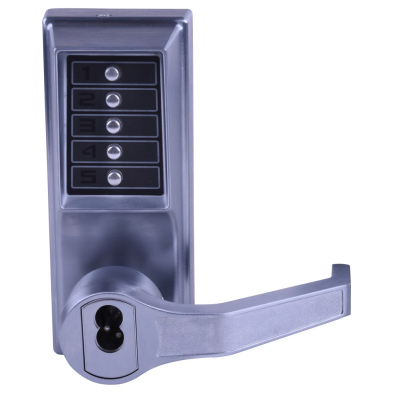

Kaba Access Combination Cylindrical Lever Locksets

SKU # SIL1000

The Simplex L1000 Series provides exterior access through a pushbutton combination, allowing free egress. With a lever option, this mechanical lock eliminates the material and labor expense of battery replacements, has a single code, and is programmed via the keypad without removing the lock from the door.


Press '+' For Option Guide
  1. Select Function:
    • L1011 (Combination Entry Only, No Key Override).
    • L1021 (Combination Entry with Key Override - Choose Keyway).
    • L1031 (Combination Entry with Passage Mode, No Key Override).
    • L1041 (Combination Entry with Key Override & Passage Mode - Choose Keyway).
  2. Select Cylinder Preparation - Keyway:
    • No Key (L1011/L1031)
    • Schlage (L1021S/L1041S)
    • Best (L1021B/L1041B)
    • Corbin Russwin (L1021C/L1041C)
    • Sargent (L1021R/L1041R)
    • Medeco-Yale (L1021M/L1041M)
  3. Select Finish:
    • Brass (US3)
    • Antique Brass (US5)
    • Satin Chrome (26D).
  4. Select Handing:
    • LL = Left Hand or
    • LR = Right Hand
  5. Cylinder: All Locks are sold Less Cylinder.

Delivery: Simplex L1000 Series are In Stock. Please allow 2-3 days' lead time.

Pricing varies based on the options selected below.

US$469.70

Description:

Description:

L1000 Series Pushbutton Lock with Lever by Simplex / Unican

Simplex Mechanical Pushbutton Locks eliminate problems and costs associated with issuing, controlling, and collecting keys and cards.

The Simplex L1000 Series provides exterior access by combination, while allowing free egress. This mechanical lock, with lever option, elimates the material and labor expense of battery replacements, has a single-code and is programmed via the keypad without removing the lock from the door.

  • Access Control: Mechanical pushbutton lock eliminates problems and costs associated with issuing, controlling, and collecting keys and cards. Provides exterior access by combination, while allowing free egress.
  • No Battery: Fully mechanical lock eliminates the material and labor expense of battery replacements.
  • Locking Device: Cylindrical latch with 3-hour UL/ULC fire rating on "A" labeled doors.
  • Number of Codes: Single access code - one easy-to-manage code for all users.
  • Programming: Lock is easily programmed via keypad without removing lock from the door.
  • Handing: Factory-handed; not field reversible.
  • Economical: A cost effective access control solution.
  • Passage Mode (L1031 & L1041) - allows access without using the lock entry mode. Feature activated from the inside with a thumbturn or key (included with all passage feature models).
  • Door Thickness: 1-3/8" to 2-1/4".
  • Strike: T-Strike plate, ASA strike plate. DB strike box.
  • Backset: 2-3/4" backset.
  • Finish: Brass (US3), Antique Brass (US5) & Satin Chrome 26D (626).
  • Key Override (Optional): Key Override models (L1021 & L1041) accept removable core cylinders.
  • ** All Simplex Key Override models are sold Less Cylinder.**

Operation Modes:

  • L1011 - Combination Entry, No Key Override.
  • L1021 - Combination Entry with Key Override. Choose Keyway: Schlage (L1021S), Best (L1021B), Corbin Russwin (L1021C), Sargent (L1021R), and Medeco-Yale (L1021M).
  • L1031 - Combination Entry with Passage Mode Capability, No Key Override. Passage Mode: Access by combination or passage feature. Passage Feature controlled by either thumbturn or key cylinder, packed with both. The 1031 Model has no key override.
  • L1041 - Combination Entry with Key Override & Passage Mode Capability. Choose Keyway: Schlage (L1041S), Best (L1041B), Corbin Russwin (L1041C), Sargent (L1041R), and Medeco-Yale (L1041M). Passage Mode: Allows access without using the lock entry code, keeping the door unlocked even while closed. This feature is activated from the inside with a thumbturn or key.



Special Order Information: For pricing on any function, keyway, or finish of the Simplex L1000 Series not found on this page, please contact Taylor Security directly via e-mail (sales@taylorsecurity.com) or call us toll-free at 1-800-676-7670.

Specifications:

Specifications:

  • No Battery: Fully mechanical lock eliminates the material and labor expense of battery replacements
  • Locking Device: Cylindrical latch with 3-hour UL/ULC fire rating on "A" labeled doors
  • Number of Codes: Single access code—one easy-to-manage code for all users
  • Programming: Lock is easily programmed via keypad without removing lock from the door
  • Handing: Factory-handed for left-hand doors; easily field reversible
  • Key Override (Optional): Small format interchangeable cores, large format removable cores
  • Operation Modes: Pushbutton Access

Mechanical Features

  • Construction: Heavy-duty cylindrical lock housing with cast front housing; unified trim plate, and fixed ADA-compliant levers
  • Numeric Keypad: Vandal resistant, solid metal pushbuttons
  • Handing: Factory-handed, not field reversible
  • Standard Finish: Satin Chrome 26D (626)
  • Backset: 2¾" (70 mm), 2⅜" (60 mm)
  • Latch: ½" (13 mm) throw latch
  • Minimum Stile Recommended: 5" (127 mm)
  • Weight: 7.25 lbs. (3.3 kg)
  • Strike: Standard strike plate; ASA strike plate

Key Override

  • Interchangeable Cores: Small format—Best and equivalents (6 or 7-pin length); core not included
  • Removable Cores: Large format—Medeco/ASSA/Yale/Abloy (5 or 6-pin length),
  • Corbin Russwin (6-pin length), Schlage, and Sargent; core not included

Installation

  • Door Preparation: Easily installs on wood or metal doors. ASA 161 door preparation with additional through bore holes required.
  • Door Thickness: 1⅜" (35 mm) to 2¼" (57 mm)—Pre-assembled to accommodate 1⅝" (41 mm) to 2" (51 mm)
  • Items Supplied Include: Lock assembly, installation manual, full-scale template, combination change plug and access key, and required installation hardware

Certification and Testing

  • Accessibility Standard: Americans with Disabilities Act (ADA); fixed ADA-compliant lever
  • Durability: Weather resistant
  • Fire Rating: 3-hour UL/ULC fire rating for "A" labeled doors
