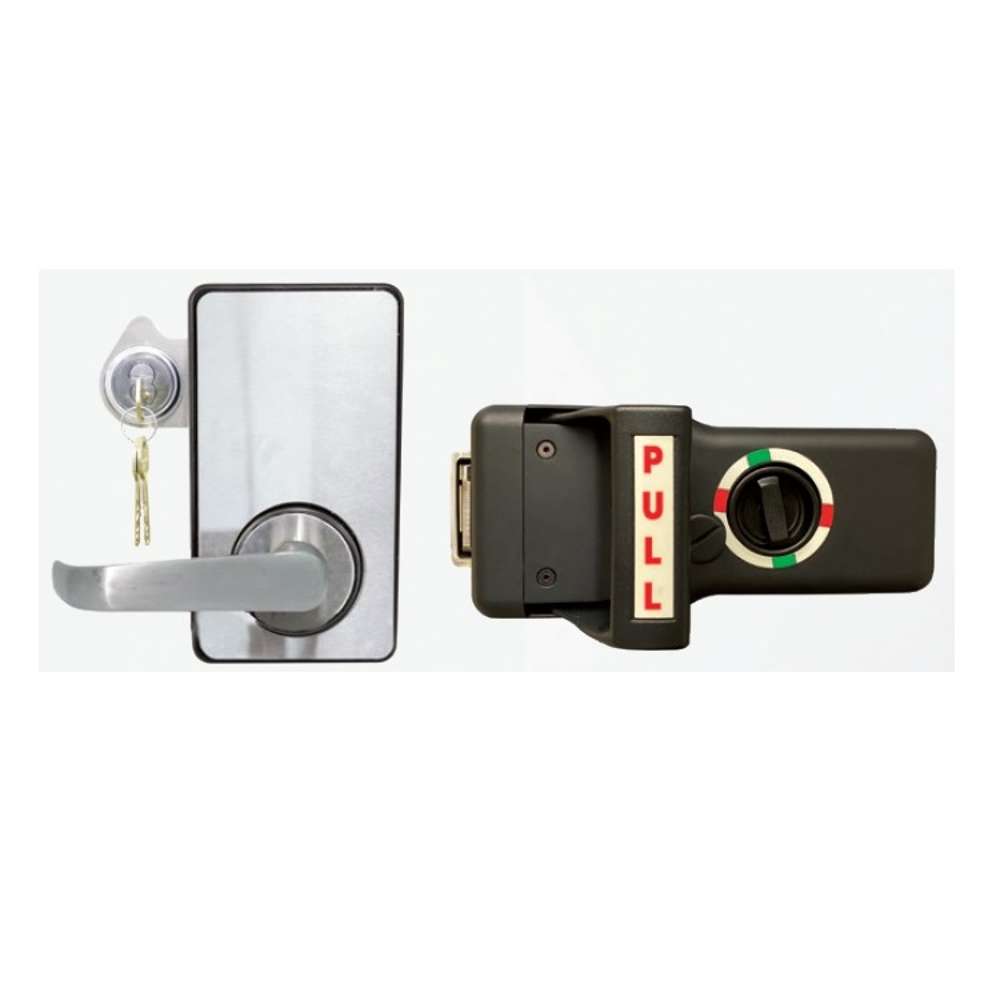

Lockmasters LKM10KHLDS9 Push Pull Handle Lock Down Model
The LKM10K Lock Series Lock Down Model is designed for use on secondary entry/exit doors using an access control system to regulate the flow of traffic into rooms without impeding egress. It can be mechanically disabled with the turn of a knob. This action denies entrance into the area, but single motion egress is always available.
Typical Applications: SCIF (Sensitive Compartmented Information Facility), Communications Rooms, Weapons Rooms, Strong Rooms, Laboratories, SAP (Special Application Project).
Type I - Pedestrian Door Pre-Assembled Lock (PDPL)
- Utilizes mechanical access control
- ADA compliant
- Single motion egress
- Non-handed
- 90 minute fire rating
Type II - Pedestrian Door Pre-Assembled Lock (PDPL)
- Utilizes mechanical access control
- ADA compliant
- Single motion egress
- Non-handed
- 90 minute fire rating
Compliance & Certifications
- Approved for Government Use
- U.L. Fire Rated 90 Minute
Single Motion Egress Handle (Push/Pull Model) - One simple push or pull of the ADA and UFSA compliant handle allows exit. One hand gurantees a safe & easy exit even in emergency situations. (Type I & II).
Key Override Option - A separate module is no longer necessary for this option. Key Override is standard on all LKM10K models. However, it is optional to utilize, so it can be added with little effort at a later date if necessary. Key Override it allows a key to "override" the access control device only. It will not override the combination lock. This capability is particularly important during the event of power outage, failure or malfunction of an access control device, or an emergency that require expedited entry (Note: Cylinder Not Included).
Benefits:
Interchangeable - You can install the LKM10K Lock Series in your facility and maintain a consistent look since the appearance of the Exterior Trim has not changed.
Retrofittable - Simply remove the existing LKM7000 Lock Series attach our Retrofit Fixture modify a few existing holes then install either the Push/Pull Model or Panic Bar Model.
Field Tested - WIth over 25,000 LKM7000 Lock Series in use today, we are confident the improvements we have made in our next generation LKM10K Lock Series will exceed your expectations. We've conducted our own internal 1,000,000 cycle tests as well has had a unit in the field for over a year, with great success.
Easy Operation - The internal linear bearing allows for easy entry and exit even with heavy loads applied to the door.
Easy to Order - All three models includes everything you need, no add-ons. You get the Pedestrian Exit Device, the combination lock, the strike, Key Override option and three internal Monitoring "Alarm" Switches.
Special Orders: For pricing on any Lockmasters Access Control Devices not on this page please contact Taylor via e-mail (sales@taylorsecurity.com) or call +1 (800) 676-7670.
