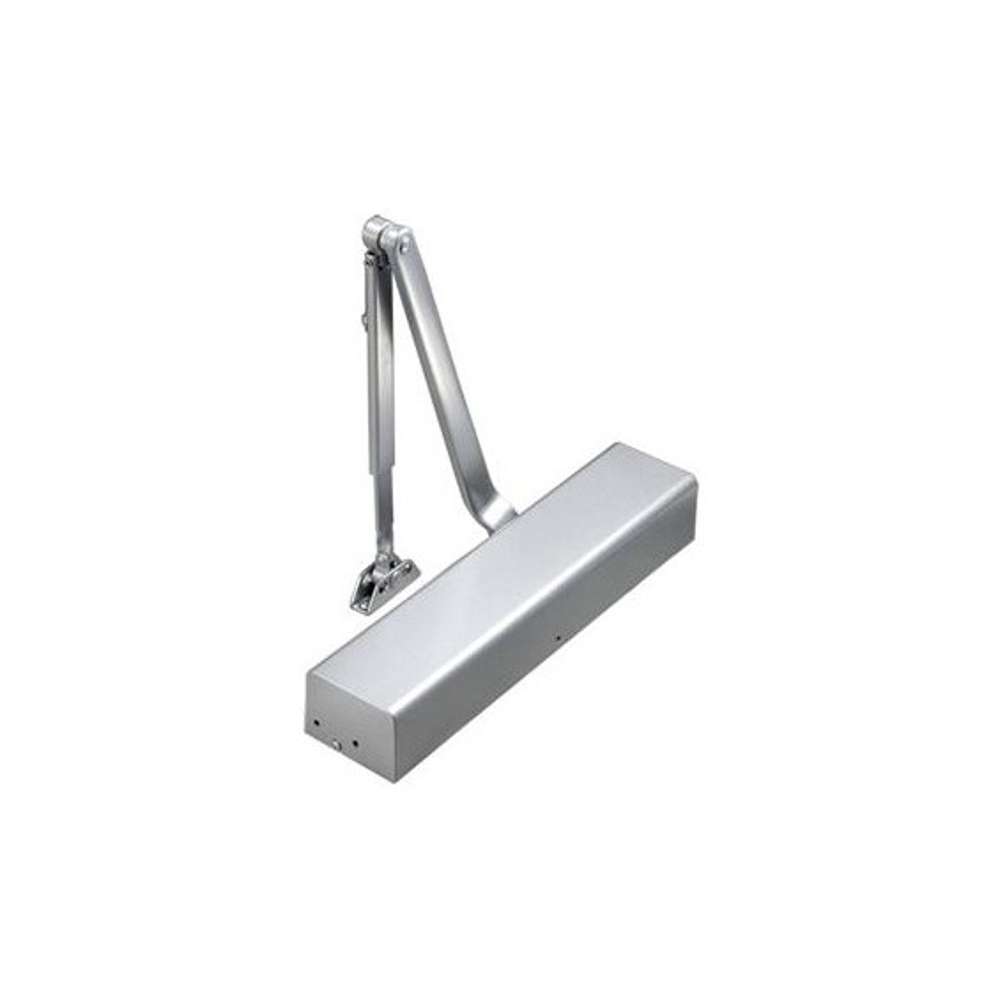

Norton Door Closer, Non Handed, Tri Pack, Adj. Size 1-6
Multi-sized door closer offering a sleek, minimal design suited for moderate-to-high-traffic, architectural openings
The 8000 Series Door Closers offer the ideal combination of appearance, reliability, and durability in today’s market. With features such as staked valves, precise valve adjustment, and a complete range of arm and cover options, this closer can meet virtually any application challenge.
CERTIFICATIONS
- ANSI/BHMA A156.4, Grade 1 certified
- UL / cUL listed for use on fire-rated doors
- UL10C listed for positive pressure fire test
- Designed to comply with requirements for the Americans with Disabilities Act (ADA) and ANSI standard A117.1
- This product is manufactured in an ISO 9001, ISO 14001 facility
- Architectural door closer with full size plastic cover
- Adjustable spring size 1 through 6 with backcheck
- Tri-Style® packaging standard, regular arm, top jamb and parallel arm mounting
- Standard, separate and independent, latch-speed, sweep-speed and backcheck intensity valves
- Mounting holes are spaced 3/4” vertically x 12" horizontally with 2-1/8” projection (standard covers)
- Cast aluminum body
- Rack-and-pinion design
| Style | Architectural Door closer |
| Grade | Medium duty |
| Door Handing | Non-handed |
| Door Width | Maximum 48" interior and exterior doors |
| Opening Degrees | 180 degrees - condition permitting |
| Projection | 2-1/8" |
