Omnia 171S, Sleek Solid Brass Lever with Square Rose
The Omnia made 171S/00 is a Sleek Brass Leverset made out of solid brass. It is contemporary in design, pairing a modern shape with your choice of one of the modern finishes. The shape of the lever is not only stylish, it is also comfortable to your hand--making it one of the best choices if you are looking to add contemporary elegance that is both beautiful and functional to your home. The Sleek Solid Brass Lever is available in passage, privacy, and dummy functions.
Features of the Modern Sleek Lever with Square Rose:
Solid brass construction.
Fits most standard door cut outs.
ADA Compliant
Specifications for the Omnia 171S Modern Sleek Door Lever with Square Rose:
Material: Solid Brass
Lever Length: 4-1/4"
Lever Projection: 2-1/2"
Rose Length: 2-9/16" square
Door Thickness: 1-3/8", 1-3/4", or 2"
Backset: either 2-3/8" or 2-3/4"
28 degrees rotation to retract latch.
Fits standard 2-1/8" inch door bore.
Concealed screw rose.
Available Functions:
Single Dummy: No door latch. Stationary door lever on one side of the door. Package Includes: 1 lever, 1 rose, and mounting screws.

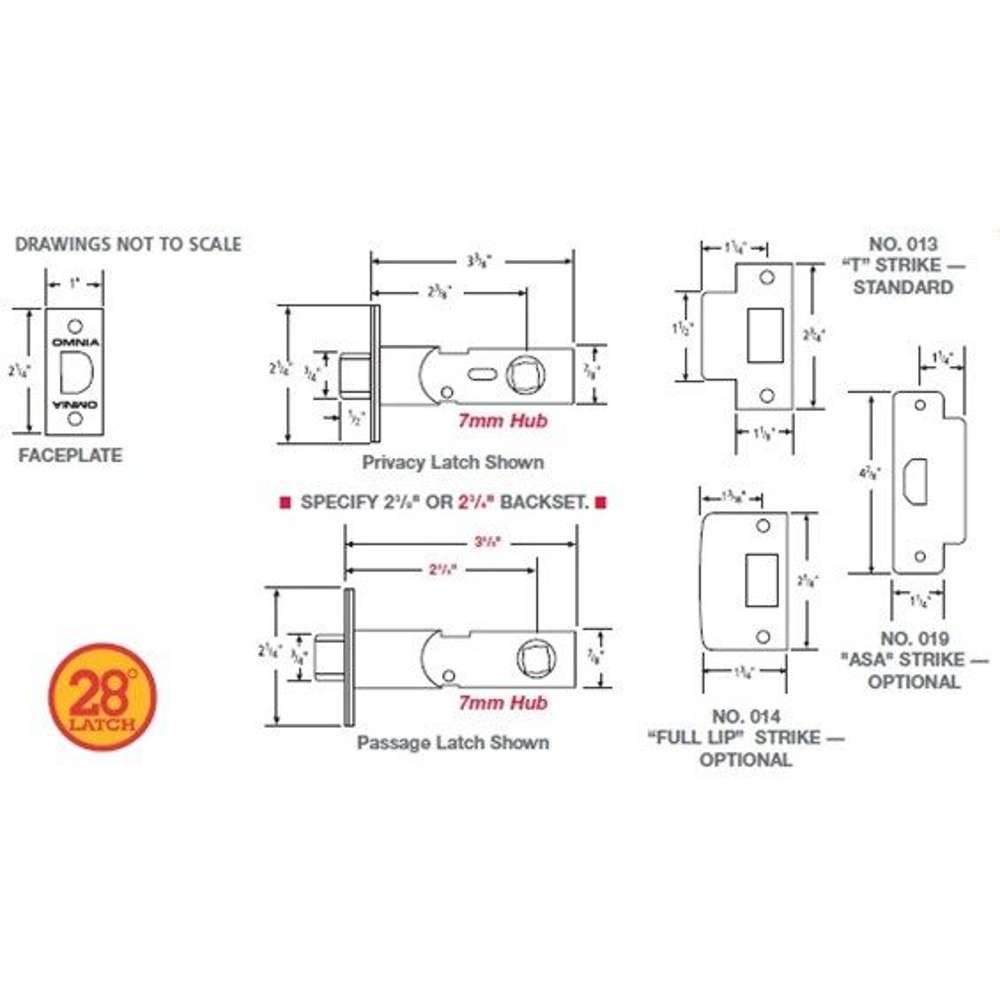

Passage (Hall or Closet): For doors that don't need locking. Latch operates from either side of door. Package Includes: 2 levers, 2 roses, door latch, strike plate, dust box, faceplate, solid spindle, and mounting screws.
Privacy (Bedroom or Bathroom): For doors that could need privacy locking. Latch operates from either side. Push button on interior rose engages privacy; emergency release hole is on exterior rose. Turning inside lever will release privacy push button and retract the door latch. Package Includes: 2 levers, 2 roses, privacy button, door latch, strike plate, dust box, faceplate, slit spindle, and mounting screws
