Omnia 22000-PA-US10B Style Lever

SKU # OM/22000-PA-US10B

Read Review(s) | Log in to Review

The "220" Lever is part of the Omnia Solid Brass Series

"All Omnia Levers comes standard with 2-3/8" Backset (Latch), No. 013 "T" Strike, and are available for 1-3/8" Thick Doors"

Passage Function: Passage door hardware has no locking mechanism. Both the interior and exterior handles are always free making it perfect for hallways, closet doors, and anywhere else a lock isn't needed. Passage door hardware can also be used in conjunction with a deadbolt to secure a back door or entrance.

Features:
Constructed of high quality brass for lasting durability
Installs easily with all necessary mounting hardware included
ADA compliant

Specifications:
Backset: 2-3/4", 2-3/8"
Cross Bore: 2-1/8"
Edge Bore: 1"
Door Thickness: 1-3/8"
Handing: Left, Reversible, Right
Handle Width: 5-1/8"
Handle Projection: 2-1/2"
Trim Width: 2-9/16"
Trim Height: 2-9/16"
Latch Faceplate: Square Corner

US$174.75

Taylor Security ID #: 2452101

Description:

Description:

Omnia 22000-PA-US10B Style Lever

  • Fits standard 2 1/8" bore door prep.
  • For commercial and residential use.
  • 2 3/8" or 2 3/4" backsets available (must specify).
  • Shipped standard with 2 3/8" backset and 1 3/8" door thickness unless otherwise specified.
  • All Omnia Stainless Steel Latchsets are ADA approved.
  • Concealed Screw Rosettes (rosette size 2 5/8" dia x 1/2" projection) - 28 Degree Retraction
  • 7mm Hub Adjustable faceplate/armor plate for beveled doors.
  • Built in privacy feature with automatic release by inside lever or depression of the latch nose (privacy function)
  • Standard bore for easy installation as a new lock or replacement.

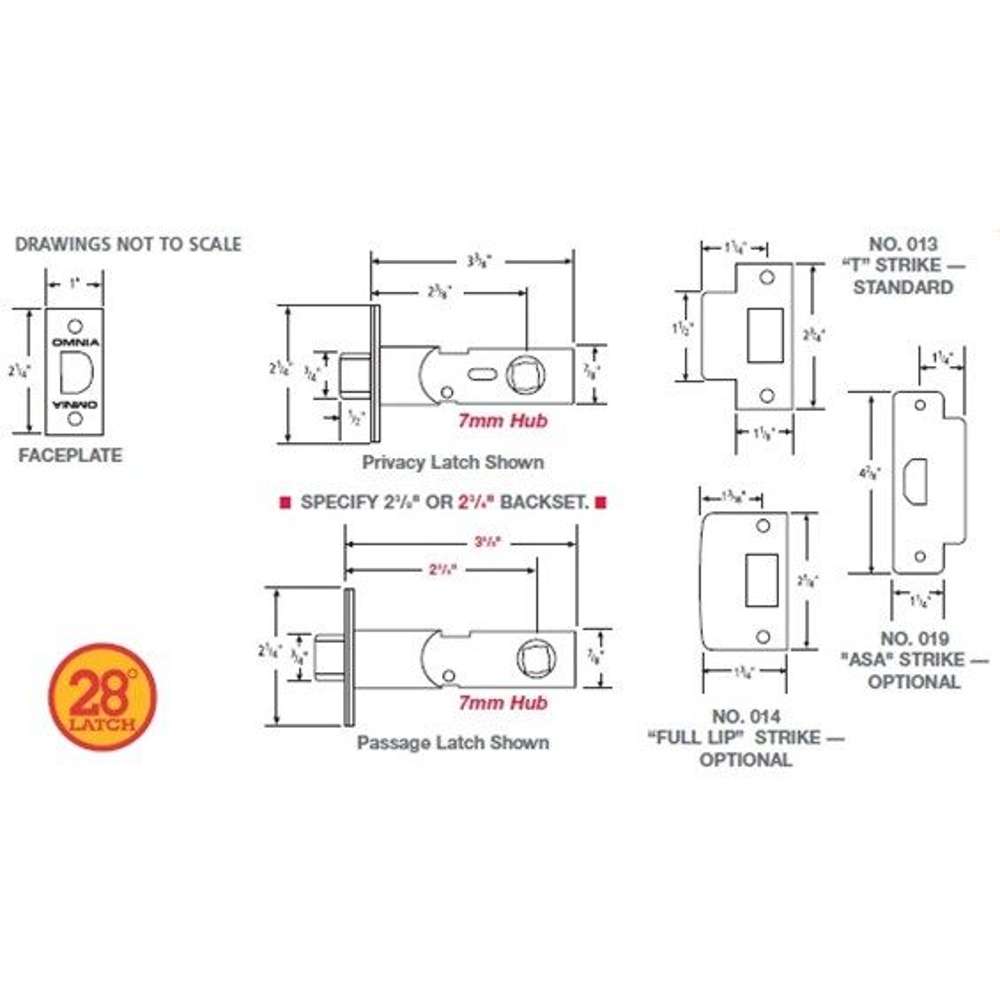

  • No. 013 "T" strike supplied as a standard or No. 014 full lip strike or No. 019 4 7/8" ASA strike available upon request.
Please review the descriptions below so you can order the correct door lever for your application.
Passage Lever Function: Omnia Passage Knobs latch operate by knob from either side of the door. They use 7mm solid spindles.
Privacy Door Knob Function: Omnia Privacy Knobs latch operate by knob from either side. Push button on interior rose engages privacy; emergency release hole is on exterior rose. Turning inside knob will release privacy and retract latchbolt. For bathroom or bedroom. Uses 7mm split spindle.
Single Dummy Door Knob Function: Omnia Single Dummy Knobs are trim on one side of the door only.

Features:

Features:

The "220" Lever is part of the Omnia Solid Brass Series

"All Omnia Levers comes standard with 2-3/8" Backset (Latch), No. 013 "T" Strike, and are available for 1-3/8" Thick Doors"

Passage Function: Passage door hardware has no locking mechanism. Both the interior and exterior handles are always free making it perfect for hallways, closet doors, and anywhere else a lock isn't needed. Passage door hardware can also be used in conjunction with a deadbolt to secure a back door or entrance.

Features:
Constructed of high quality brass for lasting durability
Installs easily with all necessary mounting hardware included
ADA compliant

Specifications:
Backset: 2-3/4", 2-3/8"
Cross Bore: 2-1/8"
Edge Bore: 1"
Door Thickness: 1-3/8"
Handing: Left, Reversible, Right
Handle Width: 5-1/8"
Handle Projection: 2-1/2"
Trim Width: 2-9/16"
Trim Height: 2-9/16"
Latch Faceplate: Square Corner

Specifications:

Specifications:

Click here for Omnia Modern Latchset Data Sheet

Literature:

Literature:

Click Here for Omnia Product Catalog
