Omnia 22000-SD-US26-RH Style Lever

SKU # OM/22000-SD-US26-RH

Read Review(s) | Log in to Review

The "220" Lever is part of the Omnia Solid Brass Series

"All Omnia Levers comes standard with 2-3/8" Backset (Latch), No. 013 "T" Strike, and are available for 1-3/8" Thick Doors"

Single Dummy Function: Single dummy function door hardware utilize this single dummy handle to create a uniform look throughout your home in the areas that do not require mechanical systems. Dummy door hardware is surface mounted with no locking mechanism and are used primarily for the inactive door in a double door installation serving as a pull.

Features:
Constructed of high quality brass for lasting durability
Installs easily with all necessary mounting hardware included
ADA compliant

Specifications:
Door Thickness: 1-3/8"
Handing: Left, Right
Handle Width: 5-1/8"
Handle Projection: 2-1/2"
Trim Width: 2-9/16"
Trim Height: 2-9/16"

US$63.00

Taylor Security ID #: 2452094

Description:

Description:

Omnia 22000-SD-US26-RH Style Lever

  • Fits standard 2 1/8" bore door prep.
  • For commercial and residential use.
  • 2 3/8" or 2 3/4" backsets available (must specify).
  • Shipped standard with 2 3/8" backset and 1 3/8" door thickness unless otherwise specified.
  • All Omnia Stainless Steel Latchsets are ADA approved.

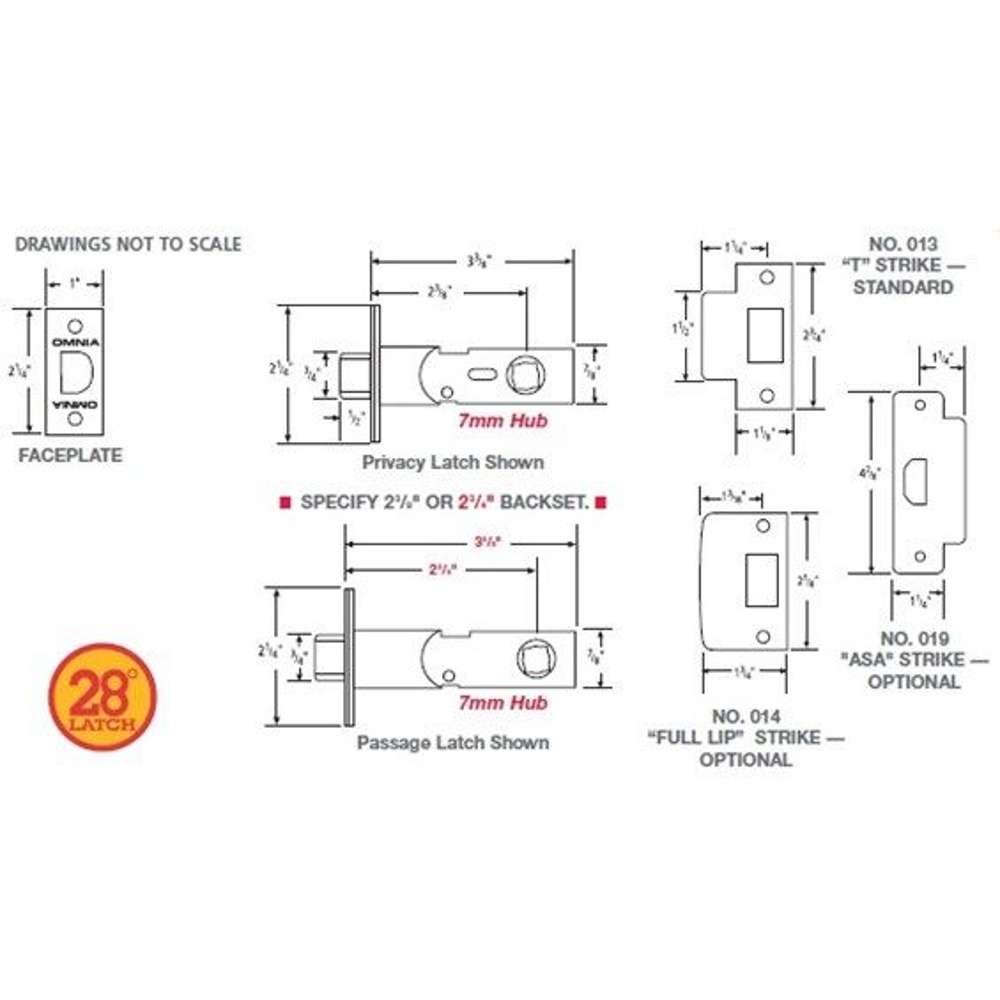

  • Concealed Screw Rosettes (rosette size 2 5/8" dia x 1/2" projection) - 28 Degree Retraction
  • 7mm Hub Adjustable faceplate/armor plate for beveled doors.
  • Built in privacy feature with automatic release by inside lever or depression of the latch nose (privacy function)
  • Standard bore for easy installation as a new lock or replacement.
  • No. 013 "T" strike supplied as a standard or No. 014 full lip strike or No. 019 4 7/8" ASA strike available upon request.
Please review the descriptions below so you can order the correct door lever for your application.
Passage Lever Function: Omnia Passage Knobs latch operate by knob from either side of the door. They use 7mm solid spindles.
Privacy Door Knob Function: Omnia Privacy Knobs latch operate by knob from either side. Push button on interior rose engages privacy; emergency release hole is on exterior rose. Turning inside knob will release privacy and retract latchbolt. For bathroom or bedroom. Uses 7mm split spindle.
Single Dummy Door Knob Function: Omnia Single Dummy Knobs are trim on one side of the door only.

Features:

Features:

The "220" Lever is part of the Omnia Solid Brass Series

"All Omnia Levers comes standard with 2-3/8" Backset (Latch), No. 013 "T" Strike, and are available for 1-3/8" Thick Doors"

Single Dummy Function: Single dummy function door hardware utilize this single dummy handle to create a uniform look throughout your home in the areas that do not require mechanical systems. Dummy door hardware is surface mounted with no locking mechanism and are used primarily for the inactive door in a double door installation serving as a pull.

Features:
Constructed of high quality brass for lasting durability
Installs easily with all necessary mounting hardware included
ADA compliant

Specifications:
Door Thickness: 1-3/8"
Handing: Left, Right
Handle Width: 5-1/8"
Handle Projection: 2-1/2"
Trim Width: 2-9/16"
Trim Height: 2-9/16"

Specifications:

Specifications:

Click here for Omnia Modern Latchset Data Sheet

Literature:

Literature:

Click Here for Omnia Product Catalog
