Omnia 22500-SD-US10B-LH Style Lever

SKU # OM/22500-SD-US10B-LH

Read Review(s) | Log in to Review

The "225" Lever is part of the Omnia Solid Brass Series

"All Omnia Levers comes standard with 2-3/8" Backset (Latch), No. 013 "T" Strike, and are available for 1-3/8" Thick Doors"

Single Dummy Function: Single dummy function door hardware utilize this single dummy handle to create a uniform look throughout your home in the areas that do not require mechanical systems. Dummy door hardware is surface mounted with no locking mechanism and are used primarily for the inactive door in a double door installation serving as a pull.

Features:
Constructed of high quality brass for lasting durability
Installs easily with all necessary mounting hardware included
ADA compliant

Specifications:
Door Thickness: 1-3/8"
Handing: Left, Right
Handle Width: 5-1/8"
Handle Projection: 2-3/4"
Trim Width: 2-9/16"
Trim Height: 2-9/16"

US$89.25

Taylor Security ID #: 2452129

Description:

Description:

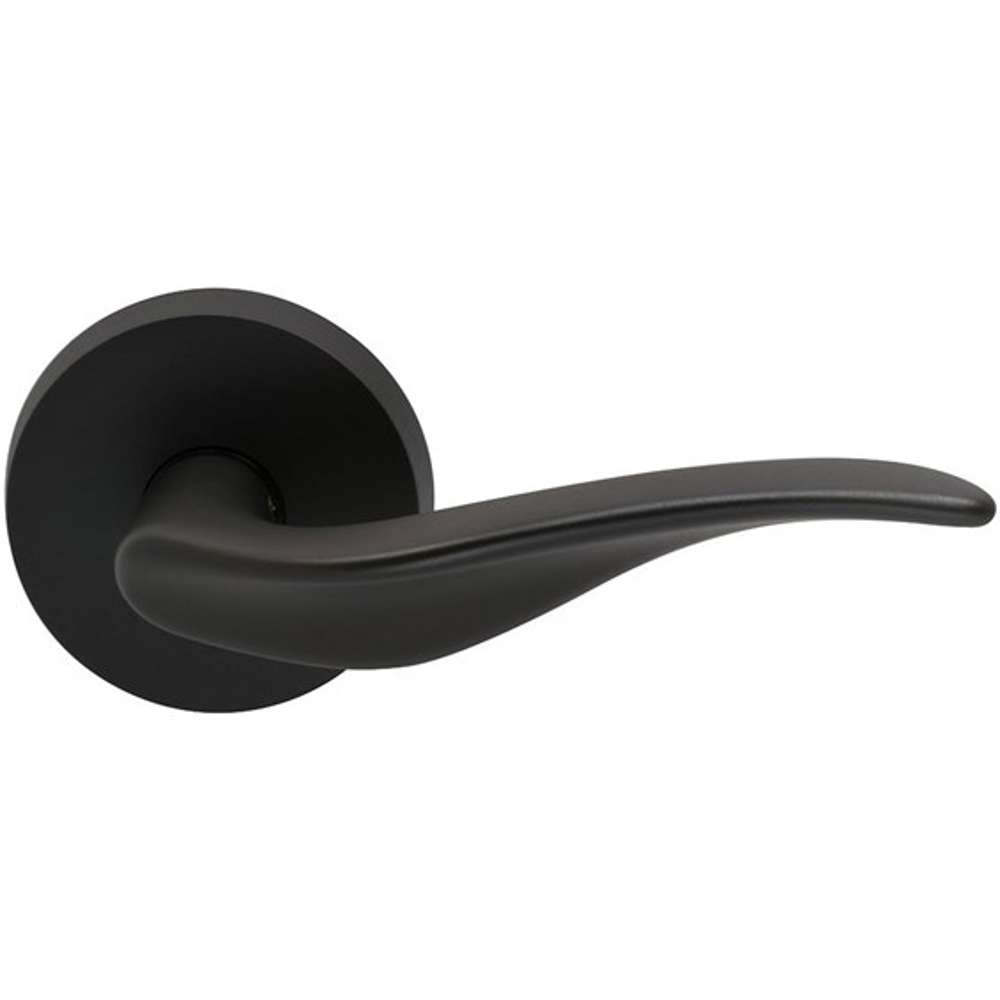

Omnia 22500-SD-US10B-LH Style Lever

Omnia 225, Chic Door Lever
This Chic Lever from Omnia features a round rose combined with a very sleek lever. The circular rose has concealed screw mounting (installation screws are hidden) for a very clean, modern look. The Chic Solid Brass Leverset fits most standard 2-1/8 inch bore hole door preparations. Choose from Dummy, passage, and privacy functions.

Features of the Chic Door Lever with Round Rose:
Solid brass construction.
Fits most standard door cut outs.
ADA Compliant

Specifications for the Omnia 225 Chic Door Lever:
Material: Solid Brass
Lever Length: 5-1/8"
Lever Projection: 2-3/4"
Rose Diameter: 2-9/16"
Door Thickness: 1-3/8", 1-3/4", or 2"
Backset: either 2-3/8" or 2-3/4"
28 degrees rotation to retract latch.
Fits standard 2-1/8" inch door bore.
Concealed screw rose.

Available Functions:

  • Single Dummy: No door latch. Stationary door lever on one side of the door. Package Includes: 1 lever, 1 rose, and mounting screws.
  • Passage (Hall or Closet): For doors that don't need locking. Latch operates from either side of door. Package Includes: 2 levers, 2 roses, door latch, strike plate, dust box, faceplate, solid spindle, and mounting screws.
  • Privacy (Bedroom or Bathroom): For doors that could need privacy locking. Latch operates from either side. Push button on interior rose engages privacy; emergency release hole is on exterior rose. Turning inside lever will release privacy push button and retract the door latch. Package Includes: 2 levers, 2 roses, privacy button, door latch, strike plate, dust box, faceplate, slit spindle, and mounting screws

Features:

Features:

The "225" Lever is part of the Omnia Solid Brass Series

"All Omnia Levers comes standard with 2-3/8" Backset (Latch), No. 013 "T" Strike, and are available for 1-3/8" Thick Doors"

Single Dummy Function: Single dummy function door hardware utilize this single dummy handle to create a uniform look throughout your home in the areas that do not require mechanical systems. Dummy door hardware is surface mounted with no locking mechanism and are used primarily for the inactive door in a double door installation serving as a pull.

Features:
Constructed of high quality brass for lasting durability
Installs easily with all necessary mounting hardware included
ADA compliant

Specifications:
Door Thickness: 1-3/8"
Handing: Left, Right
Handle Width: 5-1/8"
Handle Projection: 2-3/4"
Trim Width: 2-9/16"
Trim Height: 2-9/16"

Specifications:

Specifications:

Click here for Omnia Modern Latchset Data Sheet

Literature:

Literature:

Click Here for Omnia Product Catalog

Product Videos:

Product Videos:
