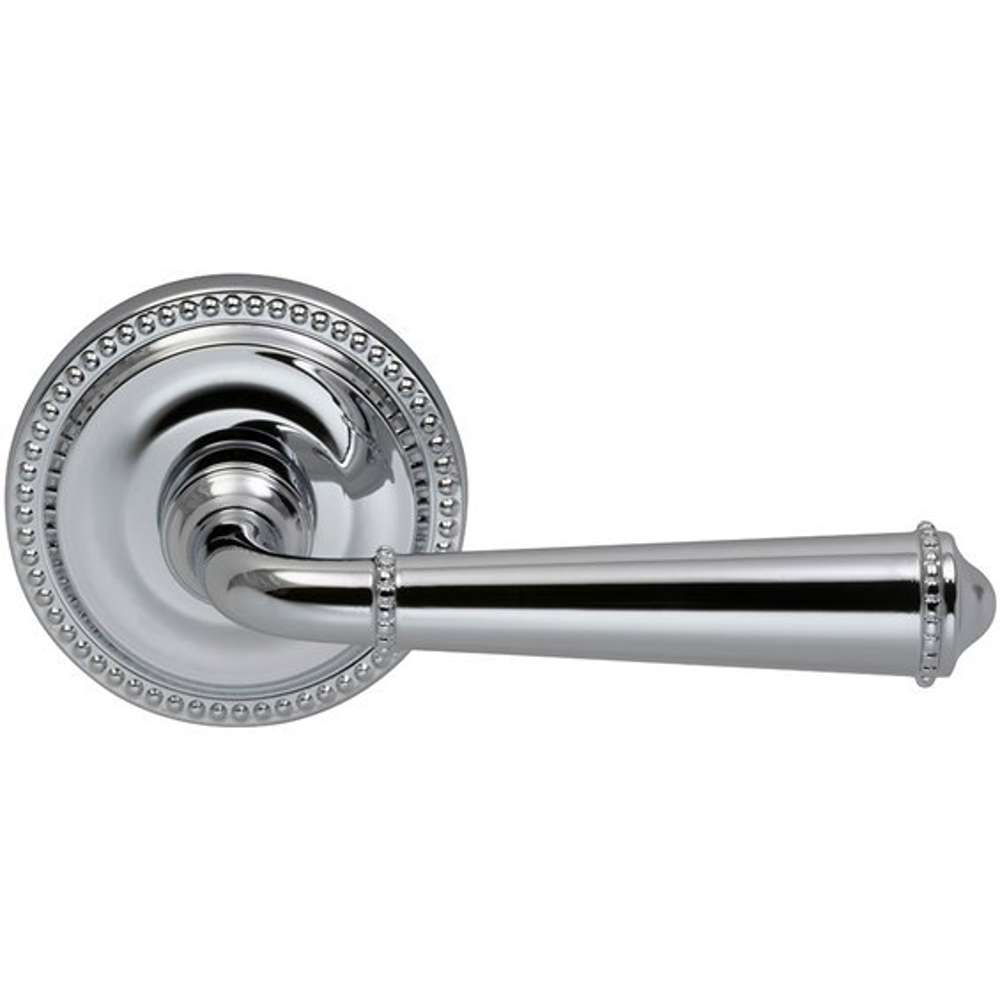

Omnia 946-00-PR-US26 Privacy Lever

Omnia 946-00-PR-US26 Privacy Lever

Privacy Function: Privacy door hardware features a locking mechanism on the interior for use on bedroom and bathroom doors where locking is needed. The exterior side features a small pin hole to unlock the door hardware from the outside.

Features:

• Constructed of high quality brass for lasting durability
• Installs easily with all necessary mounting hardware included
• ADA compliant

Specifications:

• Backset: 2-3/4", 2-3/8"
• Cross Bore: 2-1/8"
• Door Thickness: 1-3/8"
• Handing: Left, Reversible, Right
• Handle Width: 4-1/2"
• Handle Projection: 2-3/16"
• Trim Width: 2-5/8"
• Trim Height: 2-5/8"
• Latch Faceplate: Square Corner

The "946/00" Lever is part of the Omnia Tradition Series

"All Omnia Levers comes standard with 2-3/8" Backset (Latch), No. 013 "T" Strike, and are available for 1-3/8" Thick Doors"

Lever latchsets are supplied with extra heavy duty latches (28 degree rotation). Door prep: 2-1/8 in. bore hole. Supplied with both 2-3/8 in. backset and 2-3/4 in. backset. Supplied for both 1-3/8 in. or 1-3/4 in. door thickness. Supplied with No. 013 T-strike and No. 014 Full Lip strike. Functions are passage, privacy, and single dummy.

• Privacy function: Latch operates by lever from either side. Push button on interior rose engages privacy; emergency release hole is on exterior rose. Turning inside lever will release privacy and retract latchbolt. For bathroom or bedroom.
• Lever: 4-1/2 in. length
• Projection: 2-3/16 in.
• Rose: 2-5/8 in. diameter, 3/8 in. projection
