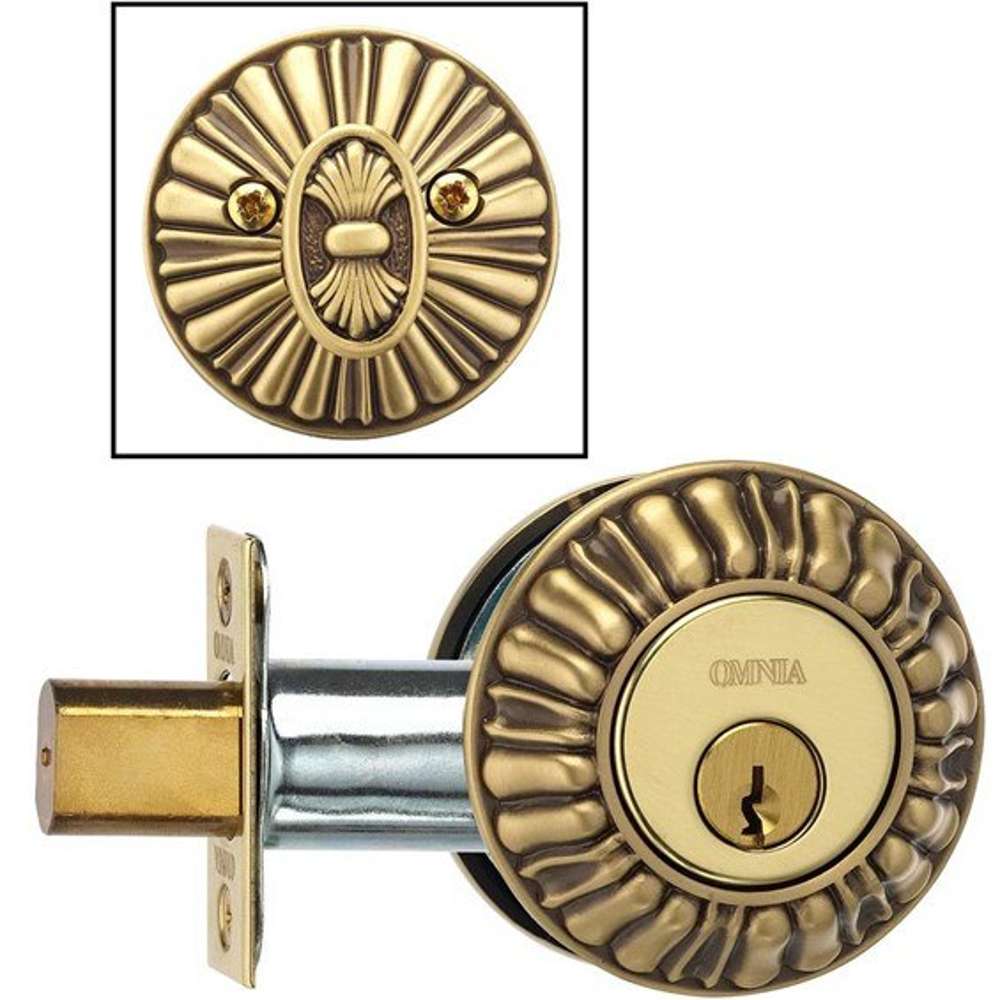

The "REEDDB" Reeded Deadbolt is part of the Omnia Classico Collection
"All REEDDB Deadbolts comes standard with 2-3/8" Backset (Latch) and are available for 1-3/4" Thick Doors"
- Function: Single Cylinder.
Specifications
• Available in 2-3⁄8" or 2-3⁄4" backsets. Please specify backset at time of order.
• Available for 1-3⁄8" or 1-3⁄4" thick doors. Please specify door thickness at time of order. For doors 2" thick or thicker, please call OMNIA for additional charges that may apply.
• Suitable for most pre-existing bores for cylindrical locks.
• Supplied with Schlage “C” keyway as a standard. Available on special order with a variety of other keyways and key combinations.
• Deadbolt employs a rim cylinder for ease of re-keying and key changes.
Lock Functions
• A – Activated by key outside and turnpiece inside.
• AC – Activated by key only from either side. (For stainless steel auxiliary deadbolts only.)
Supplied With:
• 2-3⁄4" x 1-1⁄8" x 3⁄16" armored strike reinforcement.
• All parts shown in schematics below.
