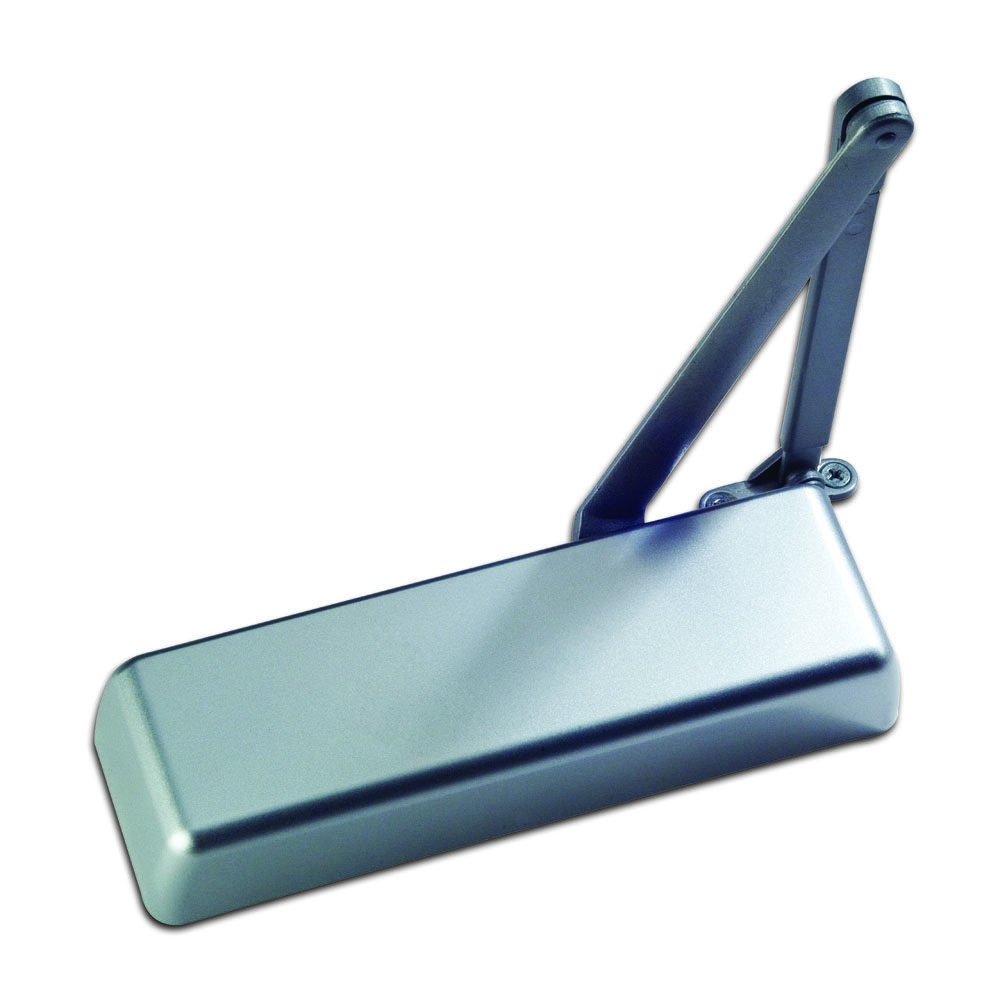

PDQ 7100 Series Door Closers

SKU # PQ7100

Read Review(s) | Log in to Review

PDQ’s 7100 Series Heavy Duty Architectural Door Closer's innovative design includes a 5 lb barrier free spring setting for ADA compliance, plus 6 additional spring settings. The greater range of spring settings provides 17% more adjustment capability to find that sweet spot for optimal door closing action.

The PDQ 7100 Series is a heavy duty, fully featured architectural style door control. A high strength cast iron body and forged steel arm assembly provides maximum durability and reliability in the most brutal environments. Recommended applications include high frequency abusive installations such as schools, universities, military bases and the most demanding commercial buildings.

Pricing varies based on options selected below.
US$195.30
Clear All
PDQ Manufacturing

You may also like

Specifications:

Specifications:

HANDING: Non-handed

OPERATION: Rack and pinion design

BODY: Cast Iron

ARMS: Forged steel main arm

PISTON: Hardened steel, 1-1/2” diameter

ADJUSTMENT:

  • Adjustable controlled closing
  • Separate hydraulic backcheck standard
  • Backcheck positioning valve standard
  • Separate sweep, latch, backcheck intensity and backcheck positioning valves

ADJUSTMENT VALVES: All Adjustment Valves are STAKED.

FACTORY DEFAULT SPRING SETTING: Size 3

SIZE: Adjustable BF Plus 1 through 6

MOUNTING:

  • Mounting hole pattern retrofits LCN ® 4040 (for more comparisons, see cross reference table)
  • Tri-packed for regular, top jamb and parallel arm installations
  • Includes fasteners for metal and wood doors
  • Sex nuts and bolts standard

COVER: Full plastic cover standard (non-handed), optional full metal cover available (handed)

FINISHES: 689 (US28) – Aluminum
