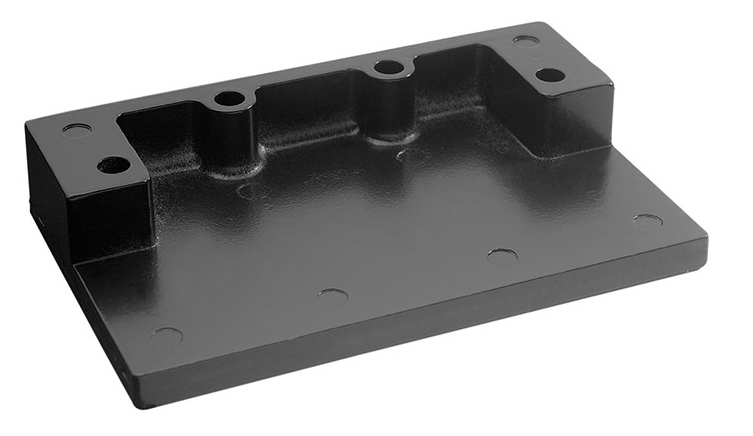

The 2601C Mounting Bracket is part of the Rockwood Hardware
The 2600 Series Door Coordinators (2660, 2672, 2696) override protection to prevent damage in case of abnormal force on door. The mechanism and filler bar completely fill the width of the opening, and when painted to match the frame the coordinator becomes virtually invisible.
Features
- Override protection to prevent damage in case of abnormal force on door
- Mechanism and filler bar completely fill width of opening
- Custom Sizes: Manufactured in different housing lengths to coordinate full range of door sizes including:
- NX2600 Series: For jamb opening widths 48" - 54"; coordinator length 42"
- 2600 Series: For jamb opening widths 54" - 96"; coordinator length 52"
- Contact factory for other available smaller or larger sizes
- Determining Coordinator Item Number:
- Active door widths plus inactive door width equals the last two or three digits of all 2600 Series coordinator item number (2680 is for 80" door openings)
- Less than 48" jamb widths - N2600 Series (N2644 = 44" opening)
- Larger sizes are available (L, XL), contact the factory
- Designed so surface vertical rod strike preps can be made directly into coordinator body
Specifications
- Bumper Material: Steel
- Fastener: 7 ea. #12 - 24 x 1-1/4 Truss Head Type C tapping screws
- Weight: 7lbs.
- Width: 1 5/8"
- Depth: 5/8"
Certifications
- ANSI/BHMA A156.3, Grade 1
- UL Listed
