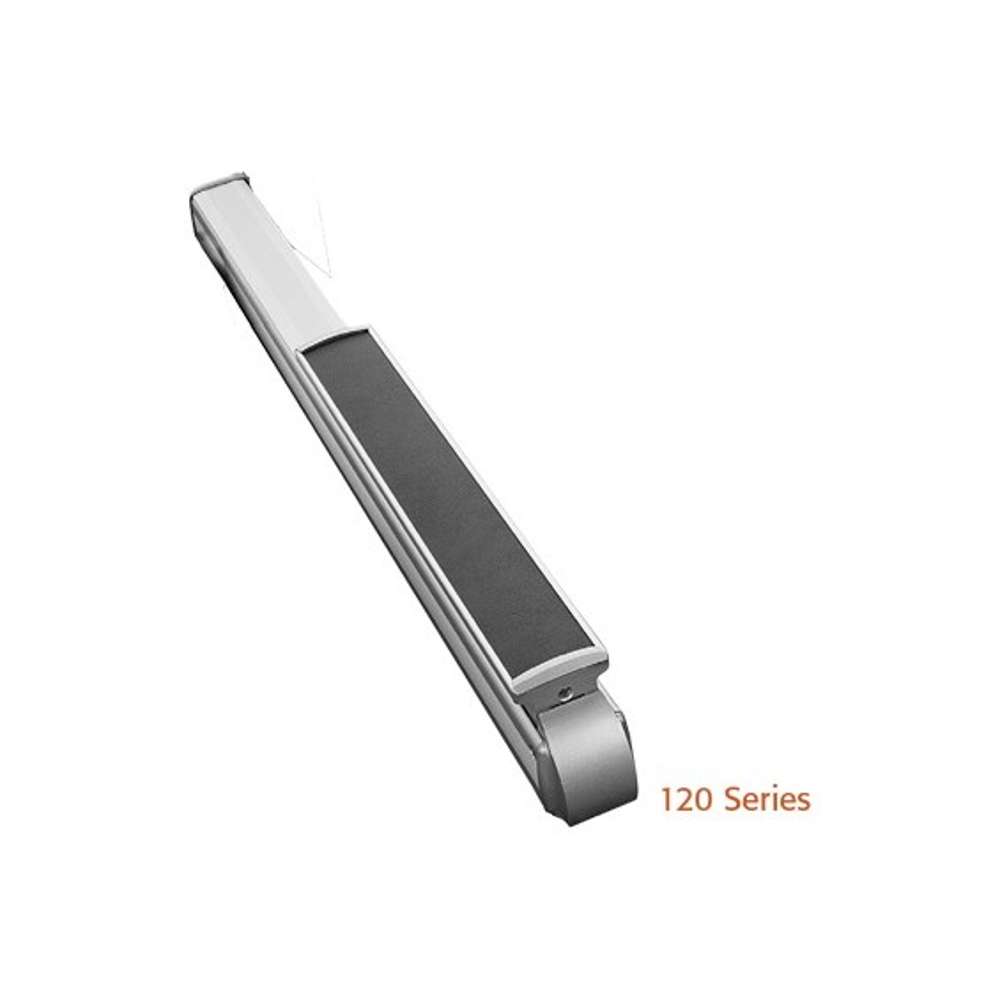

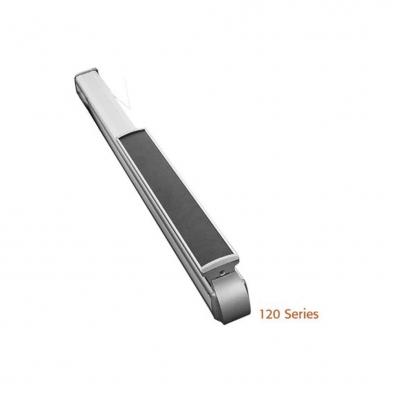

RCI L120D-SS2X40 Non-Latching Exit Bar

RCI L120D-SS2X40 Non-Latching Exit Bar

RCI 1200 and 1300 Series exit devices resolve the conflict between life safety and security. Both1200 Mechanical and 1300 Electric Series exit devices feature a patented latch that rotates to engage and grip the specially designed strike. This unique interlocking grip action secures the door to the jamb without conventional roller strikes or retracting latches. In addition an interlocking mechanism located in the chassis offers a double interlocking system which makes these exit devices virtually impossible to tamper with, pry or force open. The attractive lever trim can be used on the exterior side of the door for access.

Features:

• Pushbar, no latch or strike
• Ideal for easy egress to release electromagnetic lock
• Specify SS1 (SPDT) 3A@30VDC (Inductive), 4A@30VDC (Resistive)
• Specify SS2 (Two SPDT) 3A@30VDC (Inductive), 4A@30VDC (Resistive)
• Standard lengths for 36" (3 feet) and 48" (4 feet) doors
• Can be field cut for undersized doors

RCI L120D-SS2X40 Non-Latching Exit Bar

The RCI L120d-SS2x40 Non-Latching Exit Bar is a reliable security solution for buildings, offering a safe and efficient way to exit in emergency situations. This exit bar is designed with no latch or strike, making it easy to open the door in case of an emergency. This feature is particularly useful in high-traffic areas, such as offices, schools, and public buildings.
