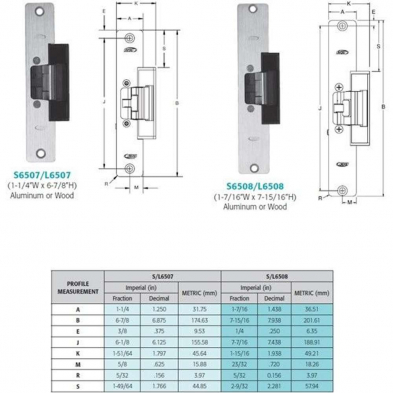

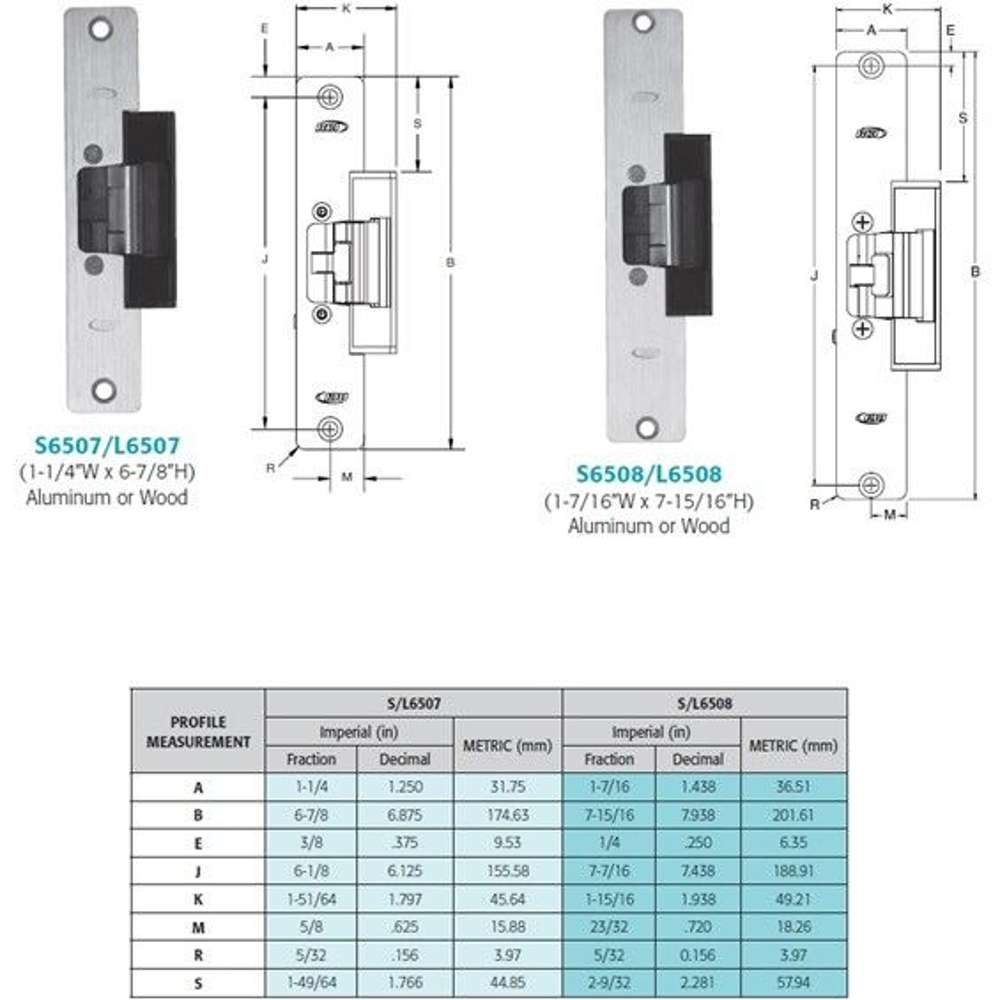

RCI L6508-32D Electric Strikes
The 6 series centerline strikes are available in standard profile or low-profile options to accommodate different latch projections. This heavy-duty series combines several requested key features. Standard features include a multi-voltage single solenoid, selectable lock mode (no tools necessary), horizontal adjustment, and plug-in wire connectors. ¼” horizontal adjustment makes installations faster and easier. Plus, with the RCI 6 series there will be less pressure on installer’s strike inventory, because these RCI strikes do it all.
- Energy: 375mA Field-Selectable 12/24VDC, 12-24VAC (At 12VDC)
- Strength: 1,500lbf Static 70ft-lb Dynamic (Grade 1, 04 & 14 faceplates only. Grade 2, 1,000lbf static for 05, 07 & 08 faceplates)
- Endurance: 500,000 Cycles (Grade 1, 04 & 14 faceplates only. Grade 2, 1,000lbf static for 05, 07 & 08 faceplates)
- Mode: Field-Selectable Fail-Secure & Fail-Safe
- Monitoring: Optional Latch & Keeper Monitor Models Available
- Warranty: 10-Year Limited Warranty
- Standard Insert Depth: 1-3/16"D (30mm)
- Low Profile Insert Depth: 1-1/16" (27mm)
Factory tested to over 1-million cycles of operation
UL 294 Listed for Access Control Unit Accessory (6th Edition)
UL 1034 burglary-resistant Listed
Certified to ANSI/BHMA standard A156.31, Grade 1, endurance 500,000 cycles (04 & 14 faceplates only. Grade 2, 1,000lbf static for 05, 07 & 08 faceplates)
