RCI SP-20-40 Spacers

RCI SP-20-40 Spacers

The MultiMag series of electromagnetic locks are designed for easy installation and multi-purpose operation for interior or perimeter doors. The mounting bracket has keyhole mounting to support the magnet, freeing the installer's hands to affix the magnet mounting screws. The removable cavity cover offers quick, easy access to wiring. The RCI 8310 MultiMag applies to single outswinging doors, while the RCI 8320 MultiMag is for double outswinging doors. For additional security monitoring these electromagnetic locks offer optional door status & security condition sensors.

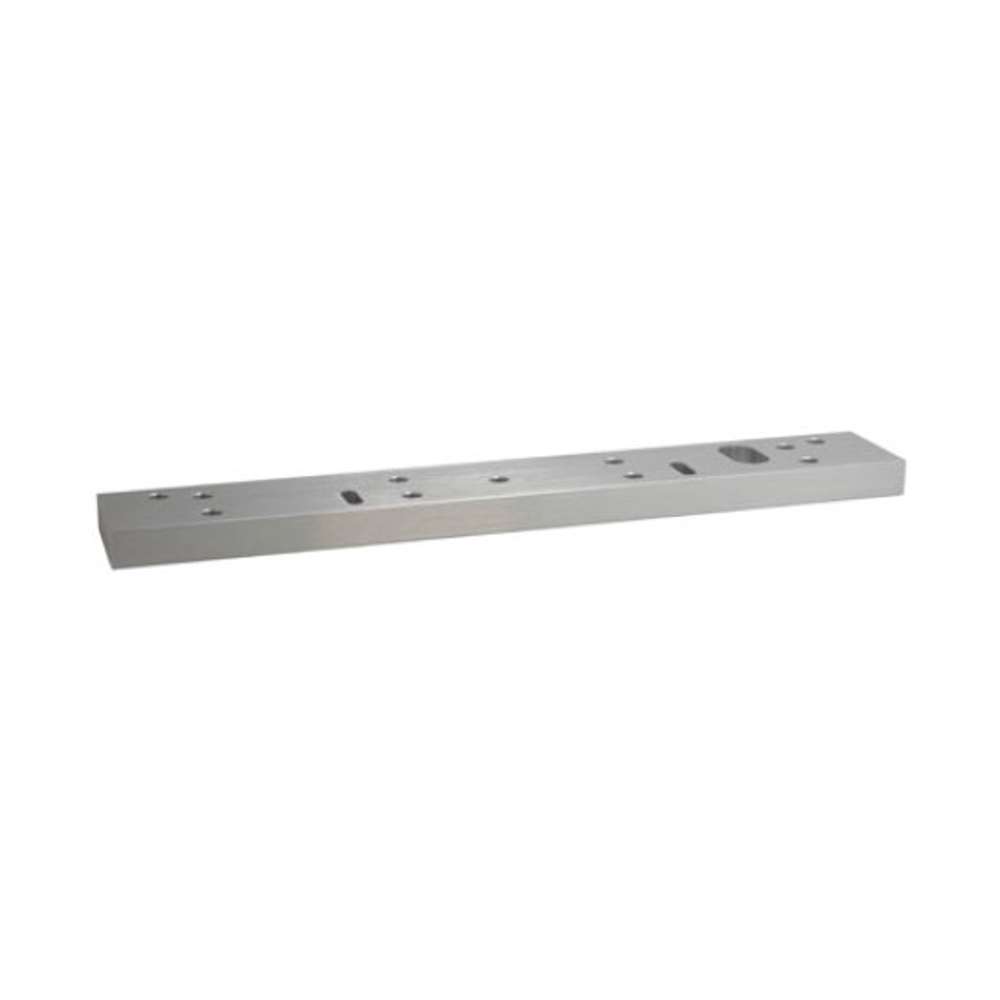

Spacers
For aluminum blade stop frames. Used to lower the magnet to align with armature plate.
Available in Brushed Anodized Aluminum (28) or Brushed Anodized Dark Bronze (40). Please specify when ordering.

• SP-20 1/4"H x 1-1/2"W x 21"L 28/40 for 8320
• SP-21 3/8"H x 1-1/2"W x 21"L 28/40 for 8320
• SP-22 1/2"H x 1-1/2"W x 21"L 28/40 for 8320
• SP-23 5/8"H x 1-1/2"W x 21"L 28/40 for 8320

The (SP) Spacers are part of RCI

Brushed Anodized Aluminum (28) or Brushed Anodized Dark Bronze (40).

• Adjustable keyhole mounting
• Built-in time delay (instant release with adjustable relock, programmable from 0-35 seconds)
• Convenient plug-in wiring terminals
• Easy-access wiring cavity
• Surge protection
• Self-drilling Teks® fasteners
• UL 294 Special Locking Arrangement Component
• CAN/ULC S104
• UL 10C 3-Hours
• California State Fire Marshal listed (CSFM: 3774-2275:0500)
