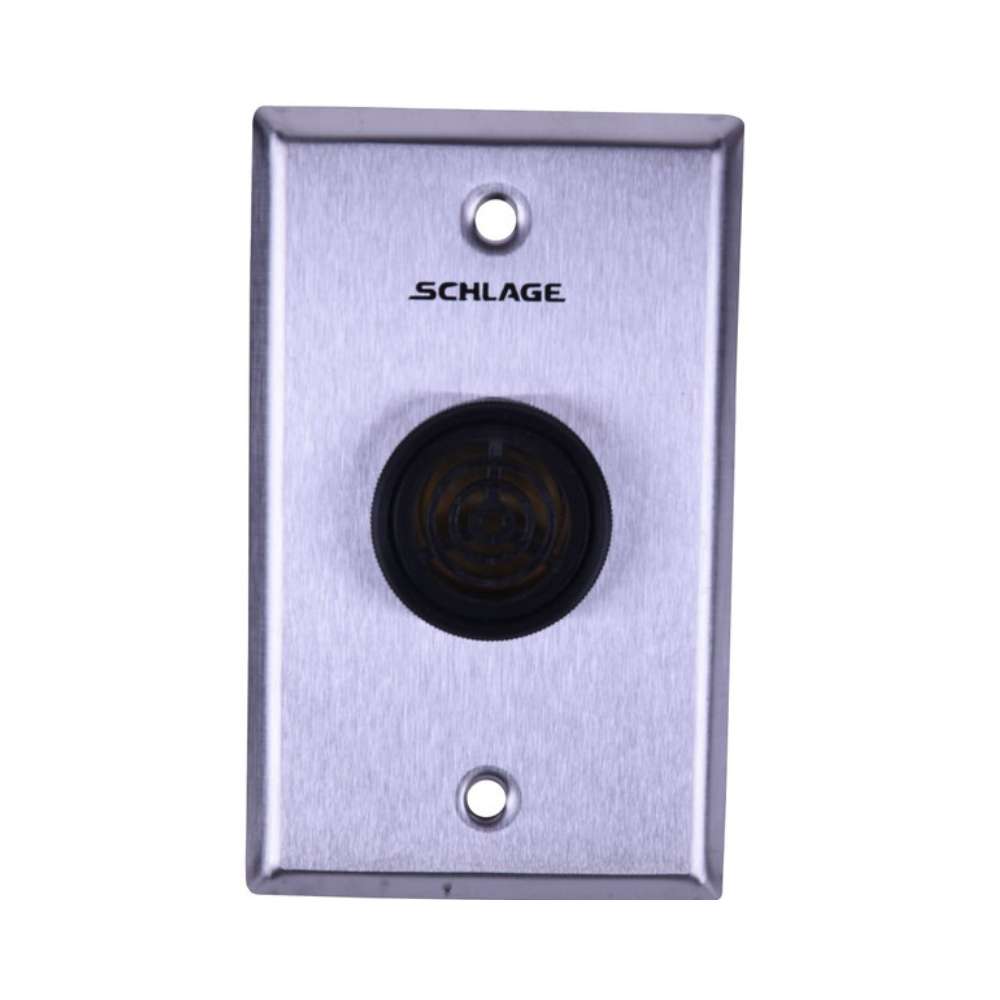

Schlage Electronics 800A Single Gang Sounder, 12/24VDC

Schlage Electronics 800A Single Gang Sounder

The Schlage Electronics 800A Single Gang Sounder is a versatile and reliable audible alert device designed for use in various security and monitoring systems. Here are the key features and specifications:

1. Operating Voltage: The sounder operates at both 12 VDC and 24 VDC, offering flexibility in different installation environments.
2. Current Draw: It has a current draw of 30mA at 12/24 VDC, ensuring energy efficiency.
3. Sound Output: The device produces a sound output of 80dB at 2 feet, providing a clear and audible alert in the monitored area.
4. Dimensions: The unit measures 4 1/2 inches in height, 2 3/4 inches in width, and 1 1/2 inches in depth, making it compact and easy to install in a single gang electrical box.
5. Material and Finish: It features a stainless steel finish, which enhances its durability and aesthetic appeal.
6. Installation: The sounder includes mounting screws for easy installation.

The 800A is part of the Schlage 800 Series monitoring stations, which can provide monitoring for a single zone with LED indicators. It is designed for commercial use, providing reliable audible alerts in various security and monitoring applications.

Downloadable Resources:

• Allegion Electronic Access Catalog

• Schlage 800/801 Data Sheet
