Schlage Electronics Keypad Classroom/Storeroom Rhodes Sch IC

SKU # LN/CO200CY70KPRHOJDRH

Read Review(s) | Log in to Review

The CO-Series is the ideal solution for customers seeking the added security and convenience of electronic access control without the cost or complexity of a fully networked system.

CO-Series standalone electronic locks by Schlage provide the security, efficiency and convenience of electronic access control without the cost or complexity of a fully networked system. The CO-Series is based on the trusted design of Schlage ND- & L-Series mechanical locks. It leads the industry in independent third party testing and certification, including ANSI/BHMA Grade 1 and UL 294 to ensure the highest degree of reliability.

Security:

  • Grant user rights to designated doors at specific times;
  • Audit trails give you visibility to who went where and when;
  • Electronic credentials can be easily added or deleted;

Convenience:

  • Automatic lock and unlock can be scheduled for specific time zones;
  • Holiday Schedules;
  • Multiple ways to utilize credentials including normal, toggle, freeze & pass through;

Efficiency:

  • Utilize existing master key system;
  • Low lifetime cost of ownership;
  • Easy to install and service in the field;
G.S.A. Contract Holder
This item is available on our
GSA contract # 47QSWA19D001W
US$979.80

Description:

Description:

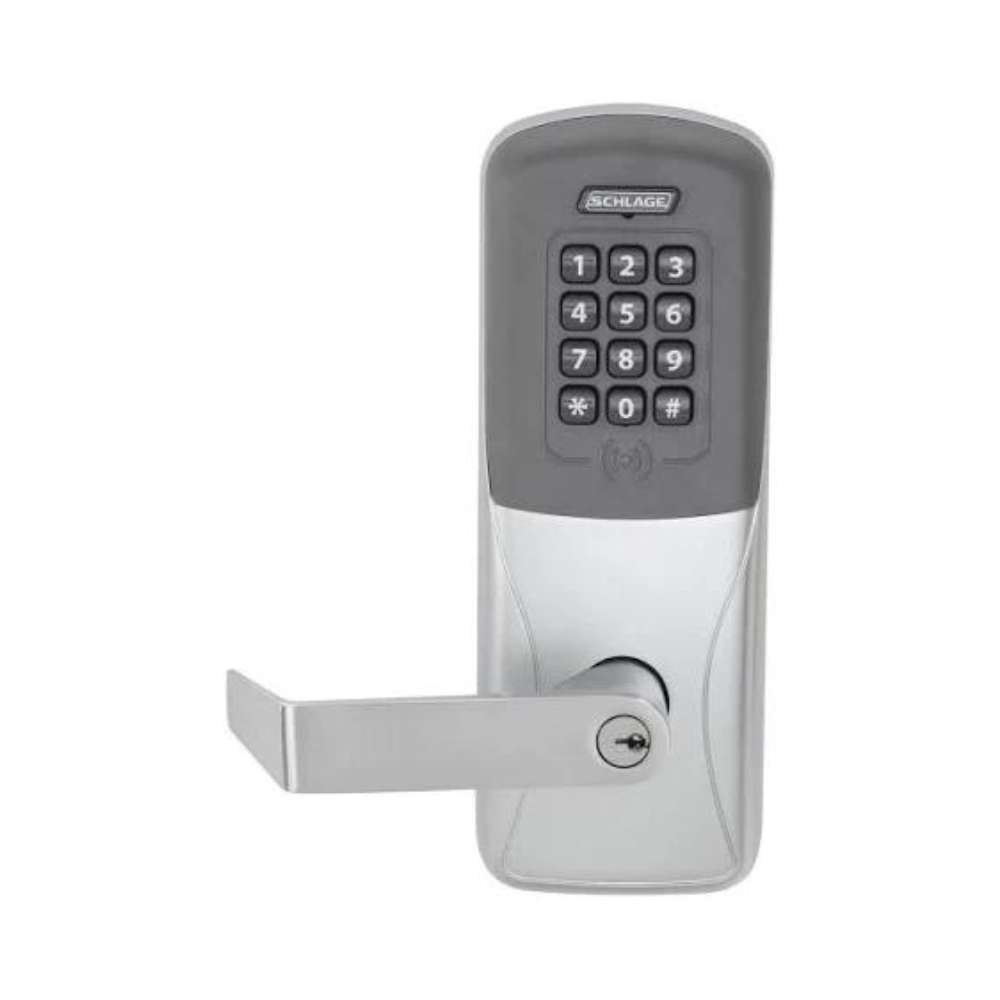

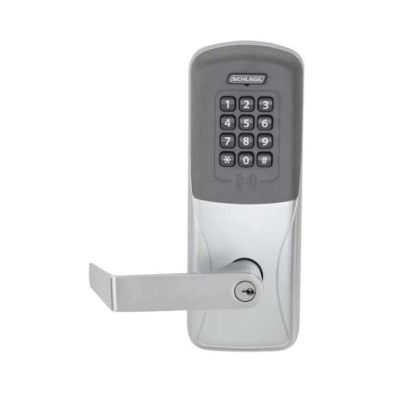

The Schlage Electronics CO200CY70KPRHOJDRH is a standalone electronic lock designed for classroom and storeroom applications. It combines robust security features with ease of use, making it an ideal solution for environments that require reliable access control without the complexity of networked systems.

Key Features:

  1. Standalone Operation: This lock operates independently, which means there is no need for network connectivity, reducing installation and operational complexity.
  2. Keypad Entry: Supports up to 500 unique PIN codes, allowing administrators to easily add or delete user access codes directly at the door.
  3. Mechanical Key Override: For emergencies or backup access, the lock includes a mechanical key override option.
  4. Grade 1 Security: Certified to ANSI/BHMA Grade 1 and UL 294 standards, ensuring high security and durability suitable for high-traffic areas.
  5. Flexible Functionality:
    • Storeroom Function: The lock remains secure from the outside and temporarily unlocks when a valid PIN is entered, then relocks automatically.
    • Classroom Function: A toggle credential can switch the lock between "locked" and "unlocked" states from the outside, while always allowing free egress from the inside.
  6. Battery Powered: Operates on 4 AA batteries, with a typical battery life of up to 2 years and a low battery warning system.
  7. Rhodes Lever Design: Features the ergonomic Rhodes style lever for easy operation and a modern look.

Specifications:

  • Finish Options: Available in Satin Chrome.
  • Cylinder Compatibility: Prepped for small format interchangeable core (SFIC), cylinder not included.
  • Backset: 2-3/4".
  • Door Thickness: Suitable for doors ranging from 1-3/4" thick.
  • Operating Temperature: Exterior: -31°F to 151°F; Interior: 32°F to 120°F.
  • Dimensions: Exterior - Height: 9.46", Width: 3.44", Projection: 3.67"; Interior - Height: 10.69", Width: 3.44", Projection: 2.96".

This lock is ideal for educational institutions, offices, and other facilities requiring controlled access with minimal maintenance and operational complexity. It provides a secure, user-friendly solution for managing access in various settings.
