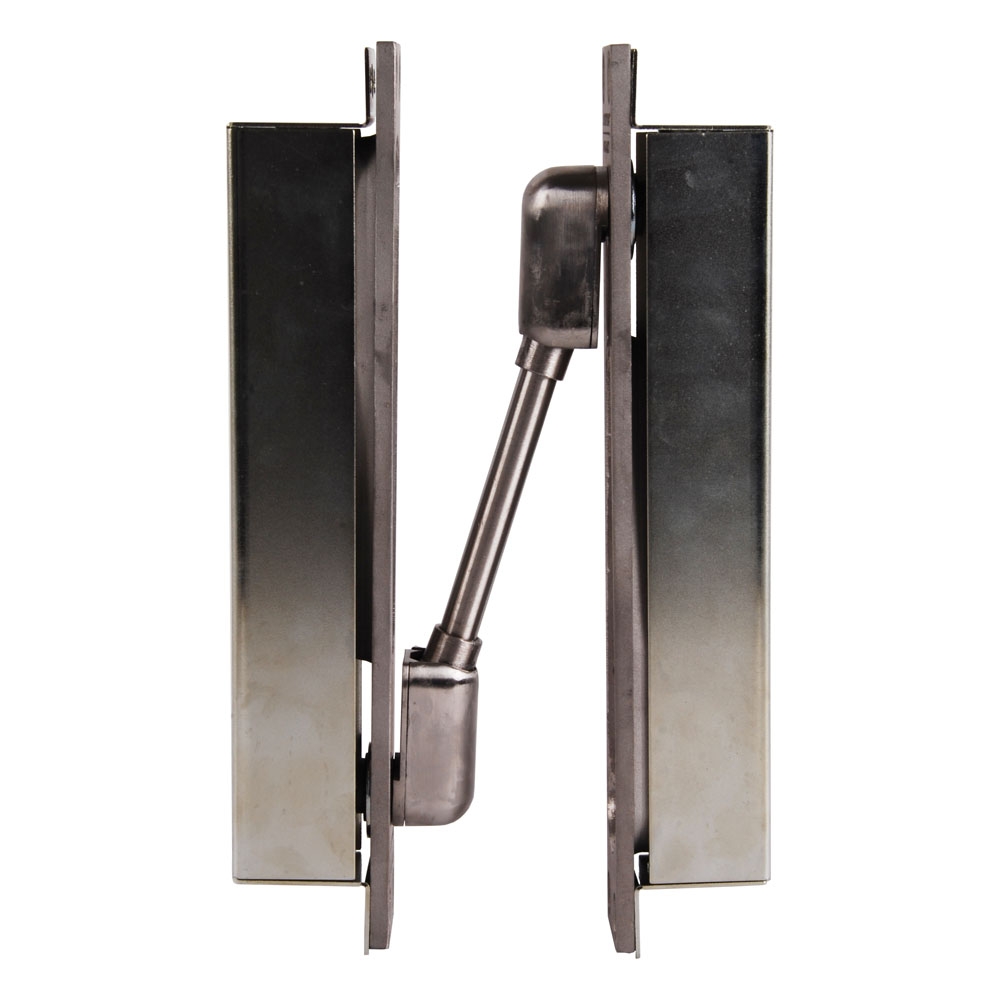

Securitron CEPT-C5E Power Transfer, 10 Wires
The Securitron CEPT-C5E Concealed Electrical Power Transfer is a high-performance device designed for securely transferring power and data from the door frame to the electrified hardware on the door. This model is specifically configured to support CAT-5E wiring, making it ideal for installations that require both power and data transmission, such as access control systems.
Key Features:
- CAT-5E Compatibility: Equipped with 8 CAT-5E compatible 24 AWG wires and 1 additional 22 AWG wire, it supports high-speed data transfer along with power, making it suitable for modern access control and networked systems.
- Concealed Installation: The device is installed between the door and the frame, concealed from view when the door is closed, which enhances both security and aesthetics.
- Durability: With an all-metal construction, including backboxes, the CEPT-C5E is tamper-resistant and built to withstand rigorous use, tested up to 1 million cycles.
- Versatility: It is compatible with butt hinges up to 6 inches and can also work with continuous hinges, provided the necessary cutouts are available.
- Fire and Safety Ratings: The unit is UL 10C and ULC S318 listed, with a 3-hour fire rating, ensuring compliance with safety standards.
