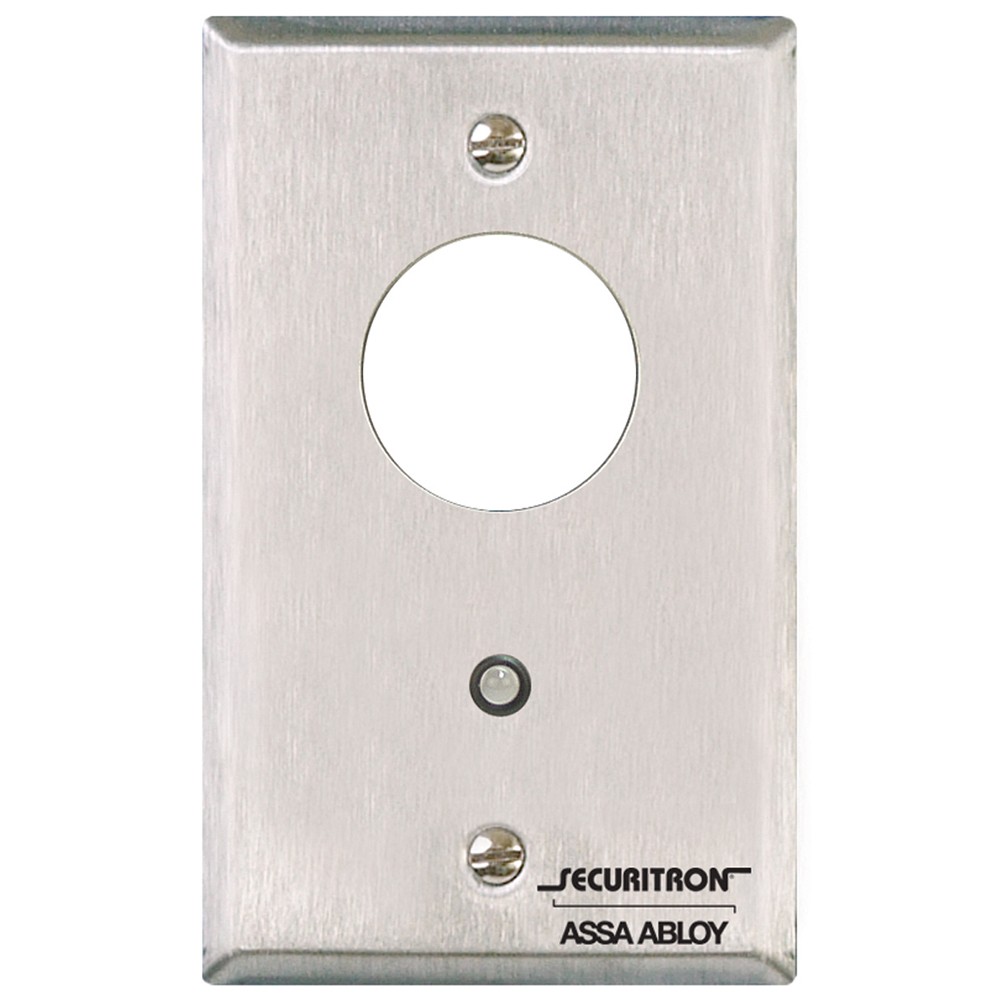

Securitron Mortise Key Switch Momentary - Single Gang

SKU # SO/MK

Product Features:

  • Standard with 12 or 24VDC bi-color LED
  • Backing bracket permits integration with any 1-1/4" [32mm] or 1-1/8" [28mm] mortise cylinder (not included)

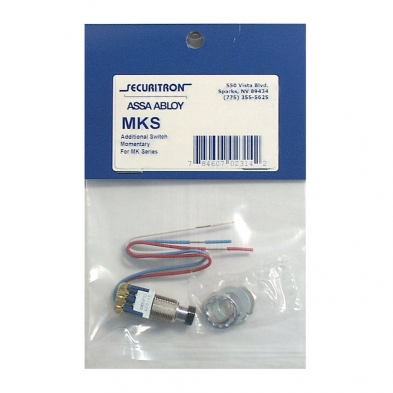

  • Additional switch position on backing bracket allows another switch to be activated by turning the key in the opposite direction
  • 5 Amp rated plunger switch
  • Includes anti-tamper screws
  • Cylinder available for use in the MK
  • 1-1/8" Length, 26D Finish
  • SC Keyway
US$90.63

Description:

Description:

Securitron Mortise Key Switch Momentary - Single Gang

The Securitron MK Mortise Key Switch is a versatile, high-quality switch designed for controlling electric locks, alarm systems, and other security-related devices. It features a momentary action switch, meaning it changes state only during activation and returns to its original state once the key is released. This model is designed for use with standard mortise cylinders (1-1/8" to 1-1/2" in length), making it adaptable to a wide range of security systems.

Key Features:

  • Momentary SPDT Switch: This Single Pole, Double Throw (SPDT) switch allows for a versatile range of applications, including controlling electric locks, alarm panel arming, and system overrides.
  • 12/24 VDC Bi-Color LED: The switch includes a bi-color LED that can operate on either 12VDC or 24VDC, providing clear visual indicators of the switch's status.
  • Flexible Mounting: The MK keyswitch is designed for single-gang mounting, fitting easily into standard electrical boxes, and it supports both surface and flush mounting options.
  • Anti-Tamper Design: The unit includes anti-tamper screws for added security, ensuring that the switch cannot be easily tampered with or removed.
  • Compatibility: The backing bracket is compatible with most standard mortise cylinders, allowing easy integration into existing master key systems. An additional switch position on the backing bracket can activate another function by turning the key in the opposite direction.

This keyswitch is ideal for use in various commercial and industrial environments where reliable and secure access control is required.
