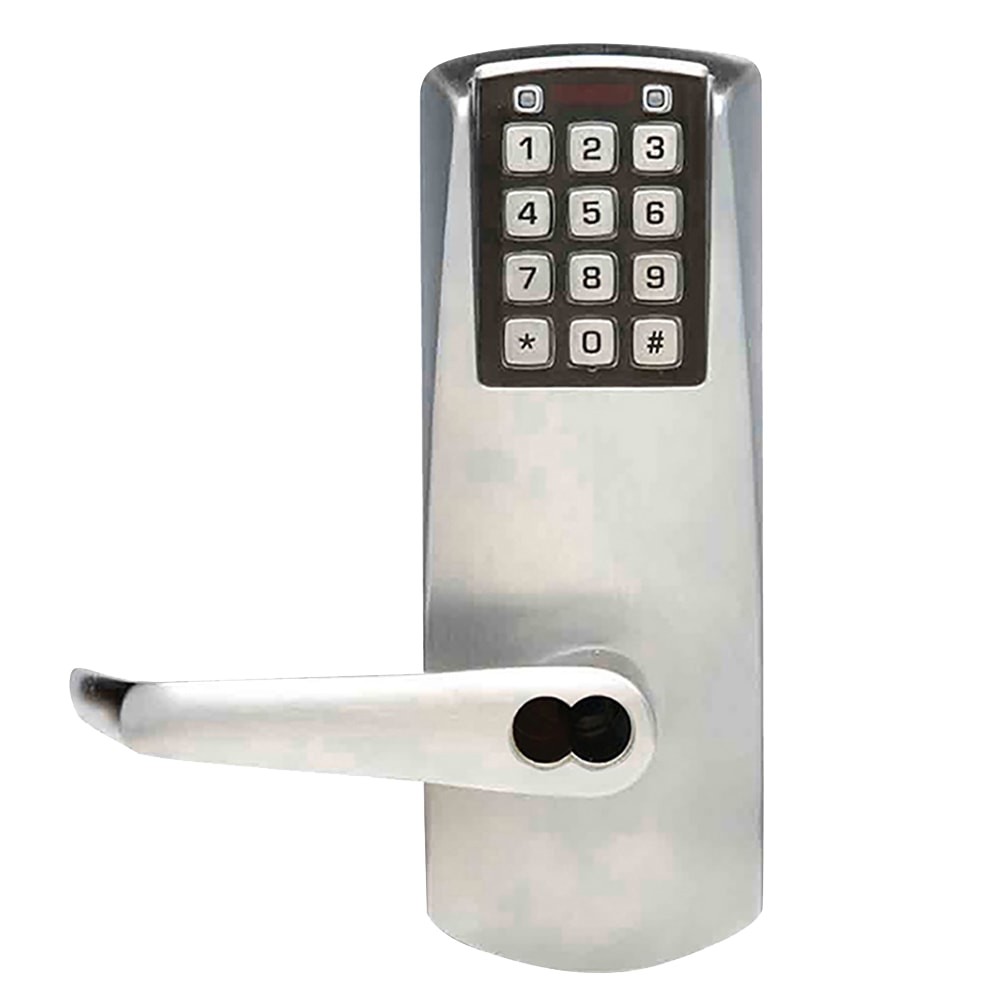

Kaba Access P2031BLL-626-41 Powerplex Cylindrical Lock
PowerPlex Locks require no wiring to or through the door, eliminating the risk of damage from pinched wires that can result in costly callbacks.
Numeric Keypad: Vandal resistant, solid metal pushbuttons
Handing:
- Non-handed, pre-assembled for left-hand door installation — easily changed in the field
Backset:
- Cylindrical: 2 ¾" (70 mm) backset, 2 ⅜" (60 mm) backset
- Mortise: 2 ¾" (70 mm) backset
- Exit Trim Model: Varies by exit device
Latches:
- Cylindrical Models: ½" (13 mm) throw latch, ¾" (19 mm) throw latch (optional)
- Mortise Models: ¾" (19 mm) latch, 1" (25 mm) dead bolt (optional)
Strikes:
- Cylindrical Models: Packaged standard with both ANSI A115.3 “T” Strike and A115.2 ASA Strike
- Minimum Stile Required: 5" (127 mm)
Key Override Options
- Key-in-Lever Cylinder: Kaba 1539 6-pin cylinder — Schlage “C” Keyway
- Interchangeable Core: Small format — Best and equivalent (6 or 7-pin length); cylinder not included
