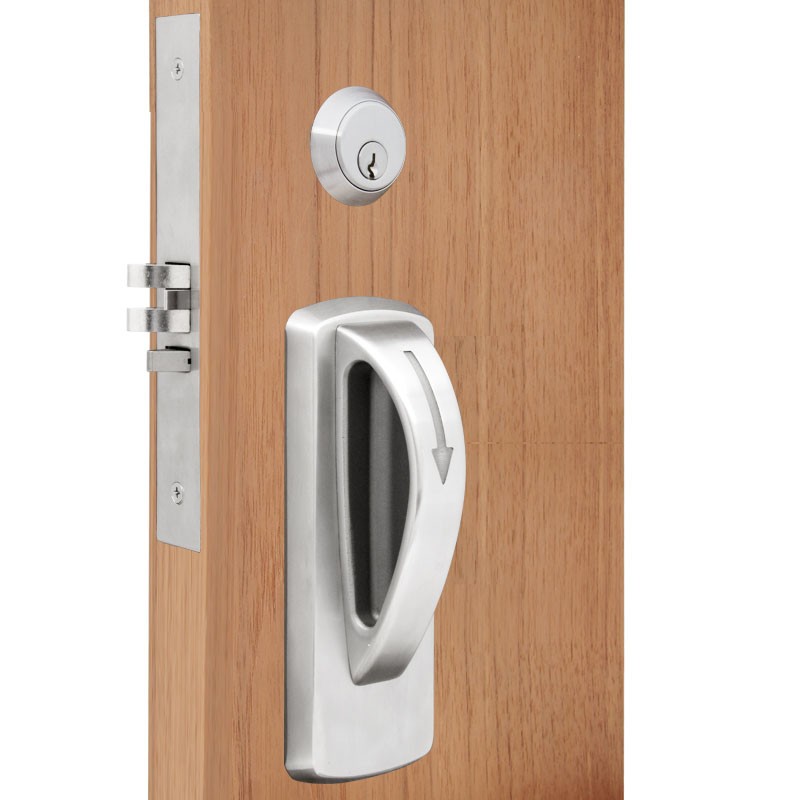

Town Steel ADA-5 Point Anti-Ligature Arched Mortise Lock Series

SPECIFICATION

• Application: For facilities housing patients in risk
• Door Thickness: 1-3/4" standard, other upon request
• Backset: 2-3/4"
• Finish: US32D
• Cover Plate: Stainless steel, 7-1/2" x 2-3/4" x 1/2"
• Arch Lever: Stainless steel
• Thumb Turn: Stainless steel, ligature resistant , ADA compliant standard
• Faceplate: Stainless steel, 1-1/4" x 8"
• Strike: Stainless steel, ASA, 1-1/4" X4-7/8"
• Mounting: Through-bolt, tamper resistant mounting screws, for wood and metal door
• Cylinder: Brass with stainless steel cover, 6pin, Schalge "C" keyway standard, 2 keys per cylinder
• Warranty: 10 years limited

CODE COMPLIANCE

• OMH: Accepted by New York State Office of Mental Health Patient Saefty Standard
• ANSI/BHMA: A156.13-2012 Grade 1 Certified
• UL/ULC: UL 10C listed 3-hour rating
• BAA: Meets requirements of the Buy American Act
• ADA: Meets requirements of the Americans with Disabilities Act
