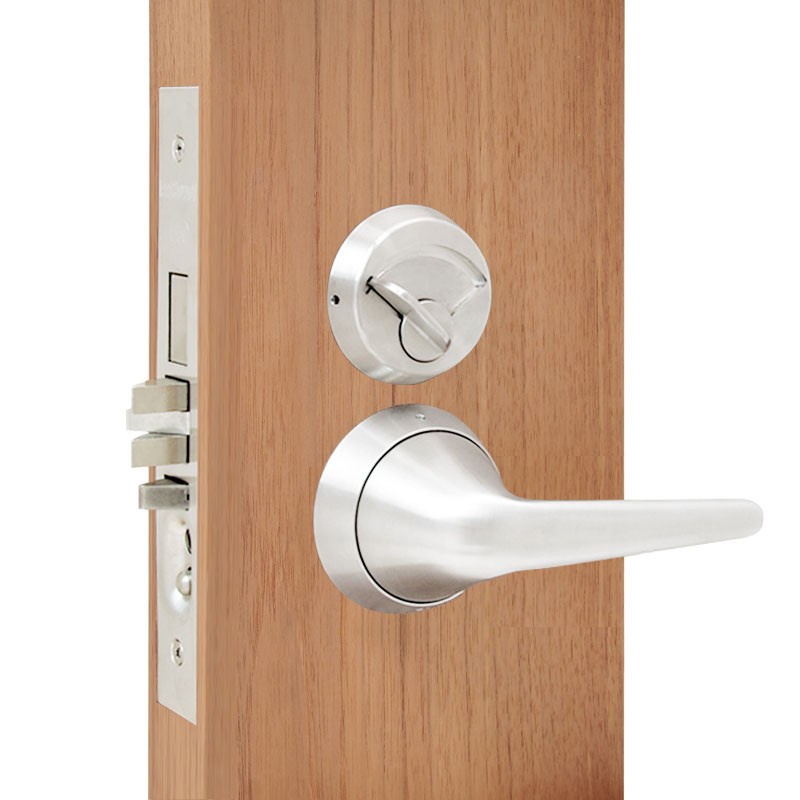

Town Steel ADA-Anti-Ligature Mortise Locks with Sectional Trim

SPECIFICATION

• Application: For facilities housing patient at risk
• Door Thickness: 1-3/4" standard
• Backset: 2-3/4"
• Handing: Field reversible
• Finish: US32D
• Rose: Stainless steel, 2-3/4" in diameter
• Lever: Stainless steel
• Thumb Turn: Ligature resistant, ADA compliant standard
• Faceplate: Stainless steel, 1-1/4" x 8"
• Strike: Stainless steel, ASA, 1-1/4" X4-7/8"
• Mounting: Through-bolt, tamper resistant mounting screws, for wood and metal door
• Cylinder: Brass with stainless steel cover, 6pin, Schalge "C" keyway standard, 2 keys per cylinder
• Warranty: 10 years limited

CODE COMPLIANCE

• OMH: Accepted by New York State Office of Mental Health Patient Safety Standard
• ANSI/BHMA: A156.13-2012 Grade 1 Certified
• UL/ULC: UL 10C listed 3-hour rating
• BAA: Meets requirements of the Buy American Act
• ADA: Meets requirements of the Americans with Disabilities Act
