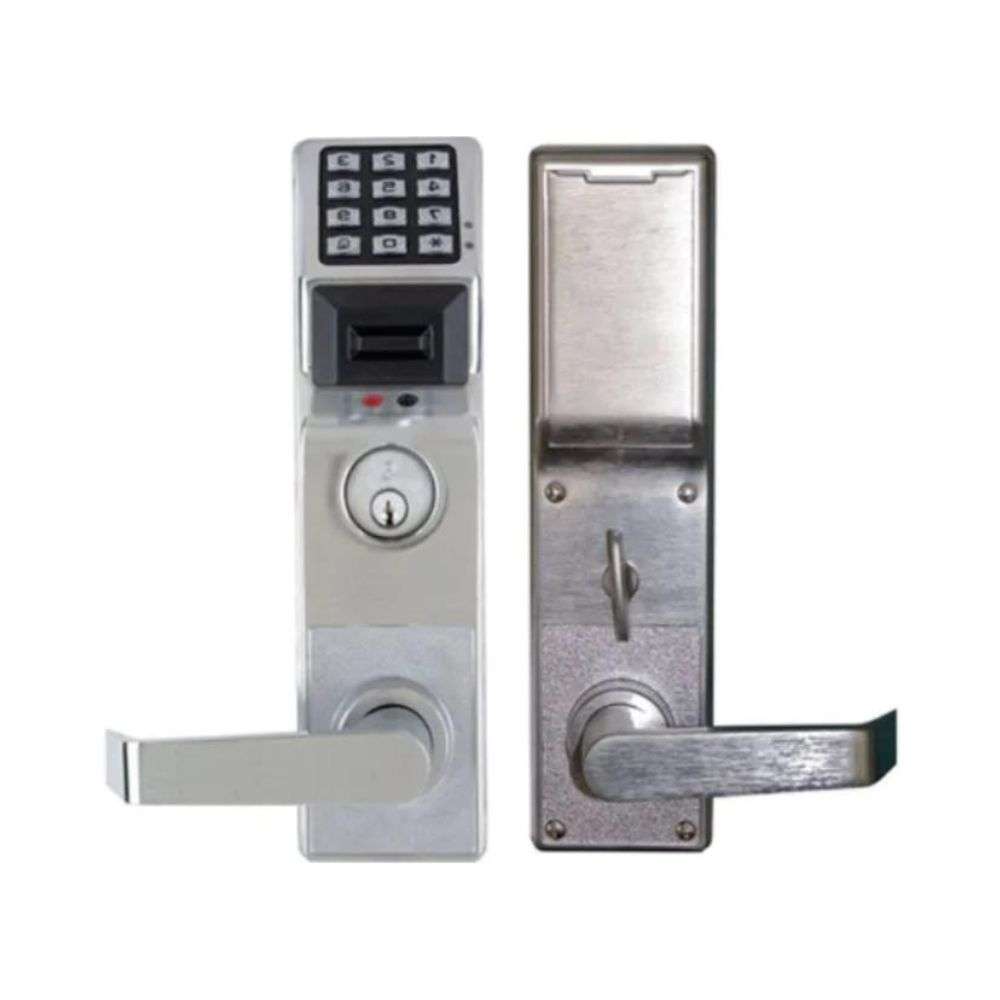

Alarm Lock Trilogy Mortise Lock with Privacy Feature RH

Alarm Lock Trilogy Mortise Lock with Privacy Feature RH

Features and Benefits:

• Satin Chrome finish
• Right hand straight lever deadbolt function Mortise Privacy Pin Lock
• Program data can be transferred to lock via AL-PCI2 (PC interface) or AL-DTMIII (data transfer module)
• 1-1/4" x 4-7/8" strike included as always
• 1-3/8" (3.5cm) mortise cylinder supplied
• Deadbolt function feature stainless steel deadbolt with 1" (2.55cm) projection, latchbolt with 3/4" (1.91cm) projection
• Product comes with 2-3/4" backset as standard
• Rugged clutch mechanism and Grade 1 durability ensure long life
• Privacy Feature- push button on inside of door to temporarily lock-out keypad codes (programmable option). Occupied and multi-status LED indicator, flashes when privacy session is active.
• Residency Feature- allows users to temporarily exit and close door and have the door remain unlocked until it is physically relocked with code
• 5AA Battery operated; 60,000 cycles, typical
• Individual, group or total multi-level user lockout codes available
• Alarm Lock can have up to 2000 different user codes
• Fingertip (keypad) or Window PC programmable
• 40,000 event audit trail log, stamped by date, time and user
• Weatherproof performance with temperature range of -31 degree to +151 degree F (-35 degree to +66 degree C)
• Visual and audible entry indicators on front of lock
• UL listed hardware
• 500 scheduled automatic lock/unlock events
• It easily fits into the door with thickness from 1-3/8" to 1-7/8" wide dimensions
