BEA 10MS41-DA Magic Switch, Touchless SS Double Gang, ACCESS
10MS41 - Stainless Steel Touchless Actuator Magic Switch by BEA
No-Touch Switch for Hands-Free, Germ-Free Activation!
BEA's MAGIC SWITCH Family provides a highly accessible and germ-free door activation without physical contact. Reduce touchpoints in fast-paced environments that depend on sanituation like healthcare, retail, industrial and commercial settings.
Using microwave technology, BEA's MS41 produces a detection field with a reliable and consistent transmission in interior and exterior applications. Capable of detecting a moving hand, cart of wheelchair. Plus, an adjustable hold time offers flexibility to meet ANSI standards.
The MS41 features rounded corners and a customizable illuminated ring with audible signaling. The durable design suits sterile, wash-down applications such as surgical, wash-down, clean room and pharmaceutical enviornments.
Features and Benefits:
- Faceplate material increases protection against outdoor weathering and daily cleaning.
- Visual illumination.
- Available in black, grey and white faceplate; options include jamb style, single-gang, double-gang and 6 inch round.
Durable Faceplate
Stainless steel faceplate increases durability and protection from daily cleaning.
Ideal For Harsh Environments
IP55 rated enclosure capable of use in industrial and extreme washdown environments.
High-Visibility
Animated or static Illuminated ring allows for high-visibility in low light areas.
Adjustable Detection Zone
Adjustable sensing zone from 4 to 24 inches (timed or toggle).
Activation Alerts
Adjustable audible alert setting, including silent-mode required for hospitals and other noise-sensitive environments.
Adjustable Hold Time
Configurable output hold time of 1/2 to 30 seconds allowing unique, user-defined device placement.
Technology Microwave - Doppler Radar.
Dimensions: Single Gang - 4 1/2" (H) x 2 3/4" (W) x 9⁄50" (T).
Radiated Frequency - 24.125 GHz.
Radiated Power Density - < 5 mW/cm2.
Detection Mode - Motion (bidirectional).
Detection Range - 4 - 24" (adjustable).
Output - Relay with switch-over contact (voltage-free).
- Max. Contact Voltage - 60 VDC / 125 VAC.
- Max. Contact Current - 1A (resistive).
- Max. Switching Power - 30 W (DC) / 60 VA (AC).
Output Hold Time - 0.5 - 30 s.
Supply Frequency - 50 - 60 Hz.
Supply Voltage:
- 12 - 24 VAC +10%.
- 12 - 24 VDC +30% / -10%.
Power Consumption - < 1.5 W.
Wire Gauge - 26 - 22 AWG.
Weight - 0.34 lbs.
Material - Stainless Steel.
Temperature Range - 4 - 131 F.
IP Rating - IP55.
- Apply silicone to achieve IP65
Certification:
- EMC: 2004 / 108 / EC.
- FCC: G9B-210161.
- IC: 4680A-210161.
*See users guide Available Graphic and Plate Size Options
Single-Gang Text and Hand Logo: 10MS41-S
Single-Gang Text and Accessibility Logo: 10MS41-SA
Single-Gang Plain: 10MS41-SP
Double-Gang Text and Hand Logo: 10MS41-D

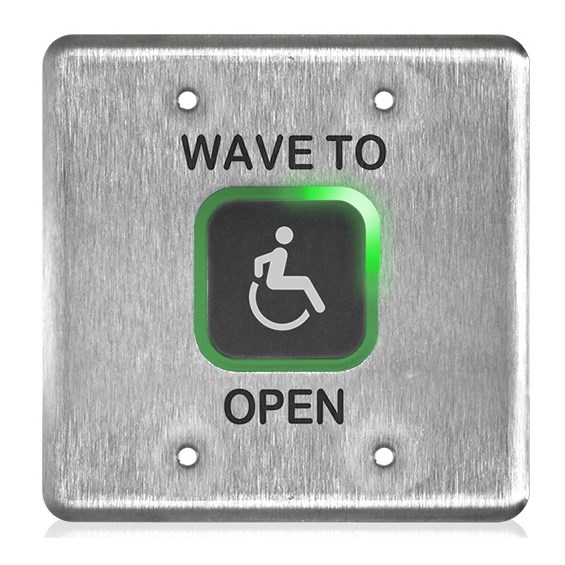

Double-Gang Text and Accessibility Logo: 10MS41-DA
Double-Gang Plain: 10MS41-DP
6-inch Round Text and Hand Logo: 10MS41-R
6-inch Round Text and Accessibility Logo: 10MS41-RA
6-inch Round Plain: 10MS41-RP
