HES 1600-CS-630 Electric Strike

SKU # HE/1600-CS-630

Read Review(s) | Log in to Review

HES 1600-CS-630 Electric Strike is an Electric Strike Complete Pac for Latchbolt & Deadbolt Locks

The HES 1600-CS-630 Electric Strike is an Electric Strike Complete Pac for Latchbolt & Deadbolt Locks. The HES 1600 Series heavy duty electric strike is the most advanced electric strike available on the market for cylindrical latchbolt and deadbolt locks.  It accommodates up to a 1” deadbolt with enhanced vertical cavity spacing and will accommodate every brand of cylindrical or mortise lock designed to work with a 4-7/8” strike plate.

Specifications include:

  • Complete Pac for Latchbolt & Deadbolt Locks
  • 1600 Series
  • Satin Stainless Steel
  • Stainless steel construction
  • Tamper resistant
  • The 1600CS offers a dynamic, low profile design with integrated adjustability and field configurable options.
  • Each Complete Pac conveniently pairs the reliabilty of an HES electric strike with the flexibility of multiple faceplates in a single simple package.

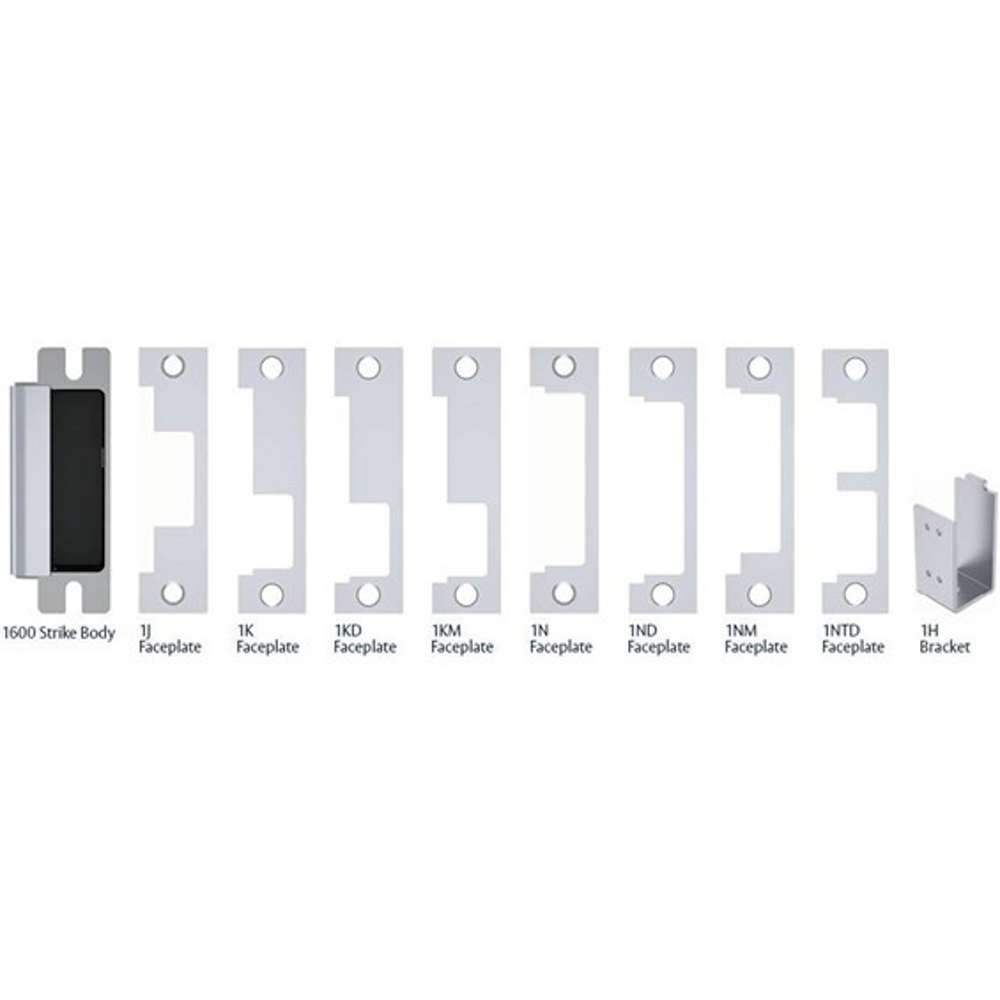

  • The 1600CS includes a 1600 strike body, 1LB faceplate kit for latchbolts and 1DB faceplate kit for deadbolts.
US$387.75

Description:

Description:

Application

  • Adjustability : Horizontal
  • Frame Material : Metal|Wood
  • Surface Mounting : Cutting required
  • Shim Type : Field Adjustable
  • Latchbolt Accommodation : 3/4" - 1"

Strength & Durability

  • Fail Safe | Fail Secure : Field selectable fail safe/fail secure
  • Grade : Grade 1
  • Tamper Resistant : Yes
  • Static Strength (lbs) : 1500
  • Dynamic Strength (ft-lbs) : 70
  • Endurance (cycles) : 1,000,000

Electrical

  • Voltage : 12/24
  • Monitoring Installation : Factory Configured|Field Installable
  • Monitoring Options : Dual Lock Monitors|Lock Monitor
  • General Specifications
  • Lock Type : Cylindrical Lock|Mortise Lock|Mortise Lock with Deadbolt
  • Handing : Non-handed

Certifications

  • ANSI/BHMA A156.31, Grade 1
  • ANSI/SDI 250.13 Certified
  • ASTM E152 Fire Door Compliant
  • ASTM E330 Certified
  • CAL FIRE, 3776-1654:0500
  • Florida Building Code Approved FL# 22400
  • NFPA-252 fire door Compliant
  • RoHS Compliant
  • UL 1034 burglary-resistant listed
  • UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies
  • UL294 Listed

General Specification

  • Fire Rating ~ Single Door : 3 Hour (Fail Secure Only)
  • Fire Rating ~ Double Door : 1.5 Hour (Fail Secure Only)

Specifications:

Specifications:

Click Here for HES Strike Compatibility Chart

Literature:

Literature:

Click Here for HES Electric Strike Overview
