HES Face Plate For Cylindrical Locks (Up To 5/8" Throw)

SKU # HE/791-630

Read Review(s) | Log in to Review

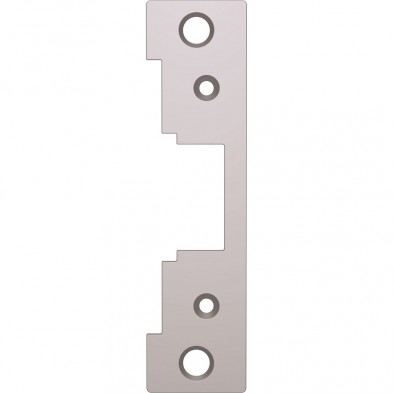

The HES 791-630 is a faceplate designed for use with cylindrical locksets up to 5/8" throw.
The unit has a satin stainless steel finish. Also known as: 791630, HE-791630, HES-791630
Features:
  • Satin satinless steel finish
  • 4-7/8" x 1-1/4" dimensions
  • Static strength 1,500 lbs.
  • Dynamic strength 70 ft-lbs.
  • Trim enhancer
Technical Specifications:
  • Fire Rated: No
  • Series: 7000 Series Faceplates
  • Finish: 630/US32D
  • Finish Description: Satin Stainless Steel
  • Grade: Grade 1
  • Country Of Origin: USA
  • BAA Qualified: Yes
  • Base Material: Stainless Stee
US$38.50
HES

You may also like

Description:

Description:

HES 791-630 is a 4-7/8" x 1-1/4" Faceplate for Folger HES 7000 series electric strikes. Stainless steel finish

  • Stainless steel construction
  • Tamper resistant
  • Static strength 1,500 lbs. (791 and 792 options)
  • Dynamic strength 70 ft-lbs. (791 and 792 options)
  • Static strength 1,000 lbs. (783S, 786S and 789S options)
  • Dynamic strength 50 ft-lbs. (783S, 786S and 789S options)
  • Endurance 1,000,000 cycles
  • Field selectable fail secure/fail safe
  • Accommodates preload (fail secure only)
  • Horizontal adjustment
  • Non-handed
  • Internally mounted solenoid
  • Strike body depth 1-11/16"
  • Plug-in connector
  • Trim enhancer (791 and 792 options)
  • Pocket adapter (786S and 789S options)
  • Dual voltage 12 or 24 VDC/VAC

Specifications:

Specifications:

Click Here for HES Strike Compatibility Chart
