8000C-12/24D-630 - Electric Strike by HES
The 8000 Series is a Complete One Box Solution!

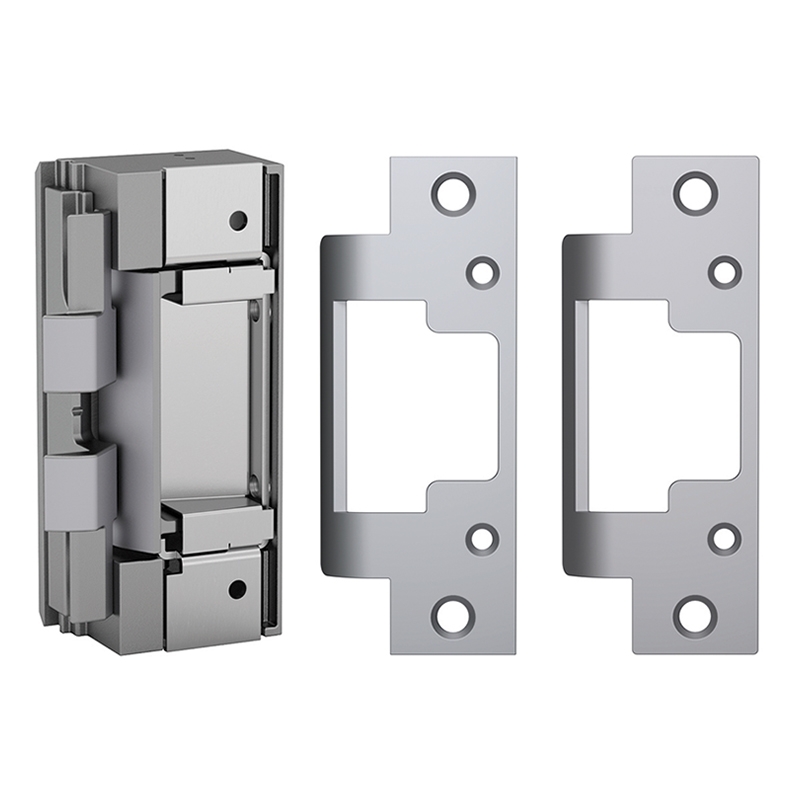

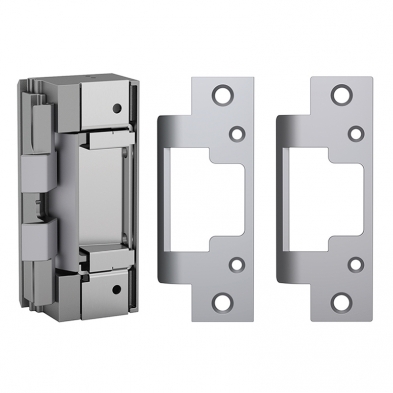

The 8000C Series is a compact, high performance electric strike featuring a unique concealed design for use with cylindrical locksets. No cutting on the frame is required. Simply remove the existing strike plate, adjust the vertical alignment feature to the latchbolt centerline, and install. Its strength is derived from a unique keeper pin locking design, enabling the 8000 to exceed the ratings of the frame, door and locking hardware. This field selectable fail secure/fail safe unit is easy to install and accommodates latchbolt up to 5/8" throw.
Each Complete Pac conveniently pairs the reliability of HES electric strike with the flexibility of multiple faceplates in a sngle simple package. The 8000C includes an 8000 electric strike body, the 801 faceplate for cylindrical locksets in ANSI metal jambs and the 801A faceplate for cylindrical locksets or spring latches in aluminum frames.
Features and Benefits:
- No cutting on frame required.
- Vertical adjustability to accommodate door sag and misalignment.
- Tamper resistant.
- Static strength 1,500 lbs.
- Dynamic strength 70 ft-lbs.
- Endurance 500,000 cycles.
- Field selectable fail safe/fail secure.
- Dual voltage 12 or 24 VDC/VAC.
- Includes a 801 and a 801A faceplate in the box.
- Non-handed.
- Internally mounted solenoid.
- Accommodates 1/2" - 5/8" cylindrical latchbolt (5/8" with 1/8" door gap).
- Strike body depth 1-1/16".
- Strike body width 1-7/16".
- Frame Application: Metal & Wood.
- Available in Satin Stainless Steel (630) finish.
Specification Data:
- UL 1034, burglary-resistant listed and suitable for outdoor use.
- UL 294 (6th Edition) listed.
- ANSI/BHMA A156.31, Grade 1.
- RoHS compliant.
- Patents: 5,934,720; 8,146,966; 8,157,302; 8,465,067.
Electrical:
.24 Amps @ 12VDC/VAC
.12 Amps @ 24VDC/VAC
DC continuous duty/AC intermittent duty only
PoE friendly
Fail Secure (Power-to-Unlock): Unlocked when energized. Locked when de-energized and during power failure.
Fail Safe (Power-to-Lock): Locked when energized. Unlocked when de-energized and during power failure.
