Kaba Mas CDX-10 #1 Strike High Security GSA Approved Door Lock
CDX-10 High Security Lock - Pedestrian Door Deadbolts.

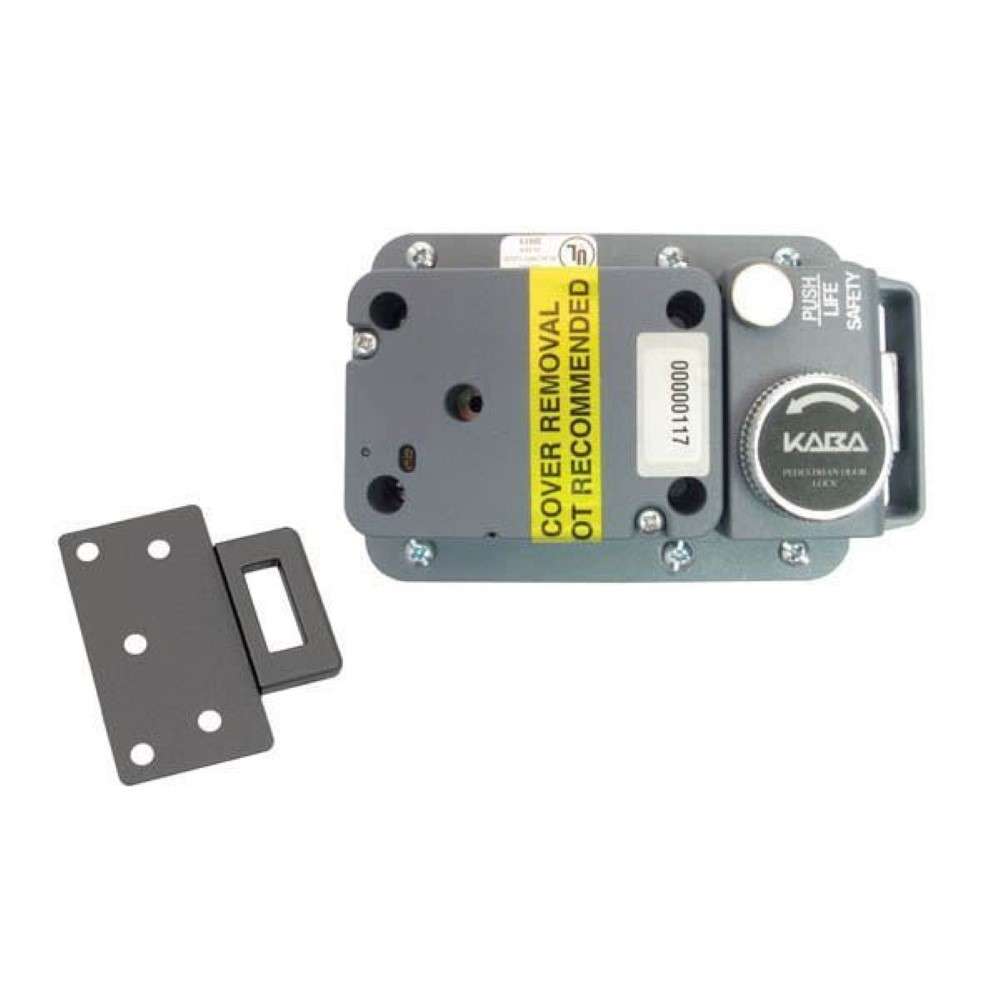

The Kaba Mas CDX-10 consists of an X-10 high security lock, Federal Specification FF-L-2740B, mounted on a deadbolt base plate. The base plate is surface-mounted to the inside face of the door. The deadbolt base plate has two essential features.
First, it provides a means of latching the bolt in the retracted position. This prevents the bolt from being inadvertently extended.
Second, turning the knob on the base plate will retract the bolt to allow egress.
The X-10 is self-powered using "green" PowerStar™ technology. Simply rotate the dial to power up the lock and enter the combination. Intuitive, visual controls guide the operator through programming and audit features. The X-10 provides all the benefits of high-security electronic locking while maintaining the reliability of a mechanical lock, independent of batteries or outside power sources.
Secure Tradition.
The X-10 represents the latest edition to this secure tradition.
Why the X-10?
The X-10 was designed and developed as a direct result of the latest revision to federal specification FF-L-2740, now Revision B. This revision calls for two distinctly different lock styles. Be aware that the characteristics and operating features of a "Style 1" and "Style 2" lock are not equal! The X-10 is the only self-contained lock and now, with the backlit LCD display, clearly represents the best overall value. The X-10 is the lock awarded the distinction of being approved for Style 1 Applications.
User Friendly Features.
The X-10 was designed with similar features and functions of its predecessor, the X-09. This minimizes the need for user training. The X-10 maintains the already familar product operating features. The X-10 uses the same "Green" self-powered technology - simply rotate the dial to power-up the lock. The propietary Kaba Mas self powered feature eliminates the concern of an unexpected failure due to battery life. The X-10 retains the same three security modes, along with a full complement of audit features.
What's New?
The following chart lists the enhanced features of the X-10 versus its predecessor the X-09:
| Feature |
X-09 |
X-10 |
Comments |
| Backlit Display |
N/A |
Standard |
Ease of Use |
| Lock Case |
Field Assembly |
Through Case Mounting |
Ease of Installation, Sealed Case |
| Serial Number |
Six-Digit |
Eight-Digit |
X-0 Series, 1 Million Sold |
| Lock Motor |
Stepper Motor |
DC Motor |
New Lock Design |
| Lock Cable Orientation |
3 Hrs. Behind Bolt |
Opposite of Bolt |
New Lock Design |
| Lock Bolt Options |
Flush & Extended - 4 Options |
One Bolt Flush - Tapped |
Enhanced Design, Fewer Parts |
| Product Identification "Dial Ring" |
Factory Location, Month & Year Made |
Product ID, Location, Month & Year Made |
Product Differentiation |
| ID Stamp Location |
9:00 |
8:00 |
Product Differentiation |
The X-10 has been designed to enhance user friendly features, while improving security. For example, the lock case incorporates a through case mounting feature to imporve to improve ease of installation while protecting the lock's internal electronics and mechanisms. The lock case has a security seal which provides a visible indication the lock has been accessed.
CDX-10 Combination Deadbolt lock for pedestrian doors with a NON drill resistant (Class N) dial ring mounting plate.
