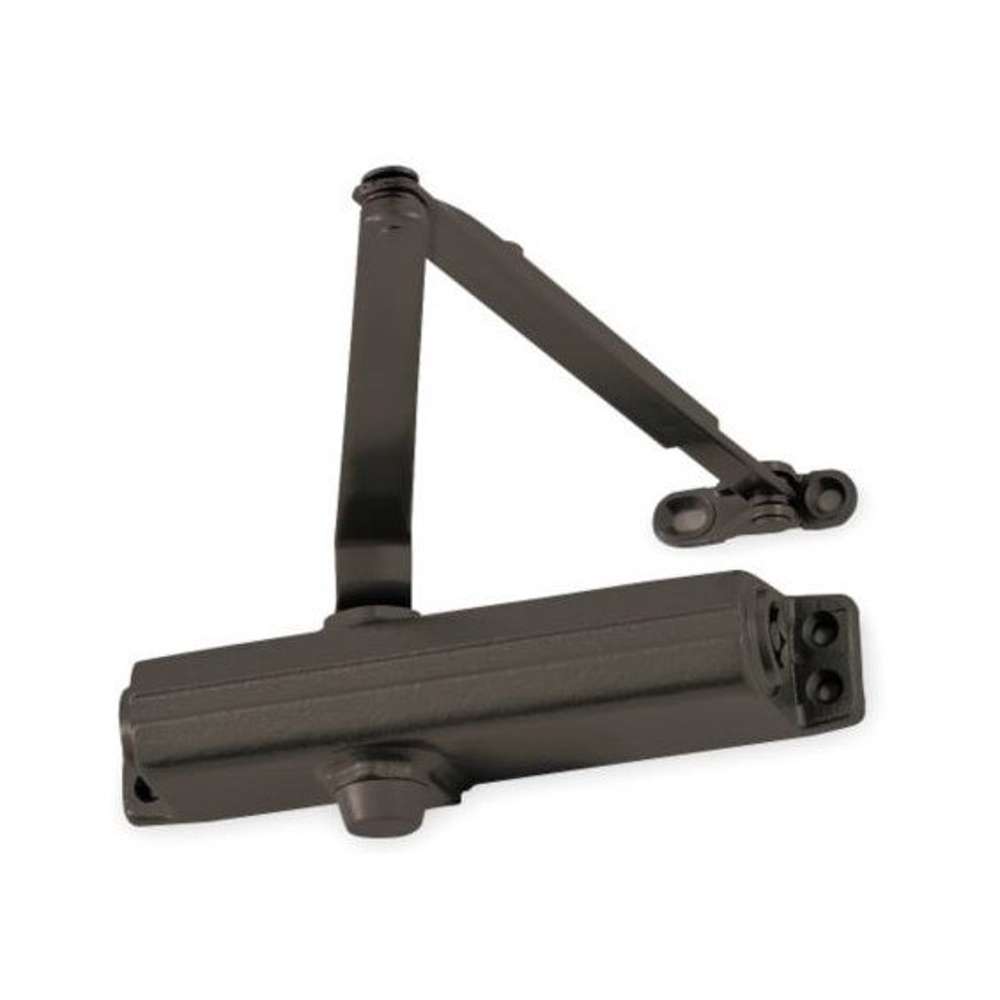

LCN Surface Mounted Door Closer with Parallel Arm Bracket

SKU # LC/1261-RWPA-695

Read Review(s) | Log in to Review

LCN Surface Mounted Door Closer with Parallel Arm Bracket

1260 Series Surface Mounted Closers
Combines features of both the 1070 and 1370 LCN Series.
The 1260 Series is a versatile and economical cast iron clsoer with dual mounting capabilities. The 1260 has adjustable spring sizes 1-5 and mounts to the most common commercial footprint.

  • Standard 1260 series closer shipped with regular arm, a shaft cover, and self reaming and tapping screws. See 1260 Series catalog pages 8-9 for options
  • Non-sized (1-5) cylinder is adjustable for interior doors to 4’6” and exterior doors to 3’6”
  • Closer mounts hinge side, top jamb and parallel arm on either right or left swinging doors
  • Mounts to most common commercial footprint (3/4” x 9 1/16”)
  • Closer meets ADA requirements. See 1260 Series catalog page 10
  • Optional Quick Fix™ bracket kit
  • Standard or optional custom powder coat finish
  • Optional SRI primer for installations in corrosive conditions
  • Optional Slim Line cover
US$258.30

Description:

Description:

LCN Surface Mounted Door Closer with Parallel Arm Bracket

LCN 1261-Rw/PA Grade 1 Surface Door Closer, Regular Arm, PA Shoe, Push or Pull Side Tri Mount Mounting, Size 1 to 5, No Cover, All Weather Fluid
The 1260 Series is designed for light- to medium-duty applications as a fit for the most common commercial footprint, meeting ANSI/BHMA A156.4 Grade 1 and ADA reduced opening force requirements. The 1260 Series is cUL listed and UL listed for self-closing doors without hold-open and boasts a 20-year limited warranty.

Body construction

  • Cast iron cylinder with full-complement bearing
  • 1-3/8 ” diameter piston
  • Heat-treated steel pinion journal

Quality and Durability

  • All-weather fluid
  • Forged steel arm
  • 20-year warranty

Installation

  • Universal non-handed
  • Standard Tri-Pack for Regular Pull Side, Top Jamb or Parallel Arm Mounting
  • Peel-n-stick template and optional Quick Fix bracket kit
  • Adjustable spring sizes 1-5



Specifications:

Specifications:

Click Above to See Full Finish Chart

Literature:

Literature:

Click Here for LCN 1000 Series Catalog

Click Here for LCN Automatic Operator Templates

Product Videos:

Product Videos:
