LCN Pacer Concealed Narrow Transom Closer with Track Arm

SKU # LC/2031-STD-689-RH

Read Review(s) | Log in to Review

LCN Pacer Concealed Narrow Transom Closer with Track Arm

The heavy-duty 2030 Series Pacer® closers are designed for concealment in a narrow minimum 1-3/4” aluminum transom, meeting ANSI/BHMA A156.4 Grade 1 and the American Disabilities Act (ADA) reduced opening force requirements.

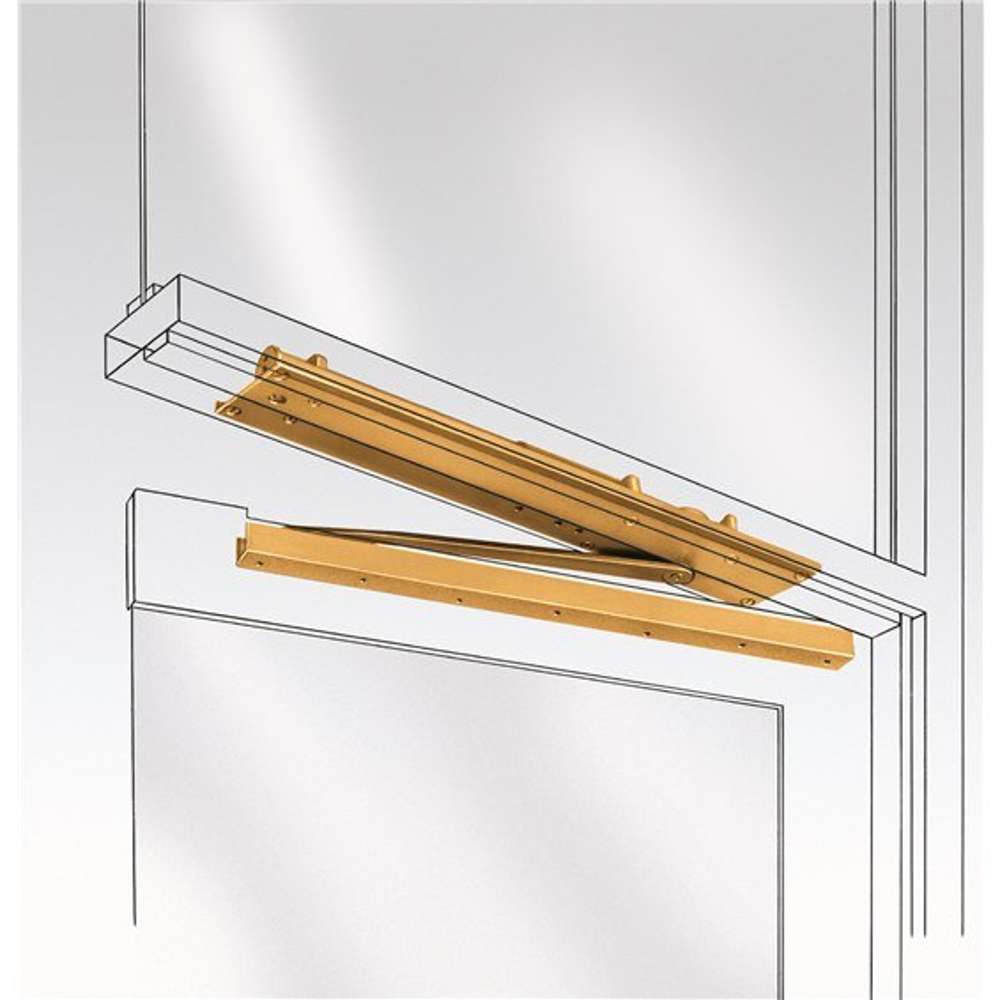

The 2030 Series mounts in the frame with a concealed track in the door

  • Includes: Standard cylinder with mounting plate, standard arm, standard track, and screws (wood and machine)
  • Mounting: Concealed (in tube); aluminum frame requires minimum 1-3/4″ (44 mm) x 4″ (102) mm) tube
  • Certifications: Grade 1 – ANSI A156.4, UL 10 C, ADA, 100 hour salt spray, meets BAA – Buy American Act
US$989.73

Description:

Description:

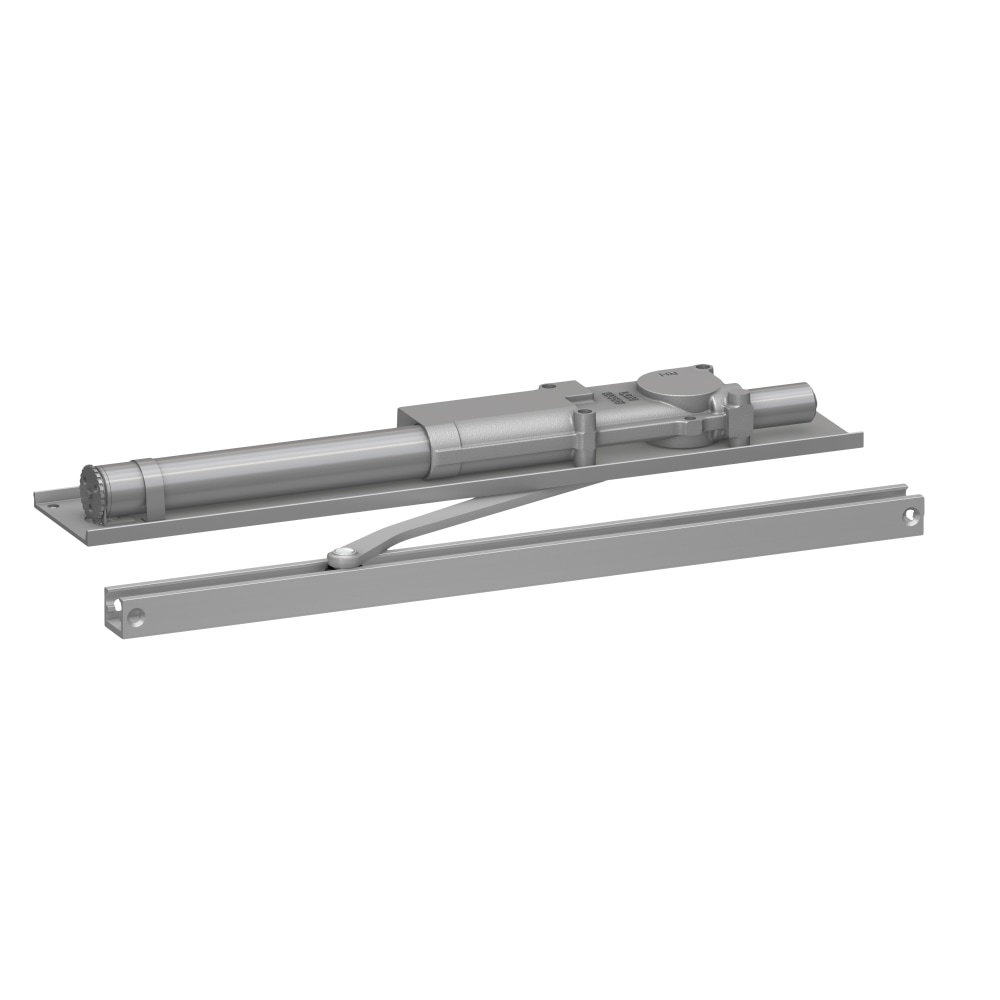

LCN Pacer Concealed Narrow Transom Closer with Track Arm

The LCN 2030 Series Pacer® is a heavy duty closer designed to fit in a narrow, minimum 1 3/4” aluminum transom.
The 2030 Series features a single lever arm and roller assembly provide smooth, quiet door control and the choice of finishes and track functions meet virtually all architectural requirements.

  • Standard 2030 series closer shipped with standard arm, standard track, mounting/finish plate, and wood and machine screw pack
  • Sized cylinders for interior doors to 4’6” and exterior doors to 3’6”
  • Handed for right or left swinging doors
  • Aluminum frame requires minimum 1 3/4” (44 mm) x 4” (102 mm) tube
  • Closers to meet ADA requirements
  • Standard or optional custom powder coat finish
  • Optional plated finish on arm, fasteners and finish plate

Specifications:

Specifications:

Click Above to See Full Finish Chart
