Lcn 4040Xp Eda Dkbrz Closer

SKU # LC/4040XP-EDA-695

Read Review(s) | Log in to Review

Lcn 4040Xp Eda Dkbrz Closer

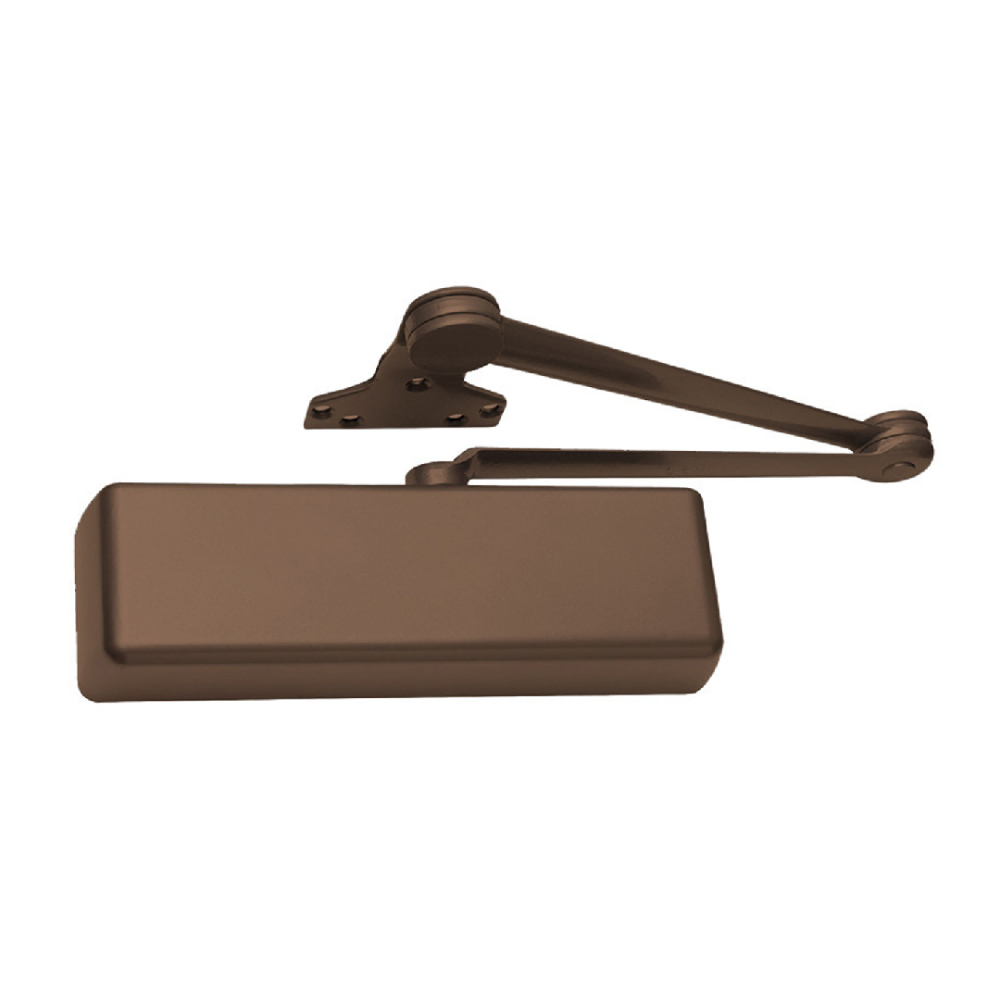

LCN 4040XP EDA Grade 1 Surface Door Closer, Extra Heavy Duty Arm, Full Cover
Generally regarded as the world’s top heavy-duty door closer and often duplicated, the 4040XP is LCN’s most durable and flexible heavy-duty closer designed for institutional, industrial, commercial, and other demanding high traffic applications. High-traffic doors call for heavy-duty closers – closers that won’t let you down no matter how many people go through the door or how hard they kick, push or slam against it. And when it comes to heavy-duty closers, no other closer performs like the LCN 4040XP.

  • Designed for commercial, industrial and institutional applications
  • Adjustable Spring Size 1-6, includes Patented Green Dial
  • For interior doors to 5’0″ wide and exterior doors to 4’0″ wide
  • Peel-n-Stick templates – 2-1/4″ x 5″ Mounting Hole Pattern
US$494.55

Description:

Description:

Lcn 4040Xp Eda Dkbrz Closer

Ease of Installation and Adjustment

  • Tight tolerances in manufacturing for accuracy and precision
  • Peel-n-stick template for quick and accurate installation
  • Updated! LCN Green Dial to take the guesswork out of spring power adjustments
  • New! Patent-pending positive stop to improve staking and prevent the screw from being backed out
  • New! Patent-pending regulation valve indicators that add a visual reference for screw adjustment location
  • New! Labeled regulation valves and diagram of door swing to make adjustments faster, easier and consistent

Quality and Durability

  • Cast iron cylinder for rugged performance, longer life and maximum control
  • Single-piece, heat-treated forged steel arms to withstand bending and breaking
  • Heat-treated 1-1/2" diameter piston for extra hardiness and strength
  • Double heat-treated steel pinion with 11/16” journal diameter for greater wear-resistance
  • Full complement bearings with minimum 0.5” height that wear more evenly and are less susceptible to leakage
  • All-weather Liquid X fluid for consistent performance through every season, regardless of temperature changes
  • Independent speed adjustments for greater door control
  • Non-PRV (pressure relief valve) design to minimize risk of property damage, injury, increased maintenance and liability exposure
  • Updated! Redesigned snap-fit cover with patent-pending retention fit
  • Powder coat finish that lasts longer than spray lacquer
  • 30-year warranty

Flexibility

  • Universal non-handed design that enables it to fit more applications with a single product
  • Full ranges of mount and arm options, including hinge pull side, push side top jamb and push side parallel arm
  • Adjustable spring sizes 1-6
