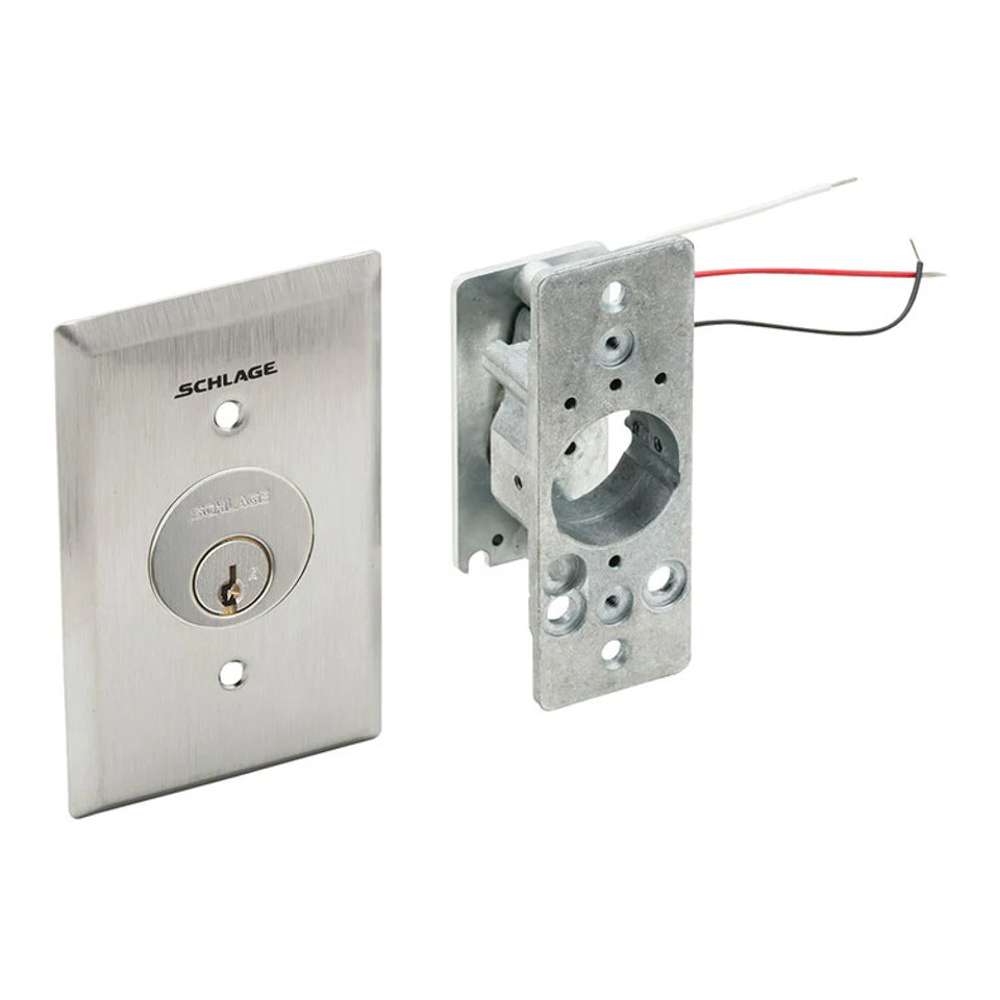

Schlage Electronics Momentary Keyswitch-SPDT-Stainless Steel

SKU # LN/653-05

Schlage Electronics Momentary Keyswitch-SPDT-Stainless Steel
  • Innovative Magnetic Spring Design: Quick configuration for key turn direction and action type.
  • Versatile Installation: Fits single gang and narrow stile mounts.
  • Durable Build: Heavy-duty plate with weather-resistant cover.
  • Visual Indicators: Features red/green LED lights.
  • Enhanced Security: Includes anti-tamper switch and Schlage Everest cylinder.
  • Multiple Finishes: Standard satin stainless steel with additional architectural finish options.
  • Electrical Specifications: Operates at 12/24 VDC, 5A at 30VDC contact rating.
  • Compliance: UL 294 Listed for safety standards
US$197.78

Description:

Description:

Schlage Electronics Momentary Keyswitch-SPDT


The Schlage Electronics Momentary Keyswitch-SPDT in stainless steel is a robust and versatile access control component designed for various security applications. Part of the highly regarded Schlage 650 Series, this keyswitch features an innovative magnetic spring design. This technology enables installers to easily configure the keyswitch for either clockwise or counterclockwise turn directions and select between momentary or maintained actions, offering significant flexibility and ease of use.

The keyswitch is suitable for both single gang and narrow stile mounting, making it adaptable to a wide range of installation scenarios. It includes a heavy-duty plate and a weather-resistant cover, ensuring durability and reliable performance even in harsh environments. The inclusion of red and green LED lights provides clear visual indicators of the switch status, enhancing operational clarity.

Security is a key focus with this keyswitch, as it comes equipped with an anti-tamper switch and the Schlage Everest cylinder, known for its high level of security. The standard finish is satin stainless steel, but there are five additional architectural finishes available, allowing the keyswitch to complement various design aesthetics.

Operating on 12/24 VDC with a contact rating of 5A at 30VDC, this keyswitch is compatible with a variety of access control systems. It meets UL 294 standards, ensuring a high level of safety and reliability. The Schlage 650 Series keyswitches are an excellent choice for those seeking a dependable, flexible, and aesthetically pleasing solution for their security needs​
