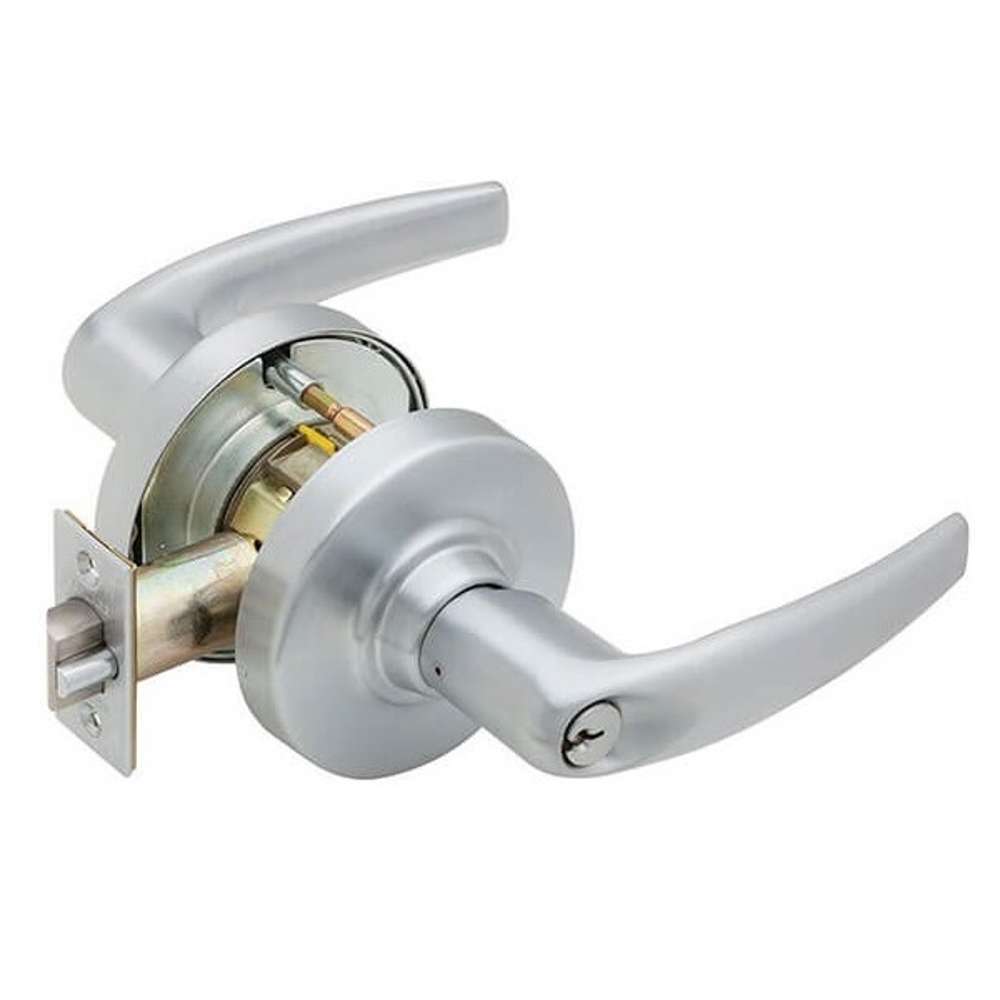

Schlage ALX80L-ATH-626 Athens Storeroom Satin Chrome Lever
ALX Series Grade 2 Cylindrical Lock.
A first of it's kind, Schlage ALX Series is modular in design creating new ways to order, configure and utilize a lock. Whether purchased configured or as chassis, function, and lever kits, you gain extreme installation simplicity, exceptional durability, expanded cylinder suport, and maximum flexibility.
The proven AL Series has evolved to ALX.
As a Grade 2 lock, the AL Series has always offered a combination of strength and durability alongside Schlage trusted key system options at a price point favorable to any application. Though these qualities remain, the lock has changed. ALX Series' features now deliver flexiblity and value beyond strength and security. X Factor qualities, born from modular design, define a lock that exceeds expectations. AL Series' evolution to the ALX Series is a revolution in lock design.
Features and Benefits
- Exceeds Grade 2 Strength. Stainless steel latchbolt.
- One chassis fits all functions and cores to minimize inventory.
- Captured screws in latch, strike and inside spring cage eliminate small, loose parts.
- Accommodates 1-3/8" to 1-3/4" door thickness with minimal chassis adjustment.
Door Handing
The Schlage Commercial ALX-Series Levers are reversible.
ADA-Compliant Products
In compliance with the American National Standard Institute (ANSI A117.1) and the Americans with Disabilites Act (ADA), Schlage Lock Company offers a wide selection of locks designed for the needs of the physically challenged. This act is designed to provide protection for people with disabilites.
The intent of ADA is that owners of certain types of buildings must remove barriers and provide people with disabilities with access equal to, or similar to, that available to the general public.
All Schlage AL-Series Locks come standard with Square Corner 2-3/4" Backset Latch and Square Corner Strike.
Door Range: 1-3/8" - 1-3/4".
Latch: 1-1/8" x 2-1/4", Square Corner Faceplate, 1" housing diameter, 1/2" throw.
Strike: 1-1/4" x 4-7/8", ANSI, Square Corner, No Box.
Backset: Standard 2-3/4" Backset.
Certification: ANSI/BHMA Certified A156.2-2011, Series 4000, Grade 2, UL Listed for 3-hour fire door.
Special Orders: For pricing on any Schlage Grade 1 ALX-Series Levers not on this page please contact Taylor via e-mail (sales@taylorsecurity.com) or call +1 (800) 676-7670.
