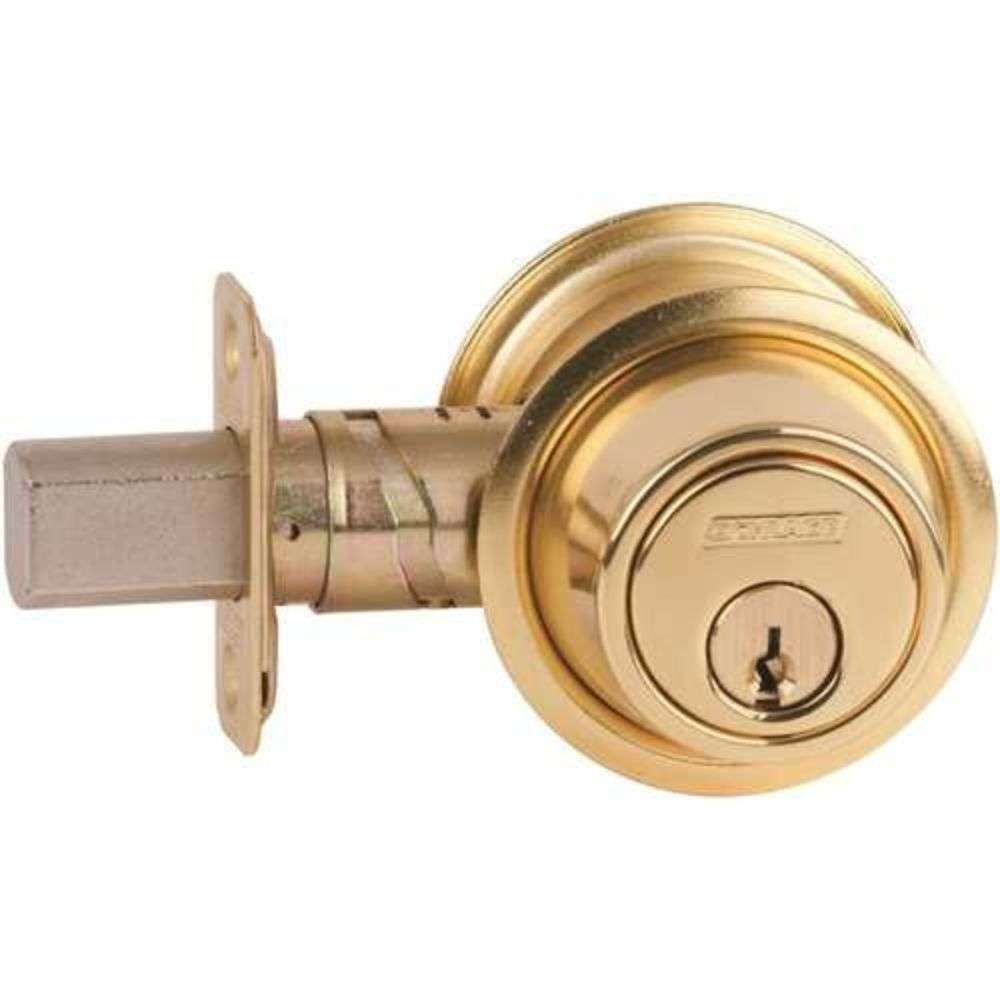

The Schlage B560/B562 Series is a Grade 2 deadbolt that is part of the Schlage Commercial B-Series Collection.
Function: The Schlage B560/B562 Series Deadbolt is available in Single Cylinder (B560) and Double Cylinder (B562) function.
Finish: The Schlage B560/B562 Series Deadbolt comes in Brass (605), Satin Brass (606), Antique Brass (609), Oil Rubbed Bronze (613), Satin Nickel (619), Polished Chrome (625), and Satin Chrome (626) finish.
Bigger Bolt - Bold diameter is 10% larger than typical bolts for added security. Secure - Integrated anti-pry shield behind latch prevents picking and holds lock securely in place during installation. Tougher - Thicker metal security strike backup on jamb side has third screw inside the cup for deeper anchoring into the door. Solid - Zinc bolt has hardened steel pin inside that spins in response to sawing attack, and can't be cut through.
All Schlage B560-Series Locks come standard with Square Corner Adjustable Latch (SCAL) and Square Corner Strike (RCS).
Door Range: 1-3/8" - 1-3/4" (35mm - 44mm).
Backset: Dual Backset Latch; adjustable for 2-3/8" or 2-3/4" backset.
Latch: 1-1/8" x 2-1/4" (29mm x 57mm) Square Corner, 1" (25mm) housing diameter, 9/16" (14mm) throw.
Strike: 1-1/8" x 2-3/4" (29mm x 70mm) Square Corner Faceplate.
