Function: The Schlage B660/B662 Series Deadbolt is available in Single Cylinder (B660) and Double Cylinder (B662) function.
Finish: The Schlage B660/B662 Series Deadbolt comes in Brass (605), Satin Brass (606), Antique Brass (609), Satin Bronze (612), Oil Rubbed Bronze (613), Satin Nickel (619), Polished Chrome (625), and Satin Chrome (626) finish.

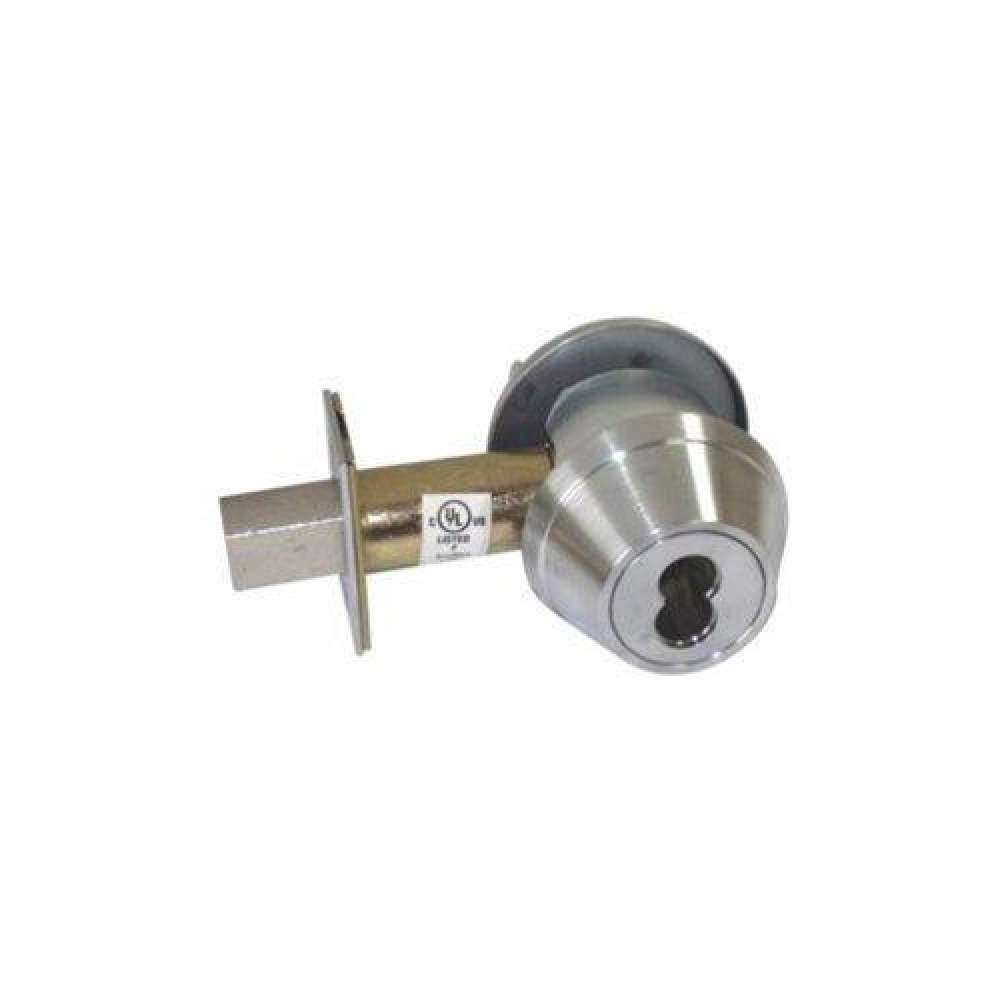

The B660 Deadbolt is Schlage's toughest heavy duty Grade 1 commercial deadbolt. B660 Series deadbolts have solid brass or bronze cylinder collars, a security shield to prevent "ice pick attacks" and hardened steel ball bearings to protect the two heavy 1/4" mounting bolts from drilling attacks. Furnished with conventional cylinder standard. Also available with full size interchangeable core cylinder or small format interchangeable core (SFIC) cylinder.
All Schlage B660-Series Locks come standard with Square Corner Adjustable Latch (SCAL) and Square Corner Strike (RCS).
Door Range: 1-3/4" - 2" (44mm - 51mm).
Backset: 2-3/4" fixed backset.
Latch: 1-1/8" x 2-1/4" (29mm x 57mm) Square Corner, 1" (25mm) housing diameter, 1" (25mm) throw.
Strike: 1-1/8" x 2-3/4" (29mm x 70mm) Square Corner Faceplate.
