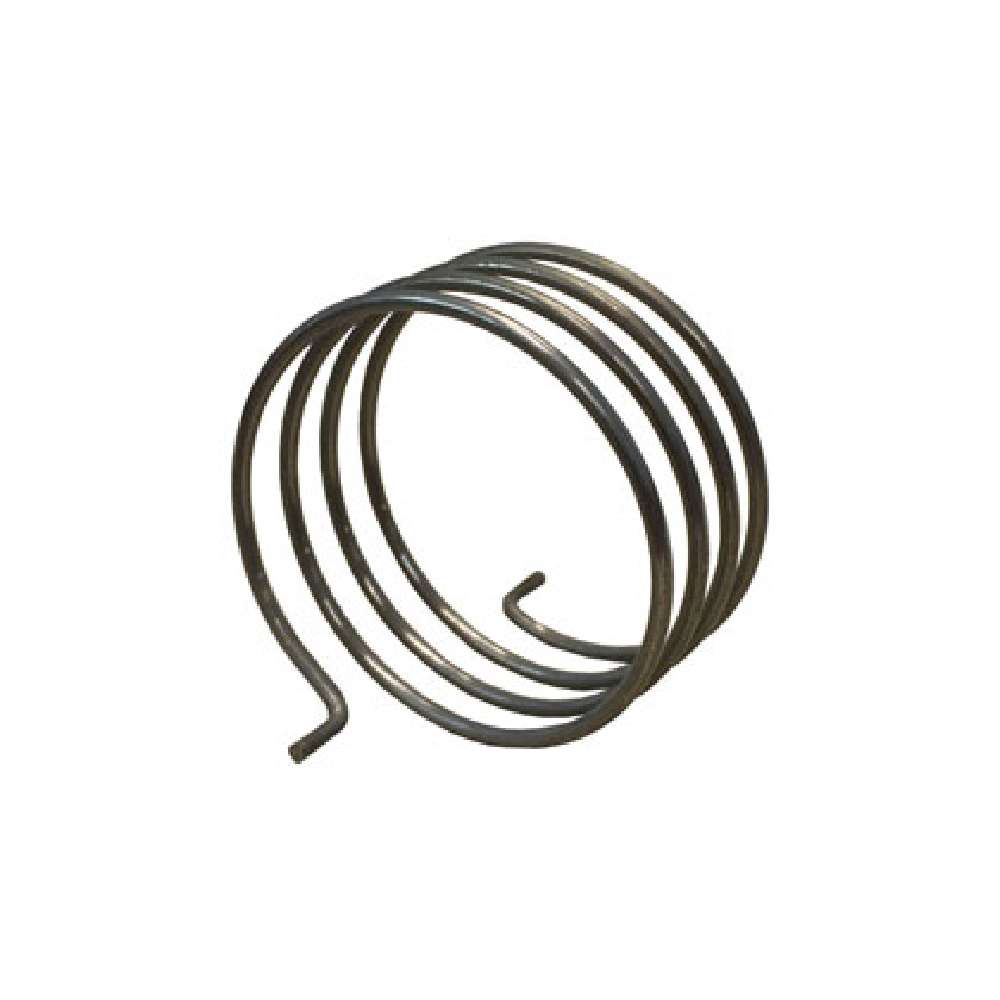

Kaba Simplex Lever Coil Return Spring, RH
Simplex Mechanical Pushbutton Locks eliminate problems and costs associated with issuing, controlling, and collecting keys and cards.
The Simplex 8100 Mechanical pushbutton lock, with mortise locking device options and lever handle, provides exterior access by combination, while allowing free egress.
Product Details
No Battery:
Fully mechanical lock eliminates the material and labor expense of battery replacements
Backset: 2¾" (70 mm)
Latch: ¾" (19 mm) two-piece anti-friction latch; 1" (25 mm) optional deadbolt
Minimum Stile Recommended: 5" (127 mm)
Strike: 4⅞" (124 mm) L x 1¼" (32 mm) W x ¼" (6 mm) D Deadbolt/Latch mortise strike plate
Durability: Weather resistant
Interchangeable Cores: Small format—Best and equivalents (6 or 7-pin length); core not included
Removable Cores: Large format—Medeco/ASSA/Yale/Abloy (5 or 6-pin length), Corbin Russwin, Schlage, and Sargent; core not included
Door Preparation: Easily installs on wood or metal doors. Standard (86) mortise preparation
Door Thickness: 1¾" (44 mm) to 2¼" (57 mm)
Accessibility Standard: Americans with Disabilities Act (ADA); fixed ADA-compliant levers
Durability: Weather resistant
Fire Rating: 3-hour UL/ULC fire rating for "A" labeled doors
Warranty: 3-year warrantyBackset: 2¾" (70 mm) or 2⅜" (60 mm) backset
Locking Device:
Mortise with 1" (25 mm) deadbolt, ¾" (19 mm) two-piece anti-friction latch
Mortise with ¾" (19 mm) two-piece anti-friction latch
Number of Codes:
Single access code—one easy-to-manage code for all users
Programming:
Lock is easily programmed via keypad without removing lock from the door
Handing:
Factory-handed; not field reversible
Key Override (Optional):
Small format interchangeable cores, large format removable cores
Operation Mode:
Pushbutton Access
Passage (select models)—allows access without using the lock entry code. Feature activated from the inside with a thumbturn or key (included with all passage feature models).
Deadbolt (select models)—added security of 1" deadbolt. Access permitted by combination or key override.
Lockout (all models)—disables the lock from the inside so that the entry codes cannot be used to gain access. Access is permitted using key override.
Technical Details
Construction: Cast front housing; unified trim plate; fixed ADA—compliant levers
Numeric Keypad: Vandal resistant, solid metal pushbuttons
Standard Finishes:
Antique Brass 05 (609)
Satin Chrome 26D (626)
Optional Finishes:
Bright Chrome 026 (625)
Bright Brass 03 (605
Strike:
Models 7102 and 7108: Flat deadbolt strike plate
Model 7104: Curved lip strike plae
Model 7106: Box strike for in-swing doors and flat strike for out-swing doors
Minimum Stile Required: 4" (102 mm)
Installation:
1⅜" (35 mm) diameter through bore
1" (25 mm) diameter cross bore
¾" (19 mm) through bore
2 x ¼" through bores
Door Thickness: 1⅜" (35 mm) to 2¼" (57 mm), wood or metal
