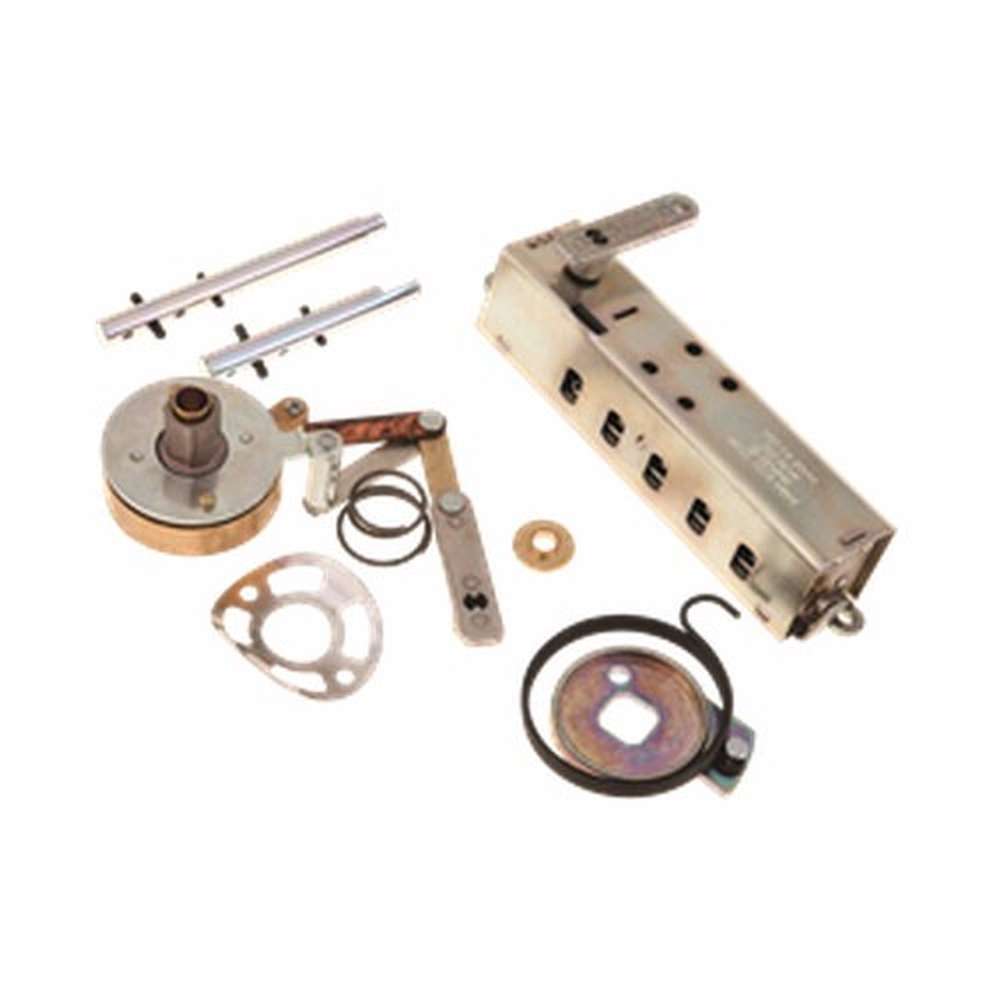

Kaba Access 203035-000-01 1000 Series Service Kit
Simplex Mechanical Pushbutton Locks eliminate problems and costs associated with issuing, controlling, and collecting keys and cards.
The Simplex L1000 Series provides exterior access by combination, while allowing free egress. This mechanical lock, with lever option, elimates the material and labor expense of battery replacements, has a single access-code and is programmed via the keypad without removing the lock from the door.
Locking Device:
Cylindrical latch with 3-hour UL/ULC fire rating on "A" labeled doors
Number of Codes:
Single access code—one easy-to-manage code for all users
Programming:
Lock is easily programmed via keypad without removing lock from the door
Handing:
Factory-handed; not field reversible
Key Override (Optional):
Interchangeable Cores: Small format—Best and equivalents (6 or 7-pin length); core not included
Removable Cores: Large format—Medeco/ASSA/Yale/Abloy (5 or 6-pin length); Corbin Russwin (6-pin length); Schlage, and Sargent; core not included
Operation Modes:
Pushbutton Access
Passage (select models)—allows access without using the lock entry code. Feature activated from the inside with a thumbturn or key (included with all passage feature models).
Privacy (select models)—disables the lock from the inside so that the entry code cannot be used to gain access. Access is permitted using the key override only when in this mode.
Economical:
A cost effective access control solution
Technical Details
Construction: Heavy-duty cylindrical lock housing with cast front housing, unified trim plate, and fixed ADA-compliant levers
Door Preparation: Easily installs on wood or metal doors. ASA 161 door preparation with additional through holes.
Door Thickness: 1⅜" (35 mm) to 2¼" (57 mm)—Pre-assembled to accommodate 1⅝" (41 mm) to 2" (51 mm) doors
Numeric Keypad: Vandal resistant, solid metal pushbuttons
Handing: Factory-handed; not field reversible
Backset: 2¾" (70 mm), 2⅜" (60 mm)
Latch: ½" (13 mm) throw latch, ¾" (19 mm) throw latch (optional)
Minimum Stile Recommended: 5" (127 mm)
Strike: Standard strike plate; ASA strike plate
Accessibility Standard: Americans with Disabilities Act (ADA); fixed ADA-compliant levers
Durability: D.O.D. Compliant 5220.22M for supplemental access control; weather resistant
Fire Rating: 3-hour UL/ULC fire rating for "A" labeled doors
