Simplex EE1000 Series Simplex Entry and Egress Pushbutton Lo

SKU # SI/EE1021S-EE1021S-26D

Read Review(s) | Log in to Review

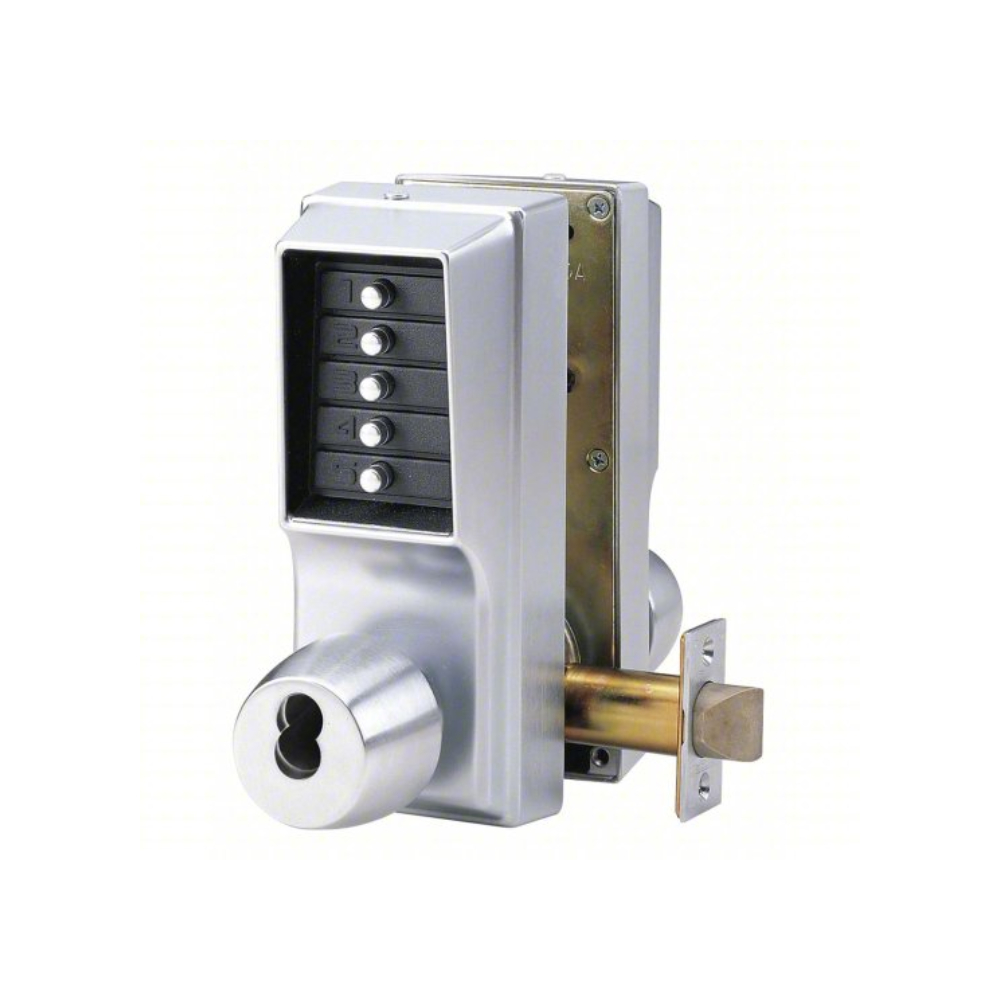

Simplex EE1000 Series Simplex Entry and Egress Pushbutton Lock

Product Features:

  • Heavy-duty cylindrical lock housing with cast front housing; unified trim plate; cast knobs
  • Vandal resistant, solid metal pushbuttons
  • Highly Water Resistant
  • Factory-handed for left hand doors; easily field reversible
  • Standard Finishes: Satin Chrome 26D (626), Antique Brass 05 (609)
  • Optional Finishes: Bright Brass 03 (605), Bright Chrome 026 (625)
  • Backset: 2 3/4" (70 mm), 2 3/8" (60 mm)
  • Latch: 1/2" (13 mm) throw latch; 3/4" (19 mm) throw latch (optional)
  • Strike: Standard strike plate; ASA strike plate
  • Fire Rating: 3-hour UL/ULC fire rating forAlabeled door
  • Door Thickness: 1-3/8" to 2-1/4" thick.
US$853.60

Description:

Description:

Kaba Access EE1021S/EE1021S-26D-41 Cylindrical Knob Lock

  • Construction: Heavy-duty cylindrical lock with cast front and back housings; cast knobs
  • Numeric Keypad: Vandal resistant, solid metal pushbuttons
  • Door Handing: Factory-handed for left-hand doors; easily field reversible
  • Backset: 2¾" (70 mm)
  • Latch: ½" (13 mm) throw latch, ¾" (19 mm) throw latch (optional)
  • Strike: Standard strike plate; ASA strike plate
  • Door Preparation: ASA 161-door preparation with additional through bore holes
  • Door Thickness: 1¾" (44 mm) to 2¼" (57 mm); modified lock for more than 2" (51) thick door (up to 2¼") available (specify when ordering)
  • Minimum Stile Recommended: 5" (127 mm)
  • Weight: 10.25 lbs. (4.6 kg)

Specifications:

Specifications:

Click Here for Simplex E1000 Data Sheet

Literature:

Literature:

Click Here for Simplex Product Brochure
