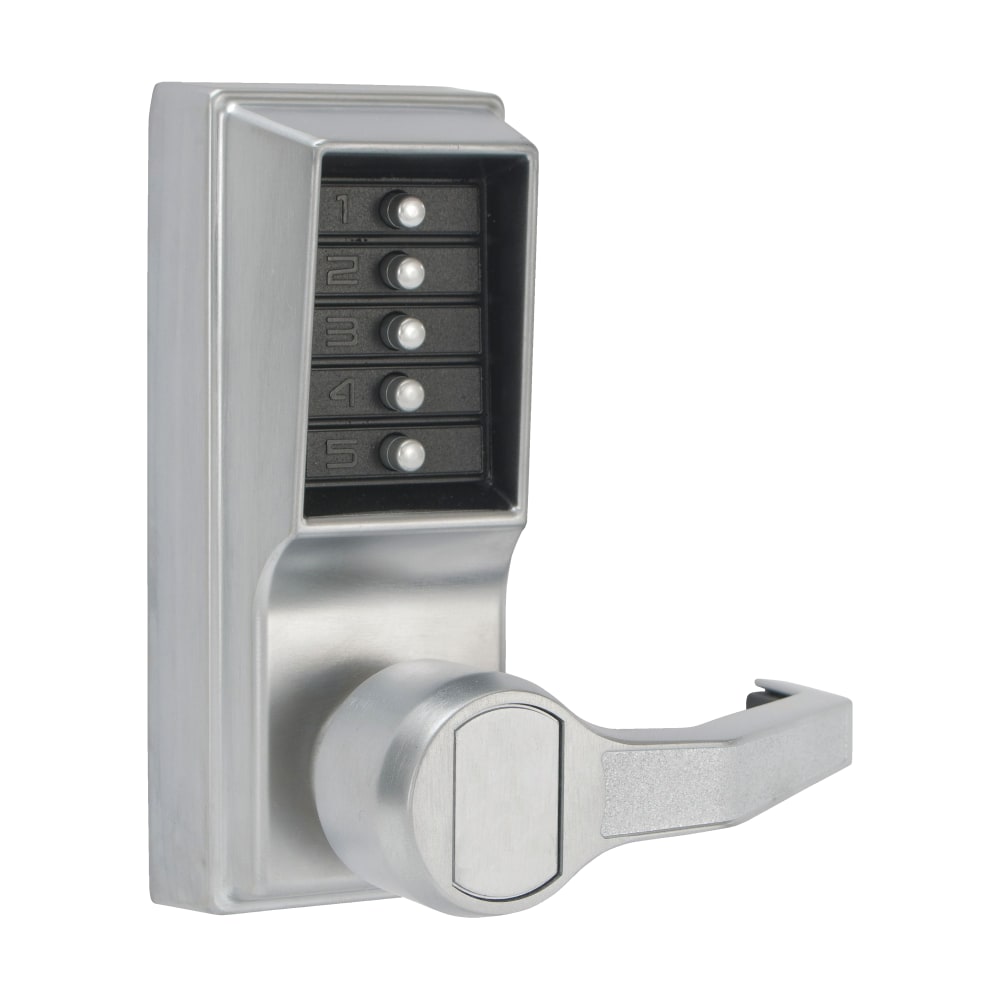

Kaba Simplex Combo Lever Lock, No Override LH

SKU # SI/LL1011-26D

Read Review(s) | Log in to Review

Kaba Simplex Combo Lever Lock, No Override LH

Features and Benefits:

  • Satin Chrome Finish
  • ADA compliant lock
  • Cylindrical lock access function with combination entry
  • Covers existing standard ASA 161 door hole
  • Factory-handed left hand or left hand reverse handing operation; not field reversible
  • Its lock is easily programmed via keypad without removing the lock from the door - Awesome
  • Single access code feature makes 'one easy-to-manage code' for all users
  • Vandal resistant hardware with solid metal pushbuttons
  • Cylindrical latch with 3-hour UL/ULC fire rating on "A" labeled doors
  • Available with no key override option
  • It easily installs on wood or metal doors
  • Minimum stile recommended: 5" (127 mm)
  • Floating face plate
  • Cylindrical throw latch: 1/2 inch (13 mm) throw latch
  • Backset: 2-3/4 inch (70 mm)
  • 3 years manufacturer warranty
US$407.68
Kaba Access
Simplex

You may also like

Description:

Description:

Kaba Simplex Combo Lever Lock, No Override LH

The Simplex LL1011-26D-41 series of Simplex Pushbutton Lock eliminate problems and costs associated with issuing, controlling and collecting keys and cards and it also provides exterior access by combination, while allowing free egress. Unican Kaba Ilco Simplex is the leader in top of the line security solutions that presents industrial strength combination lock with high quality security products for over 100 years now. For a security lock, the highly weather resistant Simplex L1000 Series earns an impressive Grade 1 rating from ANSI (American National Standards Institute) - this rating is the highest one they give out for quality. The Simplex L1000 grants entry upon successful validation of a 1 to 5 digit code that you pre-program into the lock. Being vandal protected hardware, the Simplex series of PIN based locks find widespread acceptance in high-traffic commercial, institutional, and government buildings throughout the world.

Specifications:

Specifications:

Click Here for Simplex L1000 Spec Sheet

  • No Battery: Fully mechanical lock eliminates the material and labor expense of battery replacements
  • Locking Device: Cylindrical latch with 3-hour UL/ULC fire rating on "A" labeled doors
  • Number of Codes: Single access code—one easy-to-manage code for all users
  • Programming: Lock is easily programmed via keypad without removing lock from the door
  • Handing: Factory-handed; not field reversible
  • Economical: A cost effective access control solution

Mechanical Features

  • Construction: Heavy-duty cylindrical lock housing with cast front housing, unified trim plate, and fixed ADA-compliant levers
  • Numeric Keypad: Vandal resistant, solid metal pushbuttons
  • Handing: Factory-handed; not field reversible
  • Standard Finish: Satin Chrome 26D (626))
  • Backset: 2¾" (70 mm), 2⅜" (60 mm)
  • Latch: ½" (13 mm) throw latch
  • Minimum Stile Recommended: 5" (127 mm)
  • Weight: 8.25 lbs. (3.7 kg)
  • Strike: Standard strike plate; ASA strike plate

Installation

  • Door Preparation: Easily installs on wood or metal doors. ASA 161 door preparation with additional through holes.
  • Door Thickness: 1⅜" (35 mm) to 2¼" (57 mm)—Pre-assembled to accommodate 1⅝" (41 mm) to 2" (51 mm) doors
  • Items Supplied Include: Lock assembly, installation manual, full-scale template, combination change plug and access key, and required installation hardware

Certification and Testing

  • Accessibility Standard: Americans with Disabilities Act (ADA); fixed ADA-compliant levers
  • Durability: D.O.D. Compliant 5220.22M for supplemental access control; weather resistant
  • Fire Rating: 3-hour UL/ULC fire rating for "A" labeled doors

Literature:

Literature:

Click Here for Simplex Product Brochure
