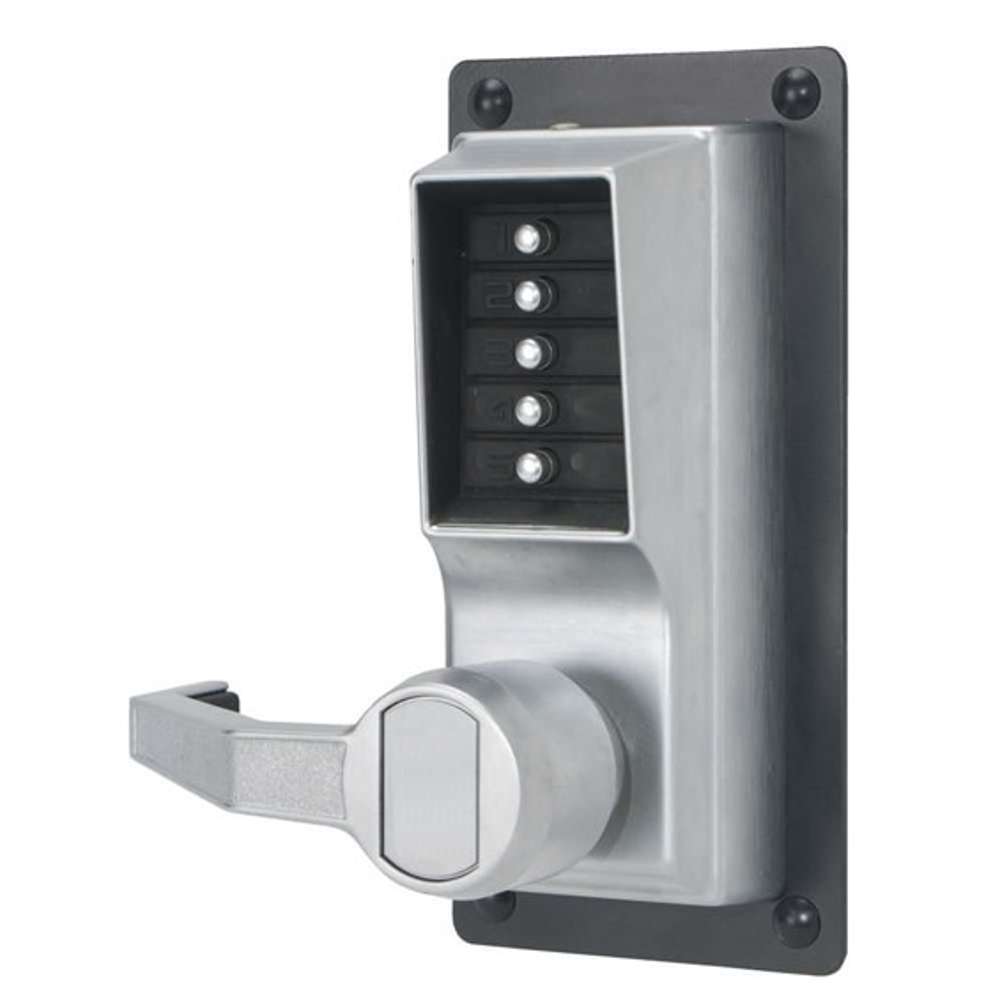

Kaba Access LLP1010-26D-41 Exit Trim Lever Lock
LP1010 - Pushbutton Exit Trim Lock with Lever by Simplex / Unican
Simplex Mechanical Pushbutton Locks eliminate problems and costs associated with issuing, controlling, and collecting keys and cards.
The Simplex LP1000 Series provides exterior access by combination, while allowing free egress with Exit Device (not supplied). This fully mechanical lock eliminates the material and labor expense of battery replacements, has a single access-code and is programmed via the keypad without removing the lock from the door.
Access Control: Mechanical pushbutton lock eliminates problems and costs associated with issuing, controlling, and collecting keys and cards. Provides exterior access by combination, while allowing free egress with Exit Device (not supplied).
No Battery: Fully mechanical lock eliminates the material and labor expense of battery replacements.
Rim Exit Device: Compatible with most leading brands of Exit Devices - see list below (Exit Device and mounting hardware not included).
Number of Codes: Single access code - one easy-to-manage code for all users.
Programming: Lock is easily programmed via keypad without removing lock from the door.
Handing: Factory-handed; not field reversible.
Economical: A cost effective access control solution.
Exit Device Compatibility:
---------------------------------------------------------------------------------------
Black & Decker (K-12) QED111/112 Detex 10/F10 Series
---------------------------------------------------------------------------------------
Cal Royal 5000/F5000 Dorma 9100, 93000
---------------------------------------------------------------------------------------
Dorex 9500PR/9500FR Dorex 8500R/8500F
---------------------------------------------------------------------------------------
Von Duprin Exit Only (EO) or Exit Only Fire (EOF) Devices: 22, 88NL, 98, 99, 9857, 9957
* Cannot be used with mortise design or vertical rod Exit Devices.
Door Thickness: 1-3/8" to 2-1/4".
Backset: 2-3/4" backset. Finish: Satin Chrome 26D (626).
Minimum Stile Requirement: 5".
Operation Modes:
- LP1010 - Combination Entry, No Key Override.
Special Order Information: For pricing on any function, keyway or finish of the Simplex LP1000 Series not found on this page please contact Taylor Security direct via e-mail (sales@taylorsecurity.com) or call us toll-free at 1-800-676-7670.
